1.源碼包結構

2.測試線程

     1.啟動mina-example下echoserver#Main

     2.啟動jconsole查看線程:

         1.NioSocketAcceptor

         ->此時查看線程->多了一個

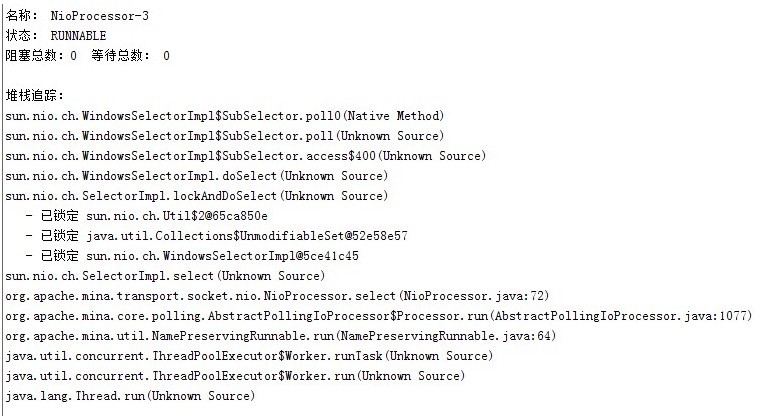

             2.NioProcessor



     Runnable為AbstractPollingIoProcessor$Processor

    4.兩個線程池來源:
          1.AbstractIoService(IoSessionConfig sessionConfig,Executor executor)
               該構造函數中判斷
               if(executor == null){
                    this.executor = Executors.newCachedThreadPool();
               }
   詳見源碼.

           2.SimpleIoProcessorPool
                其構造函數判斷同上

3.內部基本流程
     1.SocketAcceptor acceptor = new NioSocketAcceptor();

          1.初始化NioSocketAcceptor線程池 {@link AbstractIoService }
          2.初始化NioProcessor線程池  {@link SimpleIoProcessorPool }
          3. NioSocketAcceptor#init
            初始化Selector:selector = Selector.open();

     2.acceptor.bind(new InetSocketAddress(PORT));
          1.AbstractPollingIoAcceptor#bindInternal
               #startupAcceptor
                - >NioSocketAcceptor線程池執行Acceptor這個任務.

    //1.startupAcceptor啟動的時候也會判斷是否已存在Acceptor這個任務,如果不存在才會創建.
    // 2.Accetpor這個任務結束條件:所有bind的端口unbind->也會將Acceptor引用置為null.
    // 3.每個NioSocketAcceptor只有一個selector/且只對應一個Acceptor任務,即只有一個Acceptor線程.所以我們可以說Acceptor就是單線程的.(即便是一個CachedThreadPool)

    3.Acceptor#run
          1.while(selectable)
               1.selector.select

               2.#registerHandles
                   ->NioSocketAcceptor#open
                   設置socket選項并向selector注冊OP_ACCEPT事件

               3.#processHandles
                    1.NioSocketAcceptor#accept->返回NioSocketSession
                    2.SimpleIoProcessorPool#add
                         1.根據sessionId將session與pool中的某個NioProcessor綁定 {@link SimpleIoProcessorPool#getProcessor}
                         2.AbstractPollingIoProcessor#add
                         3. AbstractPollingIoProcessor#startupProcessor
                              ->NioProcessor線程池執行Processor這個任務

    // 從這段代碼看出:
        //1.Processor這個任務只會創建一次.即每一個NioProcessor對象最多擁有一個Processor
        // 2.每個NioProcessor只會向線程池提交一次Processor任務.而Processor任務是一個無限循環的任務.
        // 也可以說,每個Processor就占據著線程池的一個線程.->即每個NioProcessor對象對應線程池中的一個線程
        // 3.而session是與某個固定的NioProcessor綁定的(取模)->也就是說每個session的處理都是單線程的.(均在NioProcessor的唯一Processor線程執行)
        // 4.public NioSocketAcceptor(int processorCount)構造中可指定processor的數目,其實最終是指定CacheThreadPool中多少用于prossor的線程數目.
        //(默認:private static final int DEFAULT_SIZE = Runtime.getRuntime().availableProcessors() + 1)
         // 5.每個NioProcessor中只有一個selector.
        private void startupProcessor() {
            Processor processor = processorRef.get();

            if (processor == null) {
                processor = new Processor();

                if (processorRef.compareAndSet(null, processor)) {
                executor.execute(new NamePreservingRunnable(processor, threadName));
                }
            }

            // Just stop the select() and start it again, so that the processor
            // can be activated immediately.
            wakeup();
            }

/** *//**
     * This private class is used to accept incoming connection from
     * clients. It's an infinite loop, which can be stopped when all
     * the registered handles have been removed (unbound).
     */
    private class Acceptor implements Runnable
    {
        public void run()
        {
            int nHandles = 0;
            lastIdleCheckTime = System.currentTimeMillis();

            // Release the lock
            lock.release();

            while ( selectable )
            {
                try
                {
                    int selected = select( SELECT_TIMEOUT );

                    nHandles += registerHandles();

                    if ( nHandles == 0 )
                    {
                        try
                        {
                            lock.acquire();

                            if ( registerQueue.isEmpty() && cancelQueue.isEmpty() )
                            {
                                acceptor = null;
                                break;
                            }
                        }
                        finally
                        {
                            lock.release();
                        }
                    }

                    if ( selected > 0 )
                    {
                        processReadySessions( selectedHandles() );
                    }

                    long currentTime = System.currentTimeMillis();
                    flushSessions( currentTime );
                    nHandles -= unregisterHandles();

                    notifyIdleSessions( currentTime );
                }
                catch ( ClosedSelectorException cse )
                {
                    // If the selector has been closed, we can exit the loop
                    break;
                }
                catch ( Exception e )
                {
                    ExceptionMonitor.getInstance().exceptionCaught( e );

                    try
                    {
                        Thread.sleep( 1000 );
                    }
                    catch ( InterruptedException e1 )
                    {
                    }
                }
            }

            if ( selectable && isDisposing() )
            {
                selectable = false;
                try
                {
                    destroy();
                }
                catch ( Exception e )
                {
                    ExceptionMonitor.getInstance().exceptionCaught( e );
                }
                finally
                {
                    disposalFuture.setValue( true );
                }
            }
        }
    }


    2.Processor#run
       1.for(;;)
            1.select(SELECT_TIMEOUT)
            2.#handleNewSessions
                 1. AbstractPollingIoProcessor#addNow

                 2. AbstractPollingIoProcessor#init
                      NioProcessor#init->session.getChannel向selector注冊OP_READ事件

                3.#updateTrafficmask

                4.#process
                     //process reads/process writes

                5.#flush
                6.#nofifyIdleSessions

/** *//**
     * The main loop. This is the place in charge to poll the Selector, and to
     * process the active sessions. It's done in
     * - handle the newly created sessions
     * -
     */
    private class Processor implements Runnable {
        public void run() {
            assert (processorRef.get() == this);

            int nSessions = 0;
            lastIdleCheckTime = System.currentTimeMillis();

            for (;;) {
                try {
                    // This select has a timeout so that we can manage
                    // idle session when we get out of the select every
                    // second. (note : this is a hack to avoid creating
                    // a dedicated thread).
                    long t0 = System.currentTimeMillis();
                    int selected = select(SELECT_TIMEOUT);
                    long t1 = System.currentTimeMillis();
                    long delta = (t1 - t0);

                    if ((selected == 0) && !wakeupCalled.get() && (delta < 100)) {
                        // Last chance : the select() may have been
                        // interrupted because we have had an closed channel.
                        if (isBrokenConnection()) {
                            LOG.warn("Broken connection");

                            // we can reselect immediately
                            // set back the flag to false
                            wakeupCalled.getAndSet(false);

                            continue;
                        } else {
                            LOG.warn("Create a new selector. Selected is 0, delta = " + (t1 - t0));
                            // Ok, we are hit by the nasty epoll
                            // spinning.
                            // Basically, there is a race condition
                            // which causes a closing file descriptor not to be
                            // considered as available as a selected channel, but
                            // it stopped the select. The next time we will
                            // call select(), it will exit immediately for the same
                            // reason, and do so forever, consuming 100%
                            // CPU.
                            // We have to destroy the selector, and
                            // register all the socket on a new one.
                            registerNewSelector();
                        }

                        // Set back the flag to false
                        wakeupCalled.getAndSet(false);

                        // and continue the loop
                        continue;
                    }

                    // Manage newly created session first
                    nSessions += handleNewSessions();

                    updateTrafficMask();

                    // Now, if we have had some incoming or outgoing events,
                    // deal with them
                    if (selected > 0) {
                        //LOG.debug("Processing "); // This log hurts one of the MDCFilter test
                        process();
                    }

                    // Write the pending requests
                    long currentTime = System.currentTimeMillis();
                    flush(currentTime);

                    // And manage removed sessions
                    nSessions -= removeSessions();

                    // Last, not least, send Idle events to the idle sessions
                    notifyIdleSessions(currentTime);

                    // Get a chance to exit the infinite loop if there are no
                    // more sessions on this Processor
                    if (nSessions == 0) {
                        processorRef.set(null);

                        if (newSessions.isEmpty() && isSelectorEmpty()) {
                            // newSessions.add() precedes startupProcessor
                            assert (processorRef.get() != this);
                            break;
                        }

                        assert (processorRef.get() != this);

                        if (!processorRef.compareAndSet(null, this)) {
                            // startupProcessor won race, so must exit processor
                            assert (processorRef.get() != this);
                            break;
                        }

                        assert (processorRef.get() == this);
                    }

                    // Disconnect all sessions immediately if disposal has been
                    // requested so that we exit this loop eventually.
                    if (isDisposing()) {
                        for (Iterator<S> i = allSessions(); i.hasNext();) {
                            scheduleRemove(i.next());
                        }

                        wakeup();
                    }
                } catch (ClosedSelectorException cse) {
                    // If the selector has been closed, we can exit the loop
                    break;
                } catch (Throwable t) {
                    ExceptionMonitor.getInstance().exceptionCaught(t);

                    try {
                        Thread.sleep(1000);
                    } catch (InterruptedException e1) {
                        ExceptionMonitor.getInstance().exceptionCaught(e1);
                    }
                }
            }

            try {
                synchronized (disposalLock) {
                    if (disposing) {
                        doDispose();
                    }
                }
            } catch (Throwable t) {
                ExceptionMonitor.getInstance().exceptionCaught(t);
            } finally {
                disposalFuture.setValue(true);
            }
        }
    }


4.相關類圖關系

    1.IoService關系類圖

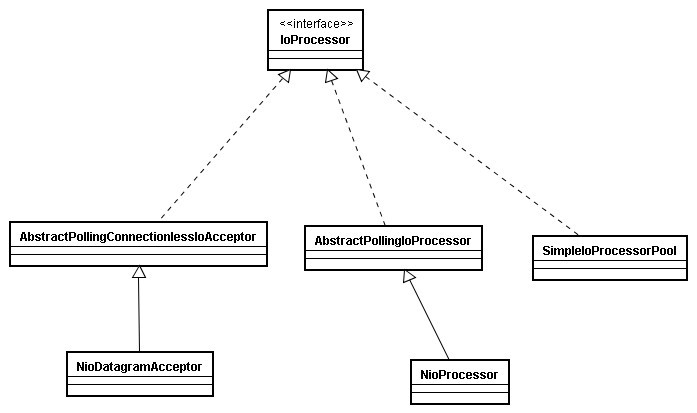

    2.IoProcessor關系類圖

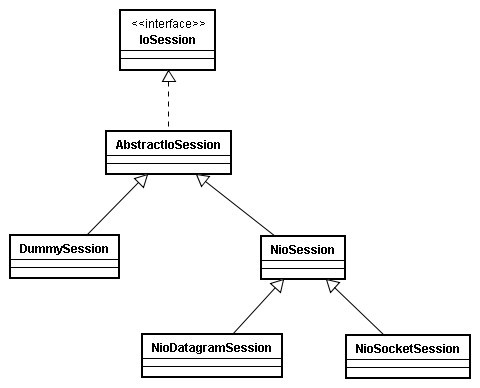

    3.IoSession關系類圖



 5.總結:
    本篇只是引入篇，著重介紹了mina2內部的兩個acceptor線程池和processor線程池.關于nio相關請看我之前的文章.
