Hibernate學習筆記
關于如何配置請參看:Hibernate學習筆記(一)--用MyEclipse 6.5+MySQL 5.0的環境跑起來
準備:建表
用MySQL在名為STMS數據庫中建表personx
src/org.lxh.hibernate2.Personx.java
1
package org.lxh.hibernate2;
2
3
/** *//**
4
* @author ∪∩BUG E-mail: tidelgl@163.com
5 * @version Aug 31, 2008 9:56:51 AM @ POJO類
6
*/
7
8//實現復合主鍵應滿足的要求：１.本類必須實現Serializable 接口
9public class Personx implements java.io.Serializable
{
10
11 private PersonxId id;
12 private int age;
13
14
public Personx() {
15
}
16
17 public PersonxId getId() {
18 return this.id;
19 }
20
21 public void setId(PersonxId id) {
22 this.id = id;
23 }
24
25 public int getAge() {
26 return age;
27 }
28
29 public void setAge(int age) {
30 this.age = age;
31 }
32}
通過Hibernate反向工程建立personx表與Personx類的映射

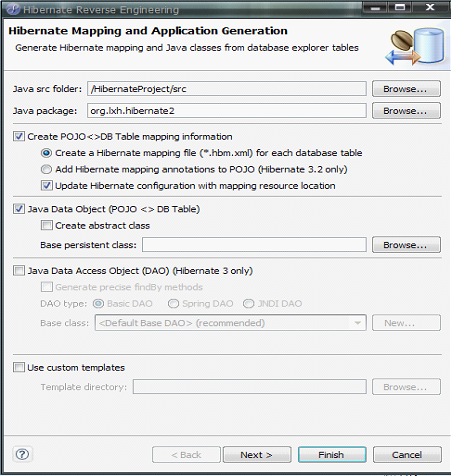

首先調出DB Browser視圖(Windows—view show—other—MyEclipse datebase—DB Browser)—展開MySQL_localhost至表person—右鍵表personx—Hibernate Reverse Engineering
src/org.lxh.hibernate2.PersonxId.java
1package org.lxh.hibernate2;
2
3import org.apache.commons.lang.builder.EqualsBuilder;
4import org.apache.commons.lang.builder.HashCodeBuilder;
5import org.lxh.hibernate1.Personx;
6
7/** *//**
8 * @author ∪∩BUG E-mail: tidelgl@163.com
9 * @version Aug 31, 2008 9:56:51 AM @ 復合主鍵類
10 */
11//實現復合主鍵應滿足的要求：
12//１.本類必須實現Serializable 接口
13//2.復寫equals(比較對象)和hashCode(取得Hash編碼)方法(可用commons-lang-2.4.jar來復寫,
14//下載:http://apache.mirror.phpchina.com/commons/lang/binaries/commons-lang-2.4-bin.zip)
15public class PersonxId implements java.io.Serializable {
16
17 // Fields
18
19 private String name;
20 private String phone;
21
22 // Constructors
23
24 /** *//** default constructor */
25 public PersonxId() {
26 }
27
28 /** *//** full constructor */
29 public PersonxId(String name, String phone) {
30 this.name = name;
31 this.phone = phone;
32 }
33
34 // Property accessors
35
36 public String getName() {
37 return this.name;
38 }
39
40 public void setName(String name) {
41 this.name = name;
42 }
43
44 public String getPhone() {
45 return this.phone;
46 }
47
48 public void setPhone(String phone) {
49 this.phone = phone;
50 }
51
52 // 修改復寫equals的方法
53 public boolean equals(Object obj) {
54 if (this == obj) {
55 return true;
56 }
57
58 // 如果不是Personx的實例
59 if (!(obj instanceof Personx)) {
60 return false;
61 }
62 PersonxId p = (PersonxId) obj;
63 return new EqualsBuilder().append(this.name, p.getName()).append(
64 this.phone, p.getPhone()).isEquals();
65 }
66
67 //修改復寫hashCode的方法
68 public int hashCode() {
69 return new HashCodeBuilder().append(this.name).append(
70 this.phone).toHashCode();
71 }
72
73}
src/org.lxh.hibernate2.PersonxOperate.java
1package org.lxh.hibernate2;
2
3
4import org.hibernate.Session;
5import org.hibernate.cfg.Configuration;
6
7/** *//**
8 * @author ∪∩BUG E-mail: tidelgl@163.com
9 * @version Aug 31, 2008 9:56:51 AM
10 * @ 具體操作Hibernate的類
11 */
12public class PersonxOperate {
13 // 在Hibernate中所有的操作都是通過Session來完成
14 private Session session;
15
16 // Session 是一個接口,必須實例化
17 // 在構造方法中實例實化Session對象
18 public PersonxOperate() {
19 // 找到Hibernae配置文件,從全局文件中取出SessionFactory,從sessionFactory中取出一個session
20 this.session = new Configuration().configure().buildSessionFactory()
21 .openSession();
22 }
23
24 // 所有的操作都是通過Session進行
25 // (1)增加操作
26 public void insert(Personx p) {
27 // 將數據存放到數據庫中
28 this.session.save(p);
29
30 // 事務提交
31 this.session.beginTransaction().commit();
32 }
33}
34
src/org.lxh.hibernate2.Test.java
1package org.lxh.hibernate2;
2
3
4
5/** *//**
6 * @author ∪∩BUG E-mail: tidelgl@163.com
7 * @version Aug 31, 2008 9:54:16 AM
8 * @測試類
9 */
10public class Test {
11
12 /** *//**
13 * @param args
14 */
15 public static void main(String[] args) {
16 Personx p = new Personx();
17 PersonxId pk = new PersonxId();
18
19 //name,phone在表中是主鍵當插入值為空時將無法插入
20// p.setAge(4);
21// p.setName("Hibernate");
22// p.setPhone("123456");
23
24 p.setAge(2);
25 pk.setName("MySQL");
26 pk.setPhone("87654");
27 p.setId(pk);
28 PersonxOperate po = new PersonxOperate();
29 po.insert(p);
30 }
31
32}
33
src/org.lxh.hibernate2.Personx.hbm.xml
1xml version="1.0" encoding="utf-8"?>
2DOCTYPE hibernate-mapping PUBLIC "-//Hibernate/Hibernate Mapping DTD 3.0//EN"
3"http://hibernate.sourceforge.net/hibernate-mapping-3.0.dtd">
4
7<hibernate-mapping>
8 <class name="org.lxh.hibernate2.Personx" table="personx"
9 catalog="stms">
10
14 <composite-id name="id" class="org.lxh.hibernate2.PersonxId">
15 <key-property name="name" type="java.lang.String">
16 <column name="name" length="100" />
17 key-property>
18 <key-property name="phone" type="java.lang.String">
19 <column name="phone" length="50" />
20 key-property>
21 composite-id>
22 <property name="age" type="java.lang.Integer">
23 <column name="age" />
24 property>
25 class>
26hibernate-mapping>
27
src/hibernate.cfg.xml
1xml version='1.0' encoding='UTF-8'?>
2DOCTYPE hibernate-configuration PUBLIC
3 "-//Hibernate/Hibernate Configuration DTD 3.0//EN"
4 "http://hibernate.sourceforge.net/hibernate-configuration-3.0.dtd">
5
6
7<hibernate-configuration>
8
9<session-factory>
10 <property name="connection.username">rootproperty>
11 <property name="connection.url">
12 jdbc:mysql://localhost:3306/STMS
13 property>
14 <property name="dialect">
15 org.hibernate.dialect.MySQLDialect
16 property>
17 <property name="myeclipse.connection.profile">
18 MySql_localhost
19 property>
20 <property name="connection.password">rootproperty>
21 <property name="connection.driver_class">
22 com.mysql.jdbc.Driver
23 property>
24 <property name="show_sql">trueproperty>
25
26
27 <mapping resource="org/lxh/hibernate2/Personx.hbm.xml" />
28
29session-factory>
30
31hibernate-configuration>
例子結構:
