前面分析了tomcat啟動，見Tomcat啟動源代碼分析。啟動分析的后面已經涉及到了對客戶端連接進來的socket的處理的，那么今天的文章就沿著上面的文章寫下去吧。

一、Connector處理請求
MasterSlaveWorkerThread調用PoolTcpEndpoint進行處理：

// Process the request from this socket
endpoint.processSocket(socket, con, threadData);

thereaDate是一個對象數組Object[] threadData，con是TcpConnection con = new TcpConnection()。

PoolTcpEndpoint進行處理：

    void processSocket(Socket s, TcpConnection con, Object[] threadData) {
        // Process the connection
        int step = 1;
        try {

            // 1: Set socket options: timeout, linger, etc
            setSocketOptions(s);

            // 2: SSL handshake
            step = 2;
            if (getServerSocketFactory() != null) {
                getServerSocketFactory().handshake(s);
            }

            // 3: Process the connection
            step = 3;
            con.setEndpoint(this);
            con.setSocket(s);
            getConnectionHandler().processConnection(con, threadData);

        } catch (SocketException se) {
            log.debug(sm.getString("endpoint.err.socket", s.getInetAddress()),
                    se);
            // Try to close the socket
            try {
                s.close();
            } catch (IOException e) {
            }
        } catch (Throwable t) {
            if (step == 2) {
                if (log.isDebugEnabled()) {
                    log.debug(sm.getString("endpoint.err.handshake"), t);
                }
            } else {
                log.error(sm.getString("endpoint.err.unexpected"), t);
            }
            // Try to close the socket
            try {
                s.close();
            } catch (IOException e) {
            }
        } finally {
            if (con != null) {
                con.recycle();
            }
        }
    }

最后交由connectionHandler即Http11ConnectionHandler進行處理：

public void processConnection(TcpConnection connection,
                      Object thData[]) {
            Socket socket=null;
            Http11Processor  processor=null;
            try {
                processor=(Http11Processor)thData[Http11BaseProtocol.THREAD_DATA_PROCESSOR];

                if (processor instanceof ActionHook) {
                    ((ActionHook) processor).action(ActionCode.ACTION_START, null);
                }
                socket=connection.getSocket();

                InputStream in = socket.getInputStream();
                OutputStream out = socket.getOutputStream();

                if( proto.secure ) {
                    SSLSupport sslSupport=null;
                    if(proto.sslImplementation != null)
                        sslSupport = proto.sslImplementation.getSSLSupport(socket);
                    processor.setSSLSupport(sslSupport);
                } else {
                    processor.setSSLSupport( null );
                }
                processor.setSocket( socket );

                processor.process(in, out);

                // If unread input arrives after the shutdownInput() call
                // below and before or during the socket.close(), an error
                // may be reported to the client.  To help troubleshoot this
                // type of error, provide a configurable delay to give the
                // unread input time to arrive so it can be successfully read
                // and discarded by shutdownInput().
                if( proto.socketCloseDelay >= 0 ) {
                    try {
                        Thread.sleep(proto.socketCloseDelay);
                    } catch (InterruptedException ie) { /* ignore */ }
                }

                TcpConnection.shutdownInput( socket );
            } catch(java.net.SocketException e) {
                // SocketExceptions are normal
                Http11BaseProtocol.log.debug
                    (sm.getString
                     ("http11protocol.proto.socketexception.debug"), e);
            } catch (IOException e) {
                // IOExceptions are normal
                Http11BaseProtocol.log.debug
                    (sm.getString
                     ("http11protocol.proto.ioexception.debug"), e);
            }
            // Future developers: if you discover any other
            // rare-but-nonfatal exceptions, catch them here, and log as
            // above.
            catch (Throwable e) {
                // any other exception or error is odd. Here we log it
                // with "ERROR" level, so it will show up even on
                // less-than-verbose logs.
                Http11BaseProtocol.log.error
                    (sm.getString("http11protocol.proto.error"), e);
            } finally {
                //       if(proto.adapter != null) proto.adapter.recycle();
                //                processor.recycle();

                if (processor instanceof ActionHook) {
                    ((ActionHook) processor).action(ActionCode.ACTION_STOP, null);
                }
                // recycle kernel sockets ASAP
                try { if (socket != null) socket.close (); }
                catch (IOException e) { /* ignore */ }
            }
        }
    }

Http11Processor進行處理，這里是比較細節的東西：選取重要的代碼觀摩一下：

inputBuffer.parseRequestLine();

inputBuffer.parseHeaders();

adapter.service(request, response);

上面第一條就是處理請求行，一般如下：

POST /loan/control/customer HTTP/1.0

獲取請求方法，請求的URI和協議名稱及版本。

第二條很明顯就是處理請求的報頭，詳見Http 協議頭基礎。

最后是交給Adapter進行處理。這個Adapter是CoyoteAdapter,CoyotConnector初始化的時候設置的。見上次文章中初始化CoyotConnector部分。

CoyoteAdapter的service方法：

    /**
     * Service method.
     */
    public void service(Request req, Response res)
        throws Exception {

        CoyoteRequest request = (CoyoteRequest) req.getNote(ADAPTER_NOTES);
        CoyoteResponse response = (CoyoteResponse) res.getNote(ADAPTER_NOTES);

        if (request == null) {

            // Create objects
            request = (CoyoteRequest) connector.createRequest();
            request.setCoyoteRequest(req);
            response = (CoyoteResponse) connector.createResponse();
            response.setCoyoteResponse(res);

            // Link objects
            request.setResponse(response);
            response.setRequest(request);

            // Set as notes
            req.setNote(ADAPTER_NOTES, request);
            res.setNote(ADAPTER_NOTES, response);

            // Set query string encoding
            req.getParameters().setQueryStringEncoding
                (connector.getURIEncoding());

        }

        try {
            // Parse and set Catalina and configuration specific
            // request parameters
            postParseRequest(req, request, res, response);
            // Calling the container
            connector.getContainer().invoke(request, response);
            response.finishResponse();

            req.action( ActionCode.ACTION_POST_REQUEST , null);
        } catch (IOException e) {
            ;
        } catch (Throwable t) {
            log(sm.getString("coyoteAdapter.service"), t);
        } finally {
            // Recycle the wrapper request and response
            request.recycle();
            response.recycle();
        }

    }

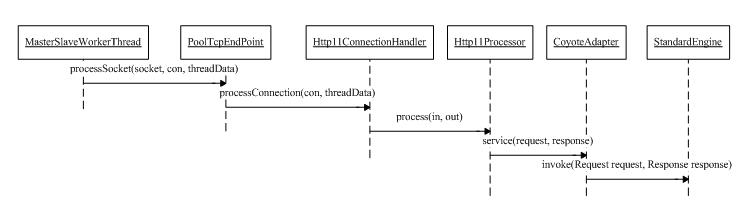

調用容器的invoke方法，這個容器就是StandardEngine。現在連接器已經將request和response對象準備好，交由容器處理了。上面的處理主要是Connector處理，流程大致如下：



下面研究容器是怎么處理請求的。

二、容器處理請求
   上面說到StandardEngine接收到請求，invoke方法調用。方法非常簡單：

    public void invoke(Request request, Response response)
        throws IOException, ServletException {

        pipeline.invoke(request, response);

    }

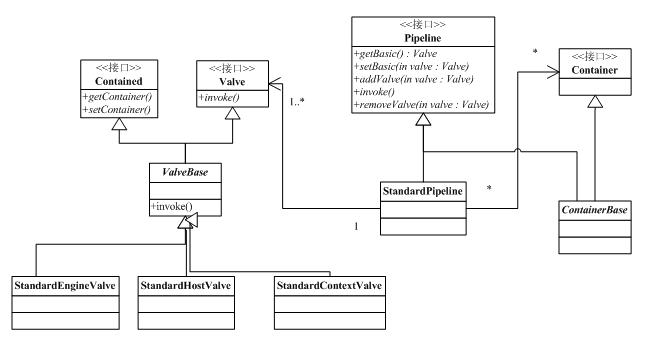

容器并不直接處理，而是交給一個pipeline的東東，這個pipeline里面會放置一些vavle，也就是說，請求沿著pipeline傳遞下去并且vavle對其進行相關的處理。這個valve有簡單的，也有復雜的，簡單的就是起個接力棒的作用，復雜的可以對請求做一些處理，比如說日志等，valve還可以自定義，查看server.xml配置文件就知道了。相關類圖如下：



具體可以看一下幾個Valve的功能：

StandardEngineValve：

public void invoke(Request request, Response response,
                       ValveContext valveContext)
        throws IOException, ServletException {

        // Validate the request and response object types
        if (!(request.getRequest() instanceof HttpServletRequest) ||
            !(response.getResponse() instanceof HttpServletResponse)) {
            return;     // NOTE - Not much else we can do generically
        }

        // Validate that any HTTP/1.1 request included a host header
        HttpServletRequest hrequest = (HttpServletRequest) request;
        if ("HTTP/1.1".equals(hrequest.getProtocol()) &&
            (hrequest.getServerName() == null)) {
            ((HttpServletResponse) response.getResponse()).sendError
                (HttpServletResponse.SC_BAD_REQUEST,
                 sm.getString("standardEngine.noHostHeader",
                              request.getRequest().getServerName()));
            return;
        }

        // Select the Host to be used for this Request
        StandardEngine engine = (StandardEngine) getContainer();
        Host host = (Host) engine.map(request, true);
        if (host == null) {
            ((HttpServletResponse) response.getResponse()).sendError
                (HttpServletResponse.SC_BAD_REQUEST,
                 sm.getString("standardEngine.noHost",
                              request.getRequest().getServerName()));
            return;
        }

        // Ask this Host to process this request
        host.invoke(request, response);

    }

這個valve驗證對象實例的正確性，選擇Host并交由其處理。

StandardHostValve：

public void invoke(Request request, Response response,
                       ValveContext valveContext)
        throws IOException, ServletException {

        // Validate the request and response object types
        if (!(request.getRequest() instanceof HttpServletRequest) ||
            !(response.getResponse() instanceof HttpServletResponse)) {
            return;     // NOTE - Not much else we can do generically
        }

        // Select the Context to be used for this Request
        StandardHost host = (StandardHost) getContainer();
        Context context = (Context) host.map(request, true);
        if (context == null) {
            ((HttpServletResponse) response.getResponse()).sendError
                (HttpServletResponse.SC_INTERNAL_SERVER_ERROR,
                 sm.getString("standardHost.noContext"));
            return;
        }

        // Bind the context CL to the current thread
        Thread.currentThread().setContextClassLoader
            (context.getLoader().getClassLoader());

        // Update the session last access time for our session (if any)
        HttpServletRequest hreq = (HttpServletRequest) request.getRequest();
        String sessionId = hreq.getRequestedSessionId();
        if (sessionId != null) {
            Manager manager = context.getManager();
            if (manager != null) {
                Session session = manager.findSession(sessionId);
                if ((session != null) && session.isValid())
                    session.access();
            }
        }

        // Ask this Context to process this request
        context.invoke(request, response);

        Thread.currentThread().setContextClassLoader
            (StandardHostValve.class.getClassLoader());

    }

Host的vavle也是先判斷對象實例，然后選擇相應的Context，查看是否有session信息并更新其最后獲取時間（tomcat的session研究放在后面，東西太多了），最后才調用context的invoke方法。StandardContext首先check context是否在reload，如果reload結束或者沒有reload那么就和上面幾個容器一樣，通過valve處理：

StandardContextValve：

    public void invoke(Request request, Response response,
                       ValveContext valveContext)
        throws IOException, ServletException {

        // Validate the request and response object types
        if (!(request.getRequest() instanceof HttpServletRequest) ||
            !(response.getResponse() instanceof HttpServletResponse)) {
            return;     // NOTE - Not much else we can do generically
        }

        // Disallow any direct access to resources under WEB-INF or META-INF
        HttpServletRequest hreq = (HttpServletRequest) request.getRequest();
        String contextPath = hreq.getContextPath();
        String requestURI = ((HttpRequest) request).getDecodedRequestURI();
        String relativeURI =
            requestURI.substring(contextPath.length()).toUpperCase();
        if (relativeURI.equals("/META-INF") ||
            relativeURI.equals("/WEB-INF") ||
            relativeURI.startsWith("/META-INF/") ||
            relativeURI.startsWith("/WEB-INF/")) {
            notFound(requestURI, (HttpServletResponse) response.getResponse());
            return;
        }

        Context context = (Context) getContainer();

        // Select the Wrapper to be used for this Request
        Wrapper wrapper = null;
        try {
            wrapper = (Wrapper) context.map(request, true);
        } catch (IllegalArgumentException e) {
            badRequest(requestURI,
                       (HttpServletResponse) response.getResponse());
            return;
        }
        if (wrapper == null) {
            notFound(requestURI, (HttpServletResponse) response.getResponse());
            return;
        }

        // Ask this Wrapper to process this Request
        response.setContext(context);

        wrapper.invoke(request, response);

    }

常規檢查以后是安全請求檢查，然后得到一個wrapper，這個wrapper是啥呢？這就得StandardContextMapper，它的map方法大家可以研究一下，其實就是通過請求路徑查找相應class的過程，查找的優先級一目了然，首先是精確匹配，然后是前綴匹配，擴展匹配最后是默認匹配。Wrapper其實就是封裝了一個servlet。其valve類StandardWrapperValve的invoke方法有點長，大致功能如下：實例檢查，可獲得性檢查，獲取servlet實例，F(xiàn)ilter和Servlet執行。這個時候就會調用servlet的service方法，交給我們自定義的servlet進行實際的業務處理。
