Install:
http://www.graphviz.org/Download_linux_rhel.phpDocument:
http://www.graphviz.org/Documentation.phpExample:
$ cat cluster.dot
digraph G {
subgraph cluster_0 {
style=filled;
color=lightgrey;
node [style=filled,color=white];
a0 -> a1 -> a2 -> a3;
label = "process #1";
}
subgraph cluster_1 {
node [style=filled];
b0 -> b1 -> b2 -> b3;
label = "process #2";
color=blue
}
start -> a0;
start -> b0;
a1 -> b3;
b2 -> a3;
a3 -> a0;
a3 -> end;
b3 -> end;
start [shape=Mdiamond];
end [shape=Msquare];
}

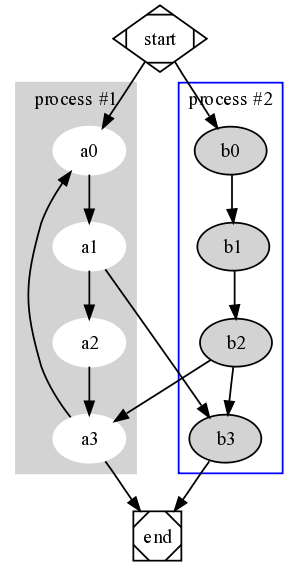

$ dot -Tpng cluster.dot -o cluster.png
$ gnome-open cluster.png
More examples:
http://www.graphviz.org/Gallery.php
