          GEF的默認Connection只是一根直線但是在實際運用中,用到了不同的線型.
          你只要在相應的Connection Edit Part里面的Figure里面添加一個Router.
           keyFigure.setConnectionRouter(new FKRouter());

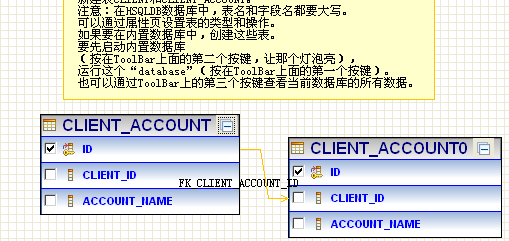

          我這里產生的效果是:


          代碼如下:

          在GEF里面自帶一些線型:
          public class FKRouter extends AbstractRouter {


          /**
               * Qiang.Zhang.Adolf@gmail.com FKRouter constructor comment.

          */

          public FKRouter() {
              }


          private void processPositions(Ray start, Ray end, Connection conn) {

          int i = 1;
                  PointList points
          = new PointList();
                  points.addPoint(
          new Point(start.x, start.y));
                  Point p
          = new Point(00);

          if (start.x == end.x || start.x > end.x && Math.abs(start.x - end.x) > 40) {
                      i
          = -1;
                  }
                  p.x
          = start.x + i * 20;
                  p.y
          = start.y;
                  points.addPoint(p);


          if (Math.abs(start.x - end.x) < 40) {
                      i
          = i * -1;
                  }
                  p
          = new Point(00);
                  p.x
          = end.x - i * 20;
                  p.y
          = end.y;
                  points.addPoint(p);

                  points.addPoint(
          new Point(end.x, end.y));
                  conn.setPoints(points);
              }


          /**
               *
          @see ConnectionRouter#route(Connection)

          */

          public void route(Connection conn) {

          if ((conn.getSourceAnchor() == null|| (conn.getTargetAnchor() == null))

          return;
                  Point startPoint
          = getStartPoint(conn);
                  conn.translateToRelative(startPoint);
                  Point endPoint
          = getEndPoint(conn);
                  conn.translateToRelative(endPoint);

                  Ray start
          = new Ray(startPoint);
                  Ray end
          = new Ray(endPoint);

                  processPositions(start, end, conn);
              }

          }
          BendpointConnectionRouter這個是折線。
          ManhattanConnectionRouter垂直水平線。




          Dengues論壇(http://groups.google.com/group/dengues/),一個很好的Eclipse開發者樂園.
