二。偽零拷貝(zero copy)方式文件下載示范

OutputStream out = response.getOutputStream();
WritableByteChannel outChannel = Channels.newChannel(out);

public static WritableByteChannel newChannel(final OutputStream out) {
 if (out == null) {
     throw new NullPointerException();
 }

        if (out instanceof FileOutputStream &&
     FileOutputStream.class.equals(out.getClass())) {
                return ((FileOutputStream)out).getChannel();
        }

 return new WritableByteChannelImpl(out);
    }

private static class WritableByteChannelImpl
        extends AbstractInterruptibleChannel // Not really interruptible
        implements WritableByteChannel
    {
        OutputStream out;
        private static final int TRANSFER_SIZE = 8192;
        private byte buf[] = new byte[0];
        private boolean open = true;
        private Object writeLock = new Object();

        WritableByteChannelImpl(OutputStream out) {
            this.out = out;
        }

        public int write(ByteBuffer src) throws IOException {
            int len = src.remaining();
            int totalWritten = 0;
            synchronized (writeLock) {
                while (totalWritten < len) {
                    int bytesToWrite = Math.min((len - totalWritten),
                                                TRANSFER_SIZE);
                    if (buf.length < bytesToWrite)
                        buf = new byte[bytesToWrite];
                    src.get(buf, 0, bytesToWrite);
                    try {
                        begin();
                        out.write(buf, 0, bytesToWrite);
                    } finally {
                        end(bytesToWrite > 0);
                    }
      totalWritten += bytesToWrite;
                }
                return totalWritten;
            }
        }

        protected void implCloseChannel() throws IOException {
            out.close();
            open = false;
        }
    }

不過那是一個PHP版本，我下載到本地PHP但無法部署成功；還好有一個Retwis-RB示范，還提供一個在線版，試用之后，再下載源代碼，RUBY + Sinatra MVC結構，看的流口水，代碼那般簡潔。

為體驗Redis，同時也為對比Ruby代碼，因此誕生了Retwis-JAVA，Retwis-RB的山寨版，因此其邏輯和HTML資源一致，再次表示對原作者Dan Lucraft的感謝。

Retwis-JAVA，基于Servlet 3.0 + UrlRewrite + Freemarker + Jedis。示范運行在Tomcat 7中，redis為最新的2.22版本，jedis為redis的java客戶端操作框架。在Servlet 3.0規范中，對Url映射處理依然沒有進步，因此只能使用UrlRewrite框架讓部分url看起來友好一些。另外，項目沒有使用IOC容器框架，沒有使用MVC框架，代碼量稍微多些，代碼相對耦合一些。若使用Struts2 + Spring 代碼量會少一些。

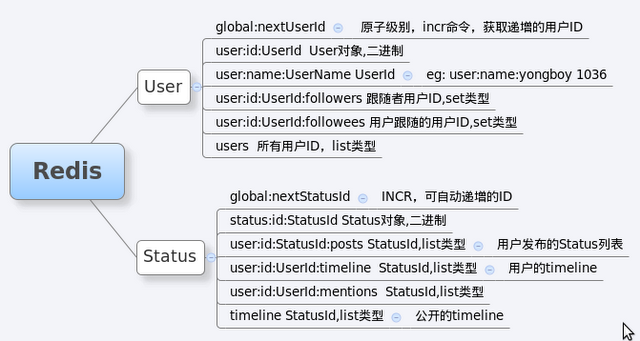

對涉及到的redis存儲結構，大致如下：

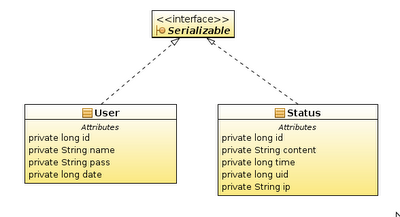

涉及到的兩個對象很簡單：

序列化后以二進制數據保存到redis中：

獲取用戶的timeline時，redis的LRANGE命令提供對list類型數據提供分頁操作：

很顯然，LRANGE取出了Status對象的ID，然后我們需要再次根據ID獲取對應的Status對象二進制數據，然后反序列化：

以上使用JDK內置的序列化支持；更多序列化，可參考hessian、google protobuf等序列化框架，后者提供業界更為成熟的跨平臺、更為高效的序列化方案。更多代碼請參見附件。

一些總結和思考：

1. 不僅僅是緩存，替代SQL數據庫已完全成為可能，更高效，更經濟；雖然只是打開了一扇小的窗戶，但說不準以后人們會把大門打開。
2. 實際環境中，可能最佳方式為SQL + NOSQL配合使用，互相彌補不足；還好，redis指令不算多，可速查，簡單易記。
3. JAVA和RUBY代碼相比，有些重

另：

在線版，請參考 http://retwisrb.danlucraft.com/。那個誰誰，要運行范例，保證redis運行才行。

Retwis-JAVA下載

參考資料：

Writing a simple Twitter clone with PHP and Redis

https://github.com/xetorthio/jedis

http://redis.io/commands

若一個Servlet對應多個URL映射，那么將會生成一個還是多個Servlet實例呢？

最好的辦法就是動手體驗一下

@WebServlet({ "/demoServlet1", "/demoServlet2" })

public class DemoServlet extends HttpServlet {

private static final long serialVersionUID = 1L;



protected void doGet(HttpServletRequest request,

HttpServletResponse response) throws ServletException, IOException {

PrintWriter out = response.getWriter();

out.println(request.getServletPath() + "[" + this + "]");

out.flush();

out.close();

}

}

輸出結果：

/demoServlet1[com.learn.servlet3.thread.DemoServlet@1320a41]
/demoServlet2[com.learn.servlet3.thread.DemoServlet@9abce9]

輸出結果可以看到映射/demoServlet1和/demoServlet2對應Servlet實例是不同的。

結果證明：Servlet將為每一個URL映射生成一個實例;一個Servlet可能存在多個示例，但每一個實例都會對應不同的URL映射。

下面討論單個Servlet、多線程情況下保證數據線程同步的幾個方法。

1. synchronized：代碼塊，方法
   大家都會使用的方式，不用詳細介紹了。
   建議優先選擇修飾方法。
2. volatile
   輕量級的鎖，可以保證多線程情況單線程讀取所修飾變量時將會強制從共享內存中讀取最新值，但賦值操作并非原子性。
   一個具有簡單計數功能Servlet示范：


   /**

       * 使用Volatile作為輕量級鎖作為計數器

       *

       * @author yongboy

       * @date 2011-3-12

       * @version 1.0

       */

       @WebServlet("/volatileCountDemo")

       public class VolatileCountServlet extends HttpServlet {

       private static final long serialVersionUID = 1L;



       private volatile int num = 0;



       protected void doGet(HttpServletRequest request,

       HttpServletResponse response) throws ServletException, IOException {

       addOne();

       response.getWriter().write("now access num : " + getNum());

       }



       /**

       * 讀取開銷低

       */

       private int getNum() {

       return num;

       }



       /**

       * 其寫入為非線程安全的，賦值操作開銷高

       */

       private synchronized void addOne() {

       num ++;

       }

       }



   我們在為volatile修飾屬性賦值時，還是加把鎖的。
3. ThreadLocal
   可以保證每一個線程都可以獨享一份變量副本，每個線程可以獨立改變副本，不會影響到其它線程。
   這里假設多線程環境一個可能落顯無聊的示范，初始化一個計數，然后循環輸出：

   @WebServlet("/threadLocalServlet")

       public class ThreadLocalServlet extends HttpServlet {

       private static final long serialVersionUID = 1L;



       private static ThreadLocal threadLocal = new ThreadLocal() {

       @Override

       protected Integer initialValue() {

       return 0;

       }

       };



       protected void doGet(HttpServletRequest request,

       HttpServletResponse response) throws ServletException, IOException {

       response.setHeader("Connection", "Keep-Alive");



       PrintWriter out = response.getWriter();

       out.println("start... "  + " [" + Thread.currentThread() + "]");

       out.flush();



       for (int i = 0; i < 20; i++) {

       out.println(threadLocal.get());

       out.flush();



       threadLocal.set(threadLocal.get() + 1);

       }



       // 手動清理，當然隨著當前線程結束，亦會自動清理調

       threadLocal.remove();

       out.println("finish... ");

       out.flush();

       out.close();

       }

       }

   若創建一個對象較為昂貴，但又是非線程安全的，在某種情況下要求僅僅需要在線程中獨立變化，不會影響到其它線程。選擇使用ThreadLocal較好一些，嗯，還有，其內部使用到了WeakHashMap，弱引用，當前線程結束，意味著創建的對象副本也會被垃圾回收。
   Hibernate使用ThreadLocal創建Session;Spring亦用于創建對象會使用到一點。
   嗯，請注意這不是解決多線程共享變量的鑰匙，甚至你想讓某個屬性或對象在所有線程中都保持原子性，顯然這不是解決方案。
4. Lock
   沒什么好說的，現在JDK版本支持顯式的加鎖，相比synchronized，添加與釋放更加靈活，功能更為全面。

   @WebServlet("/lockServlet")

       public class LockServlet extends HttpServlet {

       private static final long serialVersionUID = 1L;



       private static int num = 0;

       private static final Lock lock = new ReentrantLock();



       protected void doGet(HttpServletRequest request, HttpServletResponse response) throws ServletException, IOException {

       try{

       lock.lock();

       num ++;

       response.getWriter().println(num);

       }finally{

       lock.unlock();

       }

       }

       }



   必須手動釋放鎖，否則將會一直鎖定。
5. wait/notify
   較老的線程線程同步方案，較之Lock，不建議再次使用。
6. 原子操作
   原子包裝類，包括一些基本類型(int, long, double, boolean等)的包裝，對象屬性的包裝等。

   @WebServlet("/atomicServlet")

       public class AtomicServlet extends HttpServlet {

       private static final long serialVersionUID = 1L;

       private static final AtomicInteger num = new AtomicInteger(0);



       protected void doGet(HttpServletRequest request,

       HttpServletResponse response) throws ServletException, IOException {

       PrintWriter out = response.getWriter();

       out.println(num.incrementAndGet());

       out.flush();

       out.close();

       }

       }



   包裝類提供了很多的快捷方法，比如上面的incrementAndGet方法，自身增加1,然后返回結果值，并且還是線程安全的，省缺了我們很多手動、笨拙的編碼實現。
   更多原子類，請參見 java.util.concurrent.atomic包。
7. 一些建議
   盡量不要在Servlet中單獨啟用線程
   使用盡可能使用局部變量
   盡可能避免使用鎖
8. 數據結構小結
   在平常環境下使用的一些數據結構，在多線程并發環境下可選擇使用java.util.concurrent里內置替代品。下面有一個小結，僅供參考。

Servlet線程安全有很太多的話題要說，以上僅僅為蜻蜓點水，真正需要學習和實踐的還有一段長路要學習。另，話說，這里已和Servlet版本無關，是知識積累和分享。

1. 隱藏IFrame(Hidden iframe)
   服務器端一般會輸出一段javascript腳本

   <script>comet.showMsg(“這是新的消息”)</script>


   好處在于各個瀏覽器都支持iframe，目前在IE、Firefox下面效果最好，頁面不再顯示正在加載中的討厭的提示（見Servlet 3.0筆記之異步請求Comet推送iFrame示范）
2. XMLHttpRequest
   很可憐，目前支持情況最好的是火狐瀏覽器、IE8以及Safari
   參考文章：
   Servlet 3.0筆記之異步請求Comet推送XMLHttpRequest示范
   Servlet 3.0筆記之異步請求Comet流推送(Streaming)實現小結。

1. XHR方式長輪詢（XMLHttpRequest long polling)
   服務器端可以返回原始的數據，也可以返回格式化的JSON、XML、JAVASCRIPT信息，相比iframe形式流推送，更自由一些。使用形式和傳統意義上的AJAX GET方式大致一樣，只不過下一次的輪詢需要等到有數據返回處理完方可。
   默認不支持跨域，實踐中會打折扣。
2. JAVASCRIPT標簽輪詢（Script tag long polling）
   可能翻譯不太準確，主要使用類似于如下形式：

   <script src='js/yourCometProvider.js' type='text/javascript'></script>

   使用跨域的JS腳本，可能會有安全方面隱患，或許這個間接風險是可控的。
   也可以使用JSONP用以規避這個風險。
   進階閱讀：Comet (long polling) for all browsers using ScriptCommunicator
   代碼寫的很巧妙，也很簡短，思路不錯，推薦一看。
   參考文章：
   Servlet 3.0筆記之異步請求Comet推送長輪詢(long polling)篇
   Servlet 3.0筆記之異步請求Comet推送長輪詢(long polling)篇補遺

BigPipe是一個重新設計的基礎動態網頁服務體系。大體思路是，分解網頁成叫做Pagelets的小塊，然后通過Web服務器和瀏覽器建立管道并管理他們在不同階段的運行。這是類似于大多數現代微處理器的流水線執行過程：多重指令管線通過不同的處理器執行單元，以達到性能的最佳。雖然BigPipe是對現有的服務網絡基礎過程的重新設計，但它卻不需要改變現有的網絡瀏覽器或服務器，它完全使用PHP和JavaScript來實現。

1. 請求解析：Web服務器解析和完整性檢查的HTTP請求。
2. 數據獲取：Web服務器從存儲層獲取數據。
3. 標記生成：Web服務器生成的響應的HTML標記。
4. 網絡傳輸：響應從Web服務器傳送到瀏覽器。
5. CSS的下載：瀏覽器下載網頁的CSS的要求。
6. DOM樹結構和CSS樣式：瀏覽器構造的DOM文檔樹，然后應用它的CSS規則。
7. JavaScript中下載：瀏覽器下載網頁中JavaScript引用的資源。
8. JavaScript執行：瀏覽器的網頁執行JavaScript代碼。

我們目標頁面大致結構如下，在 The 1KB CSS Grid 生成結構上修改。

生成客戶端代碼：

在Servlet代碼中，每輸出一段HTML腳本都會迫使當前線程沉睡一定時間，用戶在瀏覽頁面時，按照優先級順序一段一段的輸出，用戶體驗不錯。下面的截圖，可以略微感知一下。

<html>
<head>
<title>Comet JSONP TEST</title>
    <meta http-equiv="X-UA-Compatible" content="IE=8" />
    <meta http-equiv="content-type" content="text/html;charset=UTF-8"/>
<meta name="author" content="yongboy@gmail.com"/>
<meta name="keywords" content="servlet3, comet, ajax"/>
<meta name="description" content=""/>
<link type="text/css" rel="stylesheet" href="css/main.css"/>
<script type="text/javascript" src="http://ajax.aspnetcdn.com/ajax/jQuery/jquery-1.5.min.js"></script>
<script type="text/javascript" src="js/jquery.jsonp-2.1.4.js"></script>
<script type="text/javascript">
String.prototype.template=function(){
    var args=arguments;
    return this.replace(/\{(\d )\}/g, function(m, i){
        return args[i];
    });
}
var html = '<div class="logDiv">'
   '<div class="contentDiv">{0}</div>'
      '<div class="tipDiv">last date : {1}</div>'
      '<div class="clear">&nbsp;</div>'
      '</div>';

function showContent(json) {
 $("#showDiv").prepend(html.template(json.content, json.date));
}
var jsonpUrl = "http://192.168.0.99/servlet3/getjsonpnew";
function initJsonp(){
 $.jsonp({
       url: jsonpUrl,
       callbackParameter: 'callback',
       callback : 'yongboy', //eg:http://192.168.0.99/servlet3/getjsonpnew?callback=yongboy&_1297934909500=
       success: function(json) {
     if(json.state == 1){
    showContent(json);
   }
     initJsonp();
       },error: function(data) {
       }
 });
}
$(function (){
 // 為了兼容opera瀏覽器，設置為20秒延時時間(我本地測試若大于20s，可能出現連接中斷問題)
 if($.browser.opera){
  jsonpUrl  = "?timeout=20000";
 }

 initJsonp();
});
</script>
</head>
<body style="margin: 0; overflow: hidden">
<div id="showDiv" class="inputStyle">loading ...</div>
</body>
</html>

• 指定回調函數名
• 提供錯誤處理函數，兼容opera
• 在目前大部分瀏覽器中沒有加載進度顯示

1. IE
   頁面不刷新，效果很滿意。jQuery-JSONP源代碼：


        if ( browser.msie ) {

         script.event = STR_ONCLICK;
         script.htmlFor = script.id;
         script[ STR_ONREADYSTATECHANGE ] = function() {
          /loaded|complete/.test( script.readyState ) && callback();
         };

        // All others: standard handlers
        }


   使用了IE瀏覽器onreadystatechange加載事件等特性。
2. Firefox

         script[ STR_ONERROR ] = script[ STR_ONLOAD ] = callback;

         browser.opera ?

          // Opera: onerror is not called, use synchronized script execution
          ( ( scriptAfter = $( STR_SCRIPT_TAG )[ 0 ] ).text = "jQuery('#" + script.id + "')[0]." + STR_ONERROR + "()" )

          // Firefox: set script as async to avoid blocking scripts (3.6+ only)
          : script[ STR_ASYNC ] = STR_ASYNC;


   看來我當前瀏覽器中3.6版本的火狐支持腳本文件async屬性，非阻塞加載，再添加上onload，onerror事件支持，頁面不刷新顯示，也不難辦到了。
3. Chrome
   很不錯，當前作為主力的Chrome瀏覽器也支持腳本文件的async屬性，效果同3.6版本火狐。
4. Opera
   情況很糟糕，在Windows Opera 11.01以及Ubuntu Opera 11.00下測試，長輪詢時間若長于20秒，則會出現連接中斷情況。樣例中在Opear瀏覽器下設置長輪詢過期時間為20s。
   瀏覽器會一直顯示為正在加載中的狀態。
   Opera瀏覽器中腳本加載不支持onerror事件，只能使用阻塞式的腳本加載機制用以處理有可能發生的異常。
   有關阻塞方式實現JSONP，延伸閱讀：
   Comet (long polling) for all browsers using ScriptCommunicator
5. Safari
   既然同為一個內核的谷歌瀏覽器也支持腳本文件的async屬性，同樣的異步加載也是水到渠成的了。

1. AJAX方式請求長輪詢

   服務器端可以返回原始的數據，或格式化的JSON、XML、JAVASCRIPT信息，客戶端可擁有更多的處理自由。在形式上和傳統意義上的AJAX GET方式大致一樣，只不過下一次的輪詢需要等到上一次的輪詢數據返回處理完方可進行。
   這里給出客戶端的小示范：


   <!DOCTYPE html PUBLIC "-//W3C//DTD HTML 4.01 Transitional//EN" "http://www.w3.org/TR/html4/loose.dtd">
   <html>
   <head>
   <meta http-equiv="Content-Type" content="text/html; charset=UTF-8">
   <title>jQuery 1.5 with long poll</title>
   </head>
   <body>
   <div id="tip"></div>
   <script type="text/javascript" src="http://ajax.aspnetcdn.com/ajax/jQuery/jquery-1.5.min.js"></script>
   <script type="text/javascript">
   $(function (){
    function log(resp){
     $("#tip").html("<b>" + resp + "</b>");
    }

    log("loading");

    // 去除緩存
       $.ajaxSetup({ cache: false });

    function initGet(){
     $.get("getNextTime")
       .success(function(resp){
      log(resp);
     }).error(function(){
      log("ERROR!");
     }).done(initGet);
    }

    initGet();
   });
   </script>
   </body>
   </html>


   基于jQuery 1.5,事件鏈，比以往更簡潔明了，尤其是在done方法中又一次調用自身，棒極了。
   服務器端很簡單，每1秒輸出一次當前系統時間:


   /**
    * 簡單模擬每秒輸出一次當前系統時間，精細到毫秒
    *
    * @author yongboy
    * @date 2011-2-11
    * @version 1.0
    */
   @WebServlet("/getNextTime")
   public class GetNextTimeServlet extends HttpServlet {
    private static final long serialVersionUID = 1L;

    protected void doGet(HttpServletRequest request,
      HttpServletResponse response) throws ServletException, IOException {
     try {
      Thread.sleep(1000L);
     } catch (InterruptedException e) {
      e.printStackTrace();
     }

     response.setContentType("text/plain");
     PrintWriter out = response.getWriter();

     out.print(DateFormatUtils.format(System.currentTimeMillis(),
       "yyyy-MM-dd HH:mm:ss SSS"));
     out.flush();

     out.close();
    }
   }


2. JAVASCRIPT標簽輪詢（Script tag long polling）

   引用的JAVASCRIPT腳本文件是可以跨域的，再加上JSONP,更為強大了。
   這里給出一個演示，實現功能類似上面。
   客戶端清單：


   <!DOCTYPE html PUBLIC "-//W3C//DTD HTML 4.01 Transitional//EN" "http://www.w3.org/TR/html4/loose.dtd">
   <html>
   <head>
   <meta http-equiv="Content-Type" content="text/html; charset=UTF-8">
   <title>jQuery 1.5 with JSONP FOR Comet</title>
   </head>
   <body>
   <div id="tip"></div>
   <script type="text/javascript" src="http://ajax.aspnetcdn.com/ajax/jQuery/jquery-1.5.min.js"></script>
   <script type="text/javascript">
   $(function (){
    function log(resp){
     $("#tip").html("<b>"   resp   "</b>");
    }

    log("loading");

    function jsonp(){
     $.getJSON('http://192.168.0.99:8080/servlet3/getNextTime2?callback=?').success(function(resp){
      log("now time : "   resp);
     }).done(jsonp);

     // 以下方式也是合法的
     /*
     $.getJSON('http://192.168.0.99:8080/servlet3/getNextTime2?callback=?',function(date){
      log(date);
     }).done(jsonp);
     */
    }

    jsonp();
   });
   </script>
   </body>
   </html>



   服務器端清單:


   /**
    * JSONP形式簡單模擬每秒輸出一次當前系統時間，精細到毫秒
    * @author yongboy
    * @date 2011-2-11
    * @version 1.0
    */
   @WebServlet("/getNextTime2")
   public class GetNextTimeServlet2 extends HttpServlet {
    private static final long serialVersionUID = 1L;

    protected void doGet(HttpServletRequest request,
      HttpServletResponse response) throws ServletException, IOException {
     try {
      Thread.sleep(1000L);
     } catch (InterruptedException e) {
      e.printStackTrace();
     }

     String callback = request.getParameter("callback");

     if(StringUtils.isBlank(callback)){
      callback = "showResult";
     }

     PrintWriter out = response.getWriter();

     StringBuilder resultBuilder = new StringBuilder();
     resultBuilder
       .append(callback)
       .append("('")
       .append(DateFormatUtils.format(System.currentTimeMillis(), "yyyy-MM-dd HH:mm:ss SSS"))
       .append("');");

     out.print(resultBuilder);
     out.flush();

     out.close();
    }
   }



   每次請求時，都會在HTML頭部生成一個JS網絡地址(實現跨域):


   http://192.168.0.99:8080/servlet3/getNextTime2?callback=jQuery150832738454006945_1297761629067&_=1297761631777

   我們不用指定，jquery會自動生成一個隨機的函數名。
   請求上面地址服務器端在有新的數據輸出時，生成的回調JS函數：


   jQuery150832738454006945_1297761629067('2011-02-15 17:20:33 921');

   從下面截圖可以看到這一點。

   生成相應內容：


    不過，長連接情況下，瀏覽器認為當前JS文件還沒有加載完，會一直顯示正在加載中。

<html>
<head>
<title>Comet JSONP %u63A8%u9001%u6D4B%u8BD5</title>
    <meta http-equiv="X-UA-Compatible" content="IE=8" />
    <meta http-equiv="content-type" content="text/html;charset=UTF-8"/>
<meta name="author" content="yongboy@gmail.com"/>
<meta name="keywords" content="servlet3, comet, ajax"/>
<meta name="description" content=""/>
<link type="text/css" rel="stylesheet" href="css/main.css"/>
<script type="text/javascript" src="http://ajax.aspnetcdn.com/ajax/jQuery/jquery-1.5.min.js"></script>
<script type="text/javascript">
String.prototype.template=function(){
    var args=arguments;
    return this.replace(/\{(\d )\}/g, function(m, i){
        return args[i];
    });
}
var html = '<div class="logDiv">'
   '<div class="contentDiv">{0}</div>'
      '<div class="tipDiv">last date : {1}</div>'
      '<div class="clear">&nbsp;</div>'
      '</div>';

function showContent(json) {
 $("#showDiv").prepend(html.template(json.content, json.date));
}
function initJsonp(){
 $.getJSON('http://192.168.0.99/servlet3/getjsonpnew?callback=?').success(function(json){
  if(json.state == 1){
   showContent(json);
  }else{
   initJsonp();
   return;
  }
 }).done(initJsonp)
   .error(function(){
  alert("error!");
 });
}
$(function (){
 initJsonp();
});
</script>
</head>
<body style="margin: 0; overflow: hidden">
<div id="showDiv" class="inputStyle">loading ...</div>
</body>
</html>

/**
 * JSONP獲取最新信息
 *
 * @author yongboy
 * @date 2011-2-17
 * @version 1.0
 */
@WebServlet(urlPatterns = "/getjsonpnew", asyncSupported = true)
public class GetNewJsonpBlogPosts extends HttpServlet {
 private static final long serialVersionUID = 565698895565656L;
 private static final Log log = LogFactory.getLog(GetNewJsonpBlogPosts.class);

 protected void doGet(HttpServletRequest request,
   HttpServletResponse response) throws ServletException, IOException {
  response.setHeader("Cache-Control", "private");
  response.setHeader("Pragma", "no-cache");
  response.setHeader("Connection", "Keep-Alive");
  response.setHeader("Proxy-Connection", "Keep-Alive");
  response.setContentType("text/javascript;charset=UTF-8");
  response.setCharacterEncoding("UTF-8");

  String timeoutStr = request.getParameter("timeout");

  long timeout;

  if (StringUtils.isNumeric(timeoutStr)) {
   timeout = Long.parseLong(timeoutStr);
  } else {
   // 設置1分鐘
   timeout = 1L * 60L * 1000L;
  }

  log.info("new request ...");
  final HttpServletResponse finalResponse = response;
  final HttpServletRequest finalRequest = request;
  final AsyncContext ac = request.startAsync(request, finalResponse);
  // 設置成長久鏈接
  ac.setTimeout(timeout);
  ac.addListener(new AsyncListener() {
   public void onComplete(AsyncEvent event) throws IOException {
    log.info("onComplete Event!");
    NewBlogJsonpListener.ASYNC_AJAX_QUEUE.remove(ac);
   }

   public void onTimeout(AsyncEvent event) throws IOException {
    // 嘗試向客戶端發送超時方法調用，客戶端會再次請求/blogpush，周而復始
    log.info("onTimeout Event!");

    // 通知客戶端再次進行重連
    final PrintWriter writer = finalResponse.getWriter();

    String outString = finalRequest.getParameter("callback")
    + "({state:0,error:'timeout is now'});";
    writer.println(outString);
    writer.flush();
    writer.close();

    NewBlogJsonpListener.ASYNC_AJAX_QUEUE.remove(ac);
   }

   public void onError(AsyncEvent event) throws IOException {
    log.info("onError Event!");
    NewBlogJsonpListener.ASYNC_AJAX_QUEUE.remove(ac);
   }

   public void onStartAsync(AsyncEvent event) throws IOException {
    log.info("onStartAsync Event!");
   }
  });

  NewBlogJsonpListener.ASYNC_AJAX_QUEUE.add(ac);
 }
}

/**
 * 監聽器單獨線程推送到客戶端
 *
 * @author yongboy
 * @date 2011-2-17
 * @version 1.0
 */
@WebListener
public class NewBlogJsonpListener implements ServletContextListener {
 private static final Log log = LogFactory.getLog(NewBlogListener.class);
 public static final BlockingQueue BLOG_QUEUE = new LinkedBlockingQueue();
 public static final Queue ASYNC_AJAX_QUEUE = new ConcurrentLinkedQueue();

 public void contextDestroyed(ServletContextEvent arg0) {
  log.info("context is destroyed!");
 }

 public void contextInitialized(ServletContextEvent servletContextEvent) {
  log.info("context is initialized!");
  // 啟動一個線程處理線程隊列
  new Thread(runnable).start();
 }

 private Runnable runnable = new Runnable() {
  public void run() {
   boolean isDone = true;

   while (isDone) {
    if (!BLOG_QUEUE.isEmpty()) {
     try {
      log.info("ASYNC_AJAX_QUEUE size : "
        + ASYNC_AJAX_QUEUE.size());
      MicBlog blog = BLOG_QUEUE.take();

      if (ASYNC_AJAX_QUEUE.isEmpty()) {
       continue;
      }

      String targetJSON = buildJsonString(blog);

      for (AsyncContext context : ASYNC_AJAX_QUEUE) {
       if (context == null) {
        log.info("the current ASYNC_AJAX_QUEUE is null now !");
        continue;
       }
       log.info(context.toString());
       PrintWriter out = context.getResponse().getWriter();

       if (out == null) {
        log.info("the current ASYNC_AJAX_QUEUE's PrintWriter is null !");
        continue;
       }

       out.println(context.getRequest().getParameter(
         "callback")
         + "(" + targetJSON + ");");
       out.flush();

       // 通知，執行完成函數
       context.complete();
      }
     } catch (Exception e) {
      e.printStackTrace();
      isDone = false;
     }
    }
   }
  }
 };

 private static String buildJsonString(MicBlog blog) {
  Map info = new HashMap();
  info.put("state", 1);
  info.put("content", blog.getContent());
  info.put("date",
    DateFormatUtils.format(blog.getPubDate(), "HH:mm:ss SSS"));

  JSONObject jsonObject = JSONObject.fromObject(info);

  return jsonObject.toString();
 }
}

Apache決定不在Tomcat中添加對Java EE 6 Web Profile的完整支持，至少在眼下是這樣的。因此Tomcat 7中只是簡單地增加了Servlet 3.0（Java EE 6中引入的）的支持以及JavaServer Pages 2.2和EL 2.2的支持。新版本要求使用Java SE 6或更高版本。

Tomcat 7中的改進也不是全都針對Servlet 3.0 API的，其中還有不少重要的安全性改進。現在針對基于腳本的訪問、基于Web的訪問、JMX代理訪問和狀態頁訪問有了獨立的角色，允許做更具體的訪問控制。為了避免跨站請求偽造（CSRF）攻擊，所有的非冪等性請求（即多次執行不會產生相同結果的操作）都要求生成一個隨機數。Tomcat 7還針對會話固定攻擊（session fixation attack）采取了一些防御措施。會話固定攻擊就是將客戶端的會話ID強制設置為一個明確的已知值。

以前的實現

/**
 * 自定義會話Cookie屬性
 * @author yongboy
 * @date 2011-1-19
 * @version 1.0
 */
@WebFilter(dispatcherTypes = { DispatcherType.REQUEST }, urlPatterns = { "/*" })
public class CustomCookieFilter implements Filter {
 private static final Log log = LogFactory.getLog(CustomCookieFilter.class);
 private static final String CUSTOM_SESSION_ID = "YONGBOYID";
 private static final String HTTP_ONLY = "HttpOnly";
 private static final String SET_COOKIE = "SET-COOKIE";

 public void destroy() {
 }

 public void doFilter(ServletRequest req, ServletResponse rep,
   FilterChain chain) throws IOException, ServletException {
  HttpServletRequest request = (HttpServletRequest) req;
  HttpServletResponse response = (HttpServletResponse) rep;

  if (response.containsHeader(SET_COOKIE)) {
   log.info("haha,we have one new user visit the site ...");

   String sessionId = request.getSession().getId();
   String cookieValue = CUSTOM_SESSION_ID + "=" + sessionId + ";Path="
     + request.getContextPath() + ";" + HTTP_ONLY;

   log.info(SET_COOKIE + ":" + cookieValue);

   response.setHeader(SET_COOKIE, cookieValue);
  }

  chain.doFilter(req, response);
 }

 public void init(FilterConfig fConfig) throws ServletException {
 }
}

新的規范API

1. setName(String name)
   修改Session ID的名稱，默認為"JSESSIONID"
2. setDomain(String domain)
   設置當前Cookie所處于的域
3. setPath(String path)
   設置當前Cookie所處于的相對路徑
4. setHttpOnly(boolean httpOnly)
   設置是否支持HttpOnly屬性
5. setSecure(boolean secure)
   若使用HTTPS安全連接,則需要設置其屬性為true
6. setMaxAge(int maxAge)
   設置存活時間，單位為秒

/** 全局設置Session-Cookie相交互部分屬性
 *
 * @author yongboy
 * @date 2011-1-19
 * @version 1.0
 */
@WebListener
public class SessionCookieInitialization implements ServletContextListener {
 private static final Log log = LogFactory
   .getLog(SessionCookieInitialization.class);

 public void contextInitialized(ServletContextEvent sce) {
  log.info("now init the Session Cookie");

  ServletContext servletContext = sce.getServletContext();

  SessionCookieConfig sessionCookie = servletContext
    .getSessionCookieConfig();
  sessionCookie.setName("YONGBOYID");
  sessionCookie.setPath(servletContext.getContextPath());
  sessionCookie.setHttpOnly(true);
  sessionCookie.setSecure(false);

  log.info("name : " + sessionCookie.getName() + "\n" + "domain:"
    + sessionCookie.getDomain() + "\npath:"
    + sessionCookie.getPath() + "\nage:"
    + sessionCookie.getMaxAge());

  log.info("isHttpOnly : " + sessionCookie.isHttpOnly());
  log.info("isSecure : " + sessionCookie.isSecure());
 }

 public void contextDestroyed(ServletContextEvent sce) {
  log.info("the context is destroyed !");
 }
}

對當前站點的第一次請求，很容易從響應頭信息中看到Set-Cookie的屬性值：

不同瀏覽器平臺上測試

1. 在Safari、IE8、Opera 11 一切都很正常
2. Firefox 3.6、Chrome 9.0，JSESSIONID會繼續存在:


   YONGBOYID=601A6C82D535343163B175A4FD5376EA; JSESSIONID=AA78738AB1EAD1F9C649F705EC64D92D; AJSTAT_ok_times=6; JSESSIONID=abcpxyJmIpBVz6WHVo_1s; BAYEUX_BROWSER=439-1vyje1gmqt8y8giva7pqsu1

3. 在所有瀏覽器中，SESSION ID等于新設置的YONGBOYID值（若不相等，問題就嚴重了！）
4. 在客戶端JS無法獲得正確的SESSIONI ID了。

<Context useHttpOnly="true", sessionCookieName="YONGBOYID", sessionCookieDomain="/servlet3" … >
...
</Context>

<div style="margin: 40px; paddding: 10px">
 <div><a href="sessionCookieTest">正常連接</a></div>
 <div><a href="<%=response.encodeURL("sessionCookieTest") %>">重定向連接</a></div>
</div>

http://localhost/servlet3/sessionCookieTest;YONGBOYID=19B94935D50245270060E49C9E69F5B6

進階閱讀：

1. 維基對HttpOnly的解釋
2. 利用HTTP-only Cookie緩解XSS之痛
3. Tomcat Context 屬性
4. HttpOnly cookie與跨站點追蹤

1. startAsync(servletRequest, servletResponse) 傳入指定的request和response對象，便于在AsyncContext中重復使用（這樣被Filter、Servlet包裝過的請求、相應對象才會在異步的環境下繼續生效）。
2. startAsync() 若request或者response被包裝，將失去預期的效果。
3. isAsyncSupported() 和 isAsyncStarted()
   輔助性的方法，用于判斷當前請求是否支持異步或者異步已經開始。
4. getAsyncContext()
   需要在異步啟動之后才能夠訪問，否則會報異常。

1. AsyncContext.dispatch()
   若當前AsyncContext由ServletRequest.startAsync(ServletRequest, ServletResponse)方法啟動，返回的地址可以通過HttpServletRequest.getRequestURI()得到。
   否則，分發的地址則是當前URL request對象最后一次分發的地址。
   雖有些拗口，兩者分發的地址大部分情況下一致;但盡量使用帶有參數的異步上下文啟動器。
   如本例中請求/asyncDispatch2Async?disUrl=self，執行dispatch()方法之后，自身會再次分發到自身，包括傳遞的參數。
2. AsyncContext.dispatch(String path)
   等同于ServletRequest.getRequestDispatcher(String)，算是一個快捷方法。
   可以轉向一個同步或異步的servlet，或者JSP，或其它資源地址等。

3. AsyncContext.dispatch(ServletContext context, String path)
   請求的地址將在給定的上下文里面（ServletContext），有有可能傳入的上下文與當前站帶你應用的上下文有所區別。


/**
 * 異步上下文的轉向分發
 *
 * @author yongboy
 * @date 2011-1-14
 * @version 1.0
 */
@WebServlet(urlPatterns = { "/asyncDispatch2Async" }, asyncSupported = true)
public class AsyncContextDispatch2AsyncServlet extends HttpServlet {
 private static final long serialVersionUID = 46172233331022236L;
 private static final Log log = LogFactory
   .getLog(AsyncContextDispatch2AsyncServlet.class);

 protected void doGet(HttpServletRequest request,
   HttpServletResponse response) throws ServletException, IOException {
  response.setHeader("Cache-Control", "private");
  response.setHeader("Pragma", "no-cache");
  response.setHeader("Connection", "Keep-Alive");
  response.setHeader("Proxy-Connection", "Keep-Alive");
  response.setContentType("text/html;charset=UTF-8");

  PrintWriter out = response.getWriter();
  out.println("

Start ...

");
  out.flush();

  if (!request.isAsyncSupported()) {
   log.info("the servlet is not supported Async");
   return;
  }

  request.startAsync(request, response);

  if (request.isAsyncStarted()) {
   AsyncContext asyncContext = request.getAsyncContext();
   asyncContext.setTimeout(1L * 60L * 1000L);// 60sec

   new CounterThread(asyncContext).start();
  } else {
   log.error("the ruquest is not AsyncStarted !");
  }
 }

 private static class CounterThread extends Thread {
  private AsyncContext asyncContext;

  public CounterThread(AsyncContext asyncContext) {
   this.asyncContext = asyncContext;
  }

  @Override
  public void run() {
   int interval = 1000 * 20; // 20sec

   try {
    log.info("now sleep 20s, just as do some big task ...");
    Thread.sleep(interval);
    log.info("now dispatch to another Async Servlet");

    ServletRequest request = asyncContext.getRequest();

    String disUrl = request.getParameter("disUrl");

    if (StringUtils.isBlank(disUrl)) {
     disUrl = "/demoAsyncLink";
    }

    if (disUrl.endsWith(".jsp")) {
     request.setAttribute("dateStr", DateFormatUtils.format(
       System.currentTimeMillis(), "yyyy-MM-dd HH:mm:ss"));
    }

    log.info("disUrl is ： " + disUrl);

    // 將當前異步上下文所持有的request, response分發給Servlet容器
    if (StringUtils.equals("self", disUrl)) {
     // 將分發到自身，即當前異步請求地址
     asyncContext.dispatch();
    } else {
     // 將分發到指定的路徑
     asyncContext.dispatch(disUrl);
    }
   } catch (InterruptedException e) {
    e.printStackTrace();
   }
  }
 }
}

http://localhost/servlet3/asyncDispatch2Async?disUrl=self
一個視圖：

1. 需要添加MultipartConfig注解
2. 從request對象中獲取Part文件對象

/**
 * 上傳文件測試 location為臨時文件保存路徑
 *
 * @author yongboy
 * @date 2011-1-13
 * @version 1.0
 */
@MultipartConfig(location = "/home/yongboy/tmp/", maxFileSize = 1024 * 1024 * 10)
@WebServlet("/upload")
public class UploadFileAction extends HttpServlet {
 private static final long serialVersionUID = 92166165626L;
 private static final Log log = LogFactory.getLog(UploadFileAction.class);
 // 得到注解信息
 private static final MultipartConfig config;

 static {
  config = UploadFileAction.class.getAnnotation(MultipartConfig.class);
 }

 protected void doGet(HttpServletRequest request,
   HttpServletResponse response) throws ServletException, IOException {
  request.getRequestDispatcher("/upload.jsp").forward(request, response);
 }

 protected void doPost(HttpServletRequest request,
   HttpServletResponse response) throws ServletException, IOException {
  // 為避免獲取文件名稱時出現亂碼
  request.setCharacterEncoding("UTF-8");

  Part part = null;
  try {
   // <input name="file" size="50" type="file" />
   part = request.getPart("file");
  } catch (IllegalStateException ise) {
   // 上傳文件超過注解所標注的maxRequestSize或maxFileSize值
   if (config.maxRequestSize() == -1L) {
    log.info("the Part in the request is larger than maxFileSize");
   } else if (config.maxFileSize() == -1L) {
    log.info("the request body is larger than maxRequestSize");
   } else {
    log.info("the request body is larger than maxRequestSize, or any Part in the request is larger than maxFileSize");
   }

   forwardErrorPage(request, response, "上傳文件過大，請檢查輸入是否有誤！");
   return;
  } catch (IOException ieo) {
   // 在接收數據時出現問題
   log.error("I/O error occurred during the retrieval of the requested Part");
  } catch (Exception e) {
   log.error(e.toString());
   e.printStackTrace();
  }

  if (part == null) {
   forwardErrorPage(request, response, "上傳文件出現異常，請檢查輸入是否有誤！");
   return;
  }

  // 得到文件的原始名稱，eg ：測試文檔.pdf
  String fileName = UploadUtils.getFileName(part);

  log.info("contentType : " + part.getContentType());
  log.info("fileName : " + fileName);
  log.info("fileSize : " + part.getSize());
  log.info("header names : ");
  for (String headerName : part.getHeaderNames()) {
   log.info(headerName + " : " + part.getHeader(headerName));
  }

  String saveName = System.currentTimeMillis() + "."
    + FilenameUtils.getExtension(fileName);

  log.info("save the file with new name : " + saveName);

  // 因在注解中指定了路徑，這里可以指定要寫入的文件名
  // 在未執行write方法之前，將會在注解指定location路徑下生成一臨時文件
  part.write(saveName);

  request.setAttribute("fileName", fileName);
  request.getRequestDispatcher("/uploadResult.jsp").forward(request,
    response);
 }

 private void forwardErrorPage(HttpServletRequest request,
   HttpServletResponse response, String errMsg)
   throws ServletException, IOException {
  request.setAttribute("errMsg", errMsg);

  request.getRequestDispatcher("/upload.jsp").forward(request, response);
 }
}

 /**
  * 如何得到上傳的文件名, API沒有提供直接的方法，只能從content-disposition屬性中獲取
  *
  * @param part
  * @return
  */
 protected static String getFileName(Part part) {
  if (part == null)
   return null;

  String fileName = part.getHeader("content-disposition");
  if (StringUtils.isBlank(fileName)) {
   return null;
  }

  return StringUtils.substringBetween(fileName, "filename=\"", "\"");
 }

截圖中可以看到Part包含content-disposition屬性，可以很容易從值中抽取出文件名。臨時生成的上傳文件大都以 .tmp為后綴，大致如下：

讓上傳出現錯誤，就可以在保存路徑下看到大致如上的臨時文件。

一次上傳多個文件的后臺servlet示范：

/**
 * 多文件上傳支持
 * @author yongboy
 * @date 2011-1-14
 * @version 1.0
 */
@MultipartConfig(
  location = "/home/yongboy/tmp/",
  maxFileSize = 1024L * 1024L, // 每一個文件的最大值
  maxRequestSize = 1024L * 1024L * 10L // 一次上傳最大值，若每次只能上傳一個文件，則設置maxRequestSize意義不大
)
@WebServlet("/uploadFiles")
public class UploadFilesAction extends HttpServlet {
 private static final long serialVersionUID = 2304820820384L;
 private static final Log log = LogFactory.getLog(UploadFilesAction.class);

 protected void doGet(HttpServletRequest request,
   HttpServletResponse response) throws ServletException, IOException {
  request.getRequestDispatcher("/uploads.jsp").forward(request, response);
 }

 protected void doPost(HttpServletRequest request,
   HttpServletResponse response) throws ServletException, IOException {
  request.setCharacterEncoding("UTF-8");

  Collection parts = null;
  try {
   parts = request.getParts();
  } catch (IllegalStateException ise) {
   // 可能某個文件大于指定文件容量maxFileSize，或者提交數據大于maxRequestSize
   log.info("maybe the request body is larger than maxRequestSize, or any Part in the request is larger than maxFileSize");
  } catch (IOException ioe) {
   // 在獲取某個文件時遇到拉IO異常錯誤
   log.error("an I/O error occurred during the retrieval of the Part components of this request");
  } catch (Exception e) {
   log.error("the request body is larger than maxRequestSize, or any Part in the request is larger than maxFileSize");
   e.printStackTrace();
  }

  if (parts == null || parts.isEmpty()) {
   doError(request, response, "上傳文件為空！");
   return;
  }

  // 前端具有幾個file組件，這里會對應幾個Part對象
  List fileNames = new ArrayList();
  for (Part part : parts) {
   if (part == null) {
    continue;
   }
   // 這里直接以源文件名保存
   String fileName = UploadUtils.getFileName(part);

   if (StringUtils.isBlank(fileName)) {
    continue;
   }

   part.write(fileName);
   fileNames.add(fileName);
  }

  request.setAttribute("fileNames", fileNames);
  request.getRequestDispatcher("/uploadsResult.jsp").forward(request,
    response);
 }

 private void doError(HttpServletRequest request,
   HttpServletResponse response, String errMsg)
   throws ServletException, IOException {
  request.setAttribute("errMsg", errMsg);

  this.doGet(request, response);
 }
}

批量上傳很簡單，但也有風險，任一個文件若超過maxFileSize值，意味著整個上傳都會失敗。若不限大小，那就不存在以上憂慮了。

總之，在Servlet 3.0 中，無論是上傳一個文件，或者多個批量上傳都是非常簡單，但要處理好異常，避免出錯。

嚴重: Servlet.service() for servlet [com.learn.servlet3.async.DemoAsyncLinkServlet] in context with path [/servlet3] threw exceptionjava.lang.IllegalStateException: Not supported.

<div>2</div>

/**
 * 模擬長連接實現，每秒輸出一些信息
 *
 * @author yongboy
 * @date 2011-1-14
 * @version 1.0
 */
@WebServlet(
 urlPatterns = { "/demoAsyncLink", "/demoAsyncLink2" },
 asyncSupported = true
)
public class DemoAsyncLinkServlet extends HttpServlet {
 private static final long serialVersionUID = 4617227991063927036L;

 protected void doGet(HttpServletRequest request,
   HttpServletResponse response) throws ServletException, IOException {
  response.setHeader("Cache-Control", "private");
  response.setHeader("Pragma", "no-cache");
  response.setHeader("Connection", "Keep-Alive");
  response.setHeader("Proxy-Connection", "Keep-Alive");
  response.setContentType("text/html;charset=UTF-8");

  PrintWriter out = response.getWriter();
  out.println("<div>Start ...</div>");
  out.flush();

  AsyncContext asyncContext = request.startAsync(request, response);

  new CounterThread(asyncContext).start();
 }

 private static class CounterThread extends Thread {
  private AsyncContext asyncContext;
  public CounterThread(AsyncContext asyncContext) {
   this.asyncContext = asyncContext;
  }

  @Override
  public void run() {
   int num = 0;
   int max = 100;
   int interval = 1000;

   // 必須設置過期時間，否則將會出連接過期，線程無法運行完畢異常
   asyncContext.setTimeout((max + 1) * interval);
   PrintWriter out = null;

   try {
    try {
     out = asyncContext.getResponse().getWriter();
    } catch (IOException e) {
     e.printStackTrace();
    }

    while (true) {
     out.println("<div>" + (num++) + "</div>");
     out.flush();

     if (num >= max) {
      break;
     }

     Thread.sleep(interval);
    }
   } catch (InterruptedException e) {
    e.printStackTrace();
   }

   if (out != null) {
    out.println("<div>Done !</div>");
    out.flush();
    out.close();
   }

   asyncContext.complete();
  }
 }
}

<!--marked filter-->
<div>2</div>

/**
 * 異步攔截器
 *
 * @author yongboy
 * @date 2011-1-14
 * @version 1.0
 */
@WebFilter(
 dispatcherTypes = {
   DispatcherType.REQUEST,
   DispatcherType.FORWARD,
   DispatcherType.INCLUDE
 },
 urlPatterns = { "/demoAsyncLink" },
 asyncSupported = true //支持異步Servlet
)
public class AsyncServletFilter implements Filter {
 private Log log = LogFactory.getLog(AsyncServletFilter.class);

 public AsyncServletFilter() {
 }

 public void destroy() {
 }

 public void doFilter(ServletRequest request, ServletResponse response,
   FilterChain chain) throws IOException, ServletException {

  log.info("it was filted now");

  MarkWapperedResponse wapper = new MarkWapperedResponse(
    (HttpServletResponse) response);

  chain.doFilter(request, wapper);
 }

 public void init(FilterConfig fConfig) throws ServletException {
 }
}

/**
 * HttpServletResponse簡單包裝器，邏輯簡單
 *
 * @author yongboy
 * @date 2011-1-14
 * @version 1.0
 */
public class MarkWapperedResponse extends HttpServletResponseWrapper {
 private PrintWriter writer = null;
 private static final String MARKED_STRING = "<!--marked filter--->";

 public MarkWapperedResponse(HttpServletResponse resp) throws IOException {
  super(resp);

  writer = new MarkPrintWriter(super.getOutputStream());
 }

 @Override
 public PrintWriter getWriter() throws UnsupportedEncodingException {
  return writer;
 }

 private static class MarkPrintWriter extends PrintWriter{

  public MarkPrintWriter(OutputStream out) {
   super(out);
  }

  @Override
  public void flush() {
   super.flush();

   super.println(MARKED_STRING);
  }
 }
}



可以在瀏覽器內同時請求/demoAsyncLink2前后作為對比一下。

1. IE瀏覽器最佳實踐是使用htmlfile ActiveXObject，以及創建隱藏IFrame組件，可以跨越IE6-IE8;雖IE 8支持XDomainRequest支持HTTP Streaming，但僅僅是IE 8。
2. Firefox 瀏覽器相當棒，支持XMLHttpRequest Streaming 和隱藏的IFrame組件。
3. Safari 瀏覽器支持XMLHttpRequest Streaming。
4. Chrome有些無奈，算不上支持XMLHttpRequest Streaming，使用IFrame的話會一直出現正在加載中的標志。
5. Opera也不支持XMLHttpRequest Streaming，使用IFrame的話會一直出現正在加載中的標志。

/**
 * 一個典型的長連接實現
 *
 * @author yongboy
 * @date 2011-1-14
 * @version 1.0
 */
@WebServlet("/demoLongLink")
public class DemoLongLinkServlet extends HttpServlet {
 private static final long serialVersionUID = 4617227991063927036L;

 protected void doGet(HttpServletRequest request,
   HttpServletResponse response) throws ServletException, IOException {

  response.setHeader("Cache-Control", "private");
  response.setHeader("Pragma", "no-cache");
  response.setHeader("Connection", "Keep-Alive");
  response.setHeader("Proxy-Connection", "Keep-Alive");
  response.setContentType("text/html;charset=UTF-8");

  PrintWriter out = response.getWriter();
  out.println("<div>Start ...</div>");
  out.flush();

  int num = 0;
  int max = 100;
  while (true) {
   out.println("<div>" + (num++) + "</div>");
   out.flush();

   if (num >= max) {
    break;
   }

   try {
    Thread.sleep(1000);
   } catch (InterruptedException e) {
    e.printStackTrace();
   }
  }

  out.println("<div>Done !</div>");
  out.flush();
  out.close();
 }
}

1. IE（IE6-IE7），只有在請求的內容不再發生變化時以及 readyState = 4 的時候才會獲取到返回的responseText內容，因此不支持長連接。
2. IE8：以XDomainRequest取代ActiveXObject對象，也算是一個進步，但在服務器端有邀請，必須在頭部設置 Access-Control-Allow-Origin值，若不知道客戶端調用JS所處的域名，設置成星號，通用即可。
3. Opera：貌似只有在readyState=3時才會觸發一次onreadystatechange函數，不支持長連接。
4. Firefox 3.6 和Safari 4：默認支持XMLHttpRequest Streaming。
5. Chrome 4.1版本:只有在請求內容不再發生變化才會達到readyState=2狀態，所以支持情況不太好。

<html>
<head>
<title>comet XHR測試</title>
<meta http-equiv="X-UA-Compatible" content="IE=8" />
<meta http-equiv="content-type" content="text/html;charset=UTF-8" />
<meta name="author" content="yongboy@gmail.com" />
<meta name="keywords" content="servlet3, comet, ajax" />
<meta name="description" content="" />
<link type="text/css" rel="stylesheet" href="css/main.css" />
</head>
<body style="margin: 0; overflow: hidden" onload="">
<div id="showDiv" class="inputStyle"></div>
<script>
 function showMsg(msg) {
  document.getElementById("showDiv").innerHTML = msg;
 }
 function doXHR() {
  var xhr = null;
  // 在IE8下面，window.XMLHttpRequest = true，因此需要window.XDomainRequest放在第一位置
  if (window.XDomainRequest) {
   xhr = new XDomainRequest();
  } else if (window.XMLHttpRequest) {
   xhr = new XMLHttpRequest();
  } else if (window.ActiveXObject) {
   var aVersions = [ "Msxml2.XMLHttp.5.0", "Msxml2.XMLHttp.4.0",
     "Msxml2.XMLHttp.3.0", "Msxml2.XMLHttp", "Microsoft.XMLHttp" ];
   for ( var i = 0; i < aVersions.length; i++) {
    try {
     xhr = new ActiveXObject(aVersions[i]);
     break;
    } catch (e) {
    }
   }
  }

  if (xhr == null) {
   showMsg("當前瀏覽器不支持創建XMLHttpRequest ！");
   return;
  }

  try {
   xhr.onload = function() {
    showMsg(xhr.responseText);
   };
   xhr.onerror = function() {
    showMsg("XMLHttpRequest Fatal Error.");
   };
   xhr.onreadystatechange = function() {
    try {
     if (xhr.readyState > 2) {
      showMsg(xhr.responseText);
     }
    } catch (e) {
     showMsg("XMLHttpRequest Exception: " + e);
    }
   };
   // 經測試：
   // IE8,Safayi完美支持onprogress事件（可以不需要onreadystatechange事件）；
   // Chrome也支持,在后臺數據推送到時，會調用其方法，但無法得到responseText值；除非（長連接關閉）
   // Firefox 3.6 也支持，但得到返回值有些BUG
   xhr.onprogress = function() {
    showMsg(xhr.responseText);
   };
   xhr.open("GET", "getnew?" + Math.random(), true);
   xhr.send(null);
  } catch (e) {
   showMsg("XMLHttpRequest Exception: " + e);
  }
 }
 if (window.addEventListener) {
     window.addEventListener("load", doXHR, false);
 } else if (window.attachEvent) {
     window.attachEvent("onload", doXHR);
 }
</script>
</body>
</html>

/**
 * XHR獲取最新信息
 *
 * @author yongboy
 * @date 2011-1-10
 * @version 1.0
 */
@WebServlet(urlPatterns = "/getnew", asyncSupported = true)
public class GetNewBlogPosts extends HttpServlet {
 private static final long serialVersionUID = 5656988888865656L;
 private static final Log log = LogFactory.getLog(GetNewBlogPosts.class);

 protected void doGet(HttpServletRequest request,
   HttpServletResponse response) throws ServletException, IOException {
  response.setHeader("Cache-Control", "private");
  response.setHeader("Pragma", "no-cache");
  response.setHeader("Connection", "Keep-Alive");
  response.setHeader("Proxy-Connection", "Keep-Alive");
  response.setHeader("Access-Control-Allow-Origin", "*");
  response.setContentType("text/html;charset=UTF-8");
  response.setCharacterEncoding("UTF-8");
  PrintWriter writer = response.getWriter();

  // 若當前輸出內容較少情況下，需要產生大約2KB的垃圾數據，諸如下面產生一些空格
  for (int i = 0; i < 10; i++) {
   writer.print("                                   ");
  }

  writer.println("<div class='logDiv,clear'>waiting for ......</div>");
  writer.flush();

  final AsyncContext ac = request.startAsync();
  // 設置成長久鏈接
  ac.setTimeout(10 * 60 * 1000);
  ac.addListener(new AsyncListener() {
   public void onComplete(AsyncEvent event) throws IOException {
    NewBlogXHRListener.ASYNC_XHR_QUEUE.remove(ac);
   }

   public void onTimeout(AsyncEvent event) throws IOException {
    NewBlogXHRListener.ASYNC_XHR_QUEUE.remove(ac);
   }

   public void onError(AsyncEvent event) throws IOException {
    NewBlogXHRListener.ASYNC_XHR_QUEUE.remove(ac);
   }

   public void onStartAsync(AsyncEvent event) throws IOException {
    log.info("now add the AsyncContext");
   }
  });

  NewBlogXHRListener.ASYNC_XHR_QUEUE.add(ac);
 }
}

response.setHeader("Access-Control-Allow-Origin", "*");

1. 在注解處標記上 asyncSupported = true;
2. final AsyncContext ac = request.startAsync();

 protected void doPost(HttpServletRequest request,
   HttpServletResponse response) throws ServletException, IOException {
  MicBlog blog = new MicBlog();

  blog.setAuthor("發布者");
  blog.setId(System.currentTimeMillis());
  blog.setContent(iso2UTF8(request.getParameter("content")));
  blog.setPubDate(new Date());

  // 放到博文隊列里面去
  NewBlogListener.BLOG_QUEUE.add(blog);

  request.setAttribute("message", "博文發布成功!");

  request.getRequestDispatcher("/WEB-INF/pages/write.jsp").forward(
    request, response);
 }

 private static String iso2UTF8(String str){
  try {
   return new String(str.getBytes("ISO-8859-1"), "UTF-8");
  } catch (UnsupportedEncodingException e) {
   e.printStackTrace();
  }
  return null;
 }

<html>
<head>
<title>comet推送測試</title>
    <meta http-equiv="X-UA-Compatible" content="IE=8" />
    <meta http-equiv="content-type" content="text/html;charset=UTF-8"/>
<meta name="author" content="yongboy@gmail.com"/>
<meta name="keywords" content="servlet3, comet, ajax"/>
<meta name="description" content=""/>
<link type="text/css" rel="stylesheet" href="css/main.css"/>
<script type="text/javascript" src="js/jquery-1.4.min.js"></script>
<script type="text/javascript" src="js/comet.js"></script>
</head>
<body style="margin: 0; overflow: hidden">
<div id="showDiv" class="inputStyle"></div>
</body>
</html>

/**
 * 客戶端Comet JS 渲染部分
 * @author yongboy@gmail.com
 * @date 2010-10-18
 * @version 1.0
 */
String.prototype.template=function(){
    var args=arguments;
    return this.replace(/\{(\d+)\}/g, function(m, i){
        return args[i];
    });
}
var html = '<div class="logDiv">'
 + '<div class="contentDiv">{0}</div>'
    + '<div class="tipDiv">last date : {1}</div>'
    + '<div class="clear">&nbsp;</div>'
    + '</div>';

function showContent(json) {
 $("#showDiv").prepend(html.template(json.content, json.date));
}
var server = 'blogpush';
var comet = {
    connection   : false,
    iframediv    : false,

    initialize: function() {
        if (navigator.appVersion.indexOf("MSIE") != -1) {
            comet.connection = new ActiveXObject("htmlfile");
            comet.connection.open();
            comet.connection.write("<html>");
            comet.connection.write("<script>document.domain = '"+document.domain+"'");
            comet.connection.write("</html>");
            comet.connection.close();
            comet.iframediv = comet.connection.createElement("div");
            comet.connection.appendChild(comet.iframediv);
            comet.connection.parentWindow.comet = comet;
            comet.iframediv.innerHTML = "<iframe id='comet_iframe' src='"+server+"'></iframe>";
        }else if (navigator.appVersion.indexOf("KHTML") != -1 || navigator.userAgent.indexOf('Opera') >= 0) {
         comet.connection = document.createElement('iframe');
            comet.connection.setAttribute('id',     'comet_iframe');
            comet.connection.setAttribute('src',    server);
            with (comet.connection.style) {
                position   = "absolute";
                left       = top   = "-100px";
                height     = width = "1px";
                visibility = "hidden";
            }
            document.body.appendChild(comet.connection);
        }else {
            comet.connection = document.createElement('iframe');
            comet.connection.setAttribute('id', 'comet_iframe');
            with (comet.connection.style) {
                left       = top   = "-100px";
                height     = width = "1px";
                visibility = "hidden";
                display    = 'none';
            }
            comet.iframediv = document.createElement('iframe');
            comet.iframediv.setAttribute('onLoad', 'comet.frameDisconnected()');
            comet.iframediv.setAttribute('src', server);
            comet.connection.appendChild(comet.iframediv);
            document.body.appendChild(comet.connection);
        }
    },
    frameDisconnected: function() {
        comet.connection = false;
        $('#comet_iframe').remove();
     //setTimeout("chat.showConnect();",100);
 },
 showMsg:function(data){
  showContent(data);
 },
 timeout:function(){
  var url = server + "?time=" + new Date().getTime();
        if (navigator.appVersion.indexOf("MSIE") != -1) {
         comet.iframediv.childNodes[0].src = url;
        } else if (navigator.appVersion.indexOf("KHTML") != -1 || navigator.userAgent.indexOf('Opera') >= 0) {
         document.getElementById("comet_iframe").src = url;
        } else {
         comet.connection.removeChild(comet.iframediv);
         document.body.removeChild(comet.connection);
            comet.iframediv.setAttribute('src', url);
            comet.connection.appendChild(comet.iframediv);
            document.body.appendChild(comet.connection);
        }
 },
    onUnload: function() {
        if (comet.connection) {
            comet.connection = false;
        }
    }
}

if (window.addEventListener) {
    window.addEventListener("load", comet.initialize, false);
    window.addEventListener("unload", comet.onUnload, false);
} else if (window.attachEvent) {
    window.attachEvent("onload", comet.initialize);
    window.attachEvent("onunload", comet.onUnload);
}

/**
 * 負責客戶端的推送
 * @author yongboy
 * @date 2011-1-13
 * @version 1.0
 */
@WebServlet(urlPatterns = { "/blogpush" }, asyncSupported = true)
public class BlogPushAction extends HttpServlet {
 private static final long serialVersionUID = 8546832356595L;
 private static final Log log = LogFactory.getLog(BlogPushAction.class);

 protected void doGet(HttpServletRequest request,
   HttpServletResponse response) throws ServletException, IOException {

  response.setHeader("Cache-Control", "private");
  response.setHeader("Pragma", "no-cache");
  response.setContentType("text/html;charset=UTF-8");
  response.setCharacterEncoding("UTF-8");
  final PrintWriter writer = response.getWriter();

  // 創建Comet Iframe
  writer.println("<!doctype html public \"-//w3c//dtd html 4.0 transitional//en\">");
  writer.println("<script type=\"text/javascript\">var comet = window.parent.comet;</script>");
  writer.flush();

  final AsyncContext ac = request.startAsync();
  ac.setTimeout(10 * 60 * 1000);// 10分鐘時間;tomcat7下默認為10000毫秒

  ac.addListener(new AsyncListener() {
   public void onComplete(AsyncEvent event) throws IOException {
    log.info("the event : " + event.toString()
      + " is complete now !");
    NewBlogListener.ASYNC_AJAX_QUEUE.remove(ac);
   }

   public void onTimeout(AsyncEvent event) throws IOException {
    log.info("the event : " + event.toString()
      + " is timeout now !");

    // 嘗試向客戶端發送超時方法調用，客戶端會再次請求/blogpush，周而復始
    log.info("try to notify the client the connection is timeout now ...");
    String alertStr = "<script type=\"text/javascript\">comet.timeout();</script>";
    writer.println(alertStr);
    writer.flush();
    writer.close();

    NewBlogListener.ASYNC_AJAX_QUEUE.remove(ac);
   }

   public void onError(AsyncEvent event) throws IOException {
    log.info("the event : " + event.toString() + " is error now !");
    NewBlogListener.ASYNC_AJAX_QUEUE.remove(ac);
   }

   public void onStartAsync(AsyncEvent event) throws IOException {
    log.info("the event : " + event.toString()
      + " is Start Async now !");
   }
  });

  NewBlogListener.ASYNC_AJAX_QUEUE.add(ac);
 }
}

/**
 * 監聽器單獨線程推送到客戶端
 * @author yongboy
 * @date 2011-1-13
 * @version 1.0
 */
@WebListener
public class NewBlogListener implements ServletContextListener {
 private static final Log log = LogFactory.getLog(NewBlogListener.class);
 public static final BlockingQueue<MicBlog> BLOG_QUEUE = new LinkedBlockingDeque<MicBlog>();
 public static final Queue<AsyncContext> ASYNC_AJAX_QUEUE = new ConcurrentLinkedQueue<AsyncContext>();
 private static final String TARGET_STRING = "<script type=\"text/javascript\">comet.showMsg(%s);</script>";

 private String getFormatContent(MicBlog blog) {
  return String.format(TARGET_STRING, buildJsonString(blog));
 }

 public void contextDestroyed(ServletContextEvent arg0) {
  log.info("context is destroyed!");
 }

 public void contextInitialized(ServletContextEvent servletContextEvent) {
  log.info("context is initialized!");
  // 啟動一個線程處理線程隊列
  new Thread(runnable).start();
 }

 private Runnable runnable = new Runnable() {
  public void run() {
   boolean isDone = true;

   while (isDone) {
    if (!BLOG_QUEUE.isEmpty()) {
     try {
      log.info("ASYNC_AJAX_QUEUE size : "
        + ASYNC_AJAX_QUEUE.size());
      MicBlog blog = BLOG_QUEUE.take();

      if (ASYNC_AJAX_QUEUE.isEmpty()) {
       continue;
      }

      String targetJSON = getFormatContent(blog);

      for (AsyncContext context : ASYNC_AJAX_QUEUE) {
       if (context == null) {
        log.info("the current ASYNC_AJAX_QUEUE is null now !");
        continue;
       }
       log.info(context.toString());
       PrintWriter out = context.getResponse().getWriter();

       if (out == null) {
        log.info("the current ASYNC_AJAX_QUEUE's PrintWriter is null !");
        continue;
       }

       out.println(targetJSON);
       out.flush();
      }
     } catch (Exception e) {
      e.printStackTrace();
      isDone = false;
     }
    }
   }
  }
 };

 private static String buildJsonString(MicBlog blog) {
  Map<String, Object> info = new HashMap<String, Object>();
  info.put("content", blog.getContent());
  info.put("date",
    DateFormatUtils.format(blog.getPubDate(), "HH:mm:ss SSS"));

  JSONObject jsonObject = JSONObject.fromObject(info);

  return jsonObject.toString();
 }
}

1. 客戶端請求 blog.html
2. blog.html的comet.js開始注冊啟動事件
3. JS產生一個iframe，在iframe中請求/blogpush，注冊異步連接，設定超時為10分鐘，注冊異步監聽器
4. 服務器接收到請求，添加異步連接到隊列中
5. 客戶端處于等待狀態（長連接一直建立），等待被調用
6. 后臺發布新的博客文章
7. 博客文章被放入到隊列中
8. 一直在守候的獨立線程處理博客文章隊列；把博客文章格式化成JSON對象，一一輪詢推送到客戶端
9. 客戶端JS方法被調用，進行JSON對象解析，組裝HTML代碼，顯示在當前頁面上
10. 超時發生時，/blogpush通知客戶端已經超時，調用超時（timeout）方法；同時從異步連接隊列中刪除
11. 客戶端接到通知，對iframe進行操作，再次進行連接請求，重復步驟2

http://www.elliotswan.com/postable/
http://www.khurshid.com/i-make-postable/

/**
 * 簡單示范
 * @author yongboy
 * @date 2011-1-16
 * @version 1.0
 */
@WebServlet("/jarHome")
public class HelloJarServlet extends HttpServlet {
 private static final long serialVersionUID = 6177346686921106540L;

 protected void doGet(HttpServletRequest request,
   HttpServletResponse response) throws ServletException, IOException {
  request.setAttribute("date", new Date());
  request.getRequestDispatcher("/jarpage/jarhome.jsp").forward(request, response);
 }
}

而jarhome.jsp文件路徑則位于 ${jar}/META-INF/resources/jarpage/jarhome.jsp

當然jarhome.jsp文件則沒有什么特別之處:

<%@ page language="java" contentType="text/html; charset=UTF-8"
    pageEncoding="UTF-8"%>
<!DOCTYPE html PUBLIC "-//W3C//DTD HTML 4.01 Transitional//EN" "http://www.w3.org/TR/html4/loose.dtd">
<html>
<head>
<meta http-equiv="Content-Type" content="text/html; charset=UTF-8">
<link rel="stylesheet" href="css/style.css" type="text/css" />
<title>Welcome to jar home</title>
</head>
<body>
<img alt="j2ee" src="img/j2ee.png" /><br/>
<br/>
now date : <%=((java.util.Date)request.getAttribute("date")).toString()%>
</body>
</html>

jarhome.jsp文件所引用css/style.css和img/j2ee.png等文件分別位于 ${jar}/META-INF/resources/css/style.css和${jar}/META-INF/resources/img/j2ee.png目錄下。

把生成的jar文件存放在 WEB-INF/lib/ 中，下面為一個運行示范圖：

樣式和圖片等都可以正常訪問。

有時候可能需要使用路徑信息等，再看一個示范吧：

/**
 * 演示jarDemo
 *
 * @author yongboy
 * @date 2011-1-16
 * @version 1.0
 */
@WebServlet("/jarDemo")
public class DemoWebINFPagesServlet extends HttpServlet {
 private static final long serialVersionUID = -1040850432869481349L;
 private static final Log log = LogFactory
   .getLog(DemoWebINFPagesServlet.class);

 @SuppressWarnings("deprecation")
 @Override
 protected void doGet(HttpServletRequest request,
   HttpServletResponse response) throws ServletException, IOException {
  log.info("the /jarDemo is accessed now!");

  log.info("getRealPath : " + request.getRealPath("/"));
  log.info("ServletContext : getRealPath : "
    + getServletContext().getRealPath("/"));
  log.info("getPathTranslated : " + request.getPathTranslated());

  log.info("get jar's resource:");

  InputStream is = getServletContext().getResourceAsStream(
    "/jarfile/demo.txt");
  log.info("the JAR/META-INF/resources/jarfile/demo.txt's content is :\n"
    + IOUtils.toString(is));

  request.getRequestDispatcher("/WEB-INF/pages/notaccess.jsp");
 }
}

輸入命令行信息為：

[framework] 2011-01-03 11:45:16,664 - com.learn.servlet3.jardync.DemoWebINFPagesServlet -798292 [http-8080-exec-6] INFO  com.learn.servlet3.jardync.DemoWebINFPagesServlet  - the /jarDemo is accessed now!
[framework] 2011-01-03 11:45:16,664 - com.learn.servlet3.jardync.DemoWebINFPagesServlet -798292 [http-8080-exec-6] INFO  com.learn.servlet3.jardync.DemoWebINFPagesServlet  - getRealPath : /home/yongboy/workspace/.metadata/.plugins/org.eclipse.wst.server.core/tmp0/wtpwebapps/d/
[framework] 2011-01-03 11:45:16,664 - com.learn.servlet3.jardync.DemoWebINFPagesServlet -798292 [http-8080-exec-6] INFO  com.learn.servlet3.jardync.DemoWebINFPagesServlet  - ServletContext : getRealPath : /home/yongboy/workspace/.metadata/.plugins/org.eclipse.wst.server.core/tmp0/wtpwebapps/d/
[framework] 2011-01-03 11:45:16,665 - com.learn.servlet3.jardync.DemoWebINFPagesServlet -798293 [http-8080-exec-6] INFO  com.learn.servlet3.jardync.DemoWebINFPagesServlet  - getPathTranslated : null
[framework] 2011-01-03 11:45:16,665 - com.learn.servlet3.jardync.DemoWebINFPagesServlet -798293 [http-8080-exec-6] INFO  com.learn.servlet3.jardync.DemoWebINFPagesServlet  - get jar's resource:
[framework] 2011-01-03 11:45:16,665 - com.learn.servlet3.jardync.DemoWebINFPagesServlet -798293 [http-8080-exec-6] INFO  com.learn.servlet3.jardync.DemoWebINFPagesServlet  - the ${JAR}/META-INF/resources/jarfile/demo.txt's content is :
haha,the demo.s's content!
haha,haha,haha!

可以看到getRealPath（"/"）得到的是項目的根路徑（可以參照JAR解壓后的路徑）。而request.getPathTranslated則因為是包含在jar文件中（規范中說包含在遠程主機、數據庫、JAR存檔文件中，getPathTranslated都會返回null），則返回null。

包含在jar中的資源文件，一樣可以使用getResourceAsStream獲取到。

再來看看jar文件META-INF/resources目錄下文件結構：

• css/style.css
• img/j2ee.png
• jarfile/demo.txt
• jarpage/jarhome.jsp
• jsp/h.jsp
• jsp/helloWorld.jsp

很顯然，就是一個小型站點目錄結構。

每一個模塊，建立一個WEB站點應用，使用ANT腳本自動打包成jar文件，拷貝到真正站點WEB-INF/lib下。

假設一個JAR文件包含一個具體的模塊，那么模塊的部署與裝載將是十分方便的。

@RestSupport("/book/*/chapter/*")

但耦合性較強，每寫一個servlet都要添加上一個注解，想降低耦合或者URL經常變動者，可以試試使用XML進行配置：

  <filter>
    <filter-name>RestFilter</filter-name>
    <filter-class>com.servlet.rest.RestFilter</filter-class>
    <init-param>
      <param-name>scanPackage</param-name>
      <param-value>/servlets.xml,/servlets2.xml</param-value>
    </init-param>
  </filter>
  <filter-mapping>
    <filter-name>RestFilter</filter-name>
    <url-pattern>/*</url-pattern>
  </filter-mapping>

為scanPackage參數添加需要傳入的ＸＭＬ文件即可，多個ＸＭＬ配置文件之間需要使用逗號隔開

我們再看看servlets.xml配置文件內容:

<?xml version="1.0" encoding="UTF-8"?>
<servlets>
	<servlet>
		<class>com.yong.test.servlet.xml.WelcomeServlet</class>
		<url>/</url>
		<url>/home/</url>
		<url>/welcome/</url>
	</servlet>
	<servlet>
		<class>com.yong.test.servlet.xml.UserHomeAction</class>
		<url>/user/</url>
	</servlet>
</servlets>

具體到單個servlet配置為

	<servlet>
		<class>servlet 類路徑</class>
		<url>對應URL1</url>
              <url>對應URL2</url>
	</servlet>

其實很簡單的說，嗯，不要忘記xml一定要放在classpath相應位置。

說這個很輕、很微小的框架，一點都不過分，只有10個java文件，只是用注解的話，那就可以減少為7個java文件。

說這個小東西目標明確，一點不摻假，就是為現有的servlet增加rest風格的URL支持，僅此而已。

我們表示一個具有結構形式的URL為:

/book/head first java/chapter/12 看圖說故事

傳統的servlet在URL處怎么映射呢 ？

/book/*

那么chapter怎么辦 ？

/chapter/*（這里假設/book/*排在較上位置）

顯然上面的鏈接地址則很難到達 /chapter/*。當然會有兄弟跳出來說，這一切可以交給 /book/*進行處理，嗯，book也一并處理了chapter部分，當然是可以的，帶來了責任不單一的問題了，混雜在一起，造成代碼管理的混亂。

那么怎么在ServletRest里面怎么做呢 ？

@RestSupport("/book/*/chapter/*")

其風格完全是以往的servlet映射的風格，只不過支持的參數多了些。

更重要的是以往的Servlet編程經驗一點都沒有舍棄，都還保留著。在ServletRest里沒有強迫人們按照新的繼承格式創造一個處理類，還是和以往一樣，創建一個需要繼承 HttpServlet 的servlet，重寫GET、POST、DELETE、PUT等方法，在類的合適位置添加上注解即可:

@RestSupport("/book/*/chapter/*") 即可。當然這部分可以在xml文件中完成配置,下一篇文章會講到。

這里有一個示范：

@RestSupport("/book/*/chapter/*")
public class ChapterServlet extends HttpServlet {
        private static final long serialVersionUID = -1534235656L;

        protected void doGet(HttpServletRequest request,
                        HttpServletResponse response) throws ServletException, IOException {
                // code here ...
        }

        protected void doPost(HttpServletRequest request,
                        HttpServletResponse response) throws ServletException, IOException {
                // code here ...
        }

        protected void doPut(HttpServletRequest request,
                        HttpServletResponse response) throws ServletException, IOException {
                // code here ...
        }

        protected void doDelete(HttpServletRequest request,
                        HttpServletResponse response) throws ServletException, IOException {
                // code here ...
        }
}

那么怎么在項目中使用呢 ？

在web.xml 中配置filter：

<filter>
  <filter-name>RestFilter</filter-name>
  <filter-class>com.servlet.rest.RestFilter</filter-class>
  <init-param>
    <param-name>scanPackage</param-name>
    <param-value>com.yong.test.servlet</param-value>
  </init-param>
</filter>
<filter-mapping>
  <filter-name>RestFilter</filter-name>
  <url-pattern>/*</url-pattern>
</filter-mapping>

scanPackage需要接收一個需要掃描的包的參數，若有多個包，可以包路徑之間有一個分隔符逗號“,”,eg:

com.yong.test.servlet,com.xiaomin.bookstore

ServletRest 注解需要JDK 1.5支持，Servlet 2.*, 3.* 版本，僅僅把ServletRest-0.8.jar （下載地址）放到項目classpath中，并且不依賴于第三方JAR包，除了servlet.jar之外。

在運行期間可以對Servlet的進行動態裝載和卸載等操作，ServletRest已經封裝了相應的接口（必須從全局Context中獲取，下面代碼是從示范JSP代碼中摘取）:

		ServletFactory servletFactory = (ServletFactory)application.getAttribute("servletFactory");

		// 注冊新的Servlet
		String mappingUrl = "新的Servlet映射URL";
		Class servletClass = Class.forName("要映射的Servlet Class路徑");

		servletFactory.register(mappingUrl, servletClass);

		// 注銷Servlet
		//servletFactory.destory(servletClass);

假如不在JSP中操作，那就需要：

getServletContext().getAttribute("servletFactory");

ServletRest遵循的原則和原有的servlet容器處理方式一致，一個URL對應一個Servlet實例原則。

更多信息請閱讀ServletRest源代碼。

/**
* 這次，我們把模板文件放在JAR文件包中
*
* @author xiaomin
*
*/
@WebServlet("/some/")
public class ViewSomethingAction extends HttpServlet {
    private static final long serialVersionUID = 65464645L;
    private static final String DEFAULT_ENCODING = "UTF-8";
    private static final String TEMPLATE_NAME = "some";
    private String templateString;
    private Configuration configuration;
    public void init() throws ServletException {
        configuration = new Configuration();
        configuration.setDefaultEncoding(DEFAULT_ENCODING);
        configuration.setEncoding(Locale.CHINA, DEFAULT_ENCODING);
        // 初始化模板
        templateString = getTemplateString("pages/something.html");
    }
    protected void doGet(HttpServletRequest request,
            HttpServletResponse response) throws ServletException, IOException {
        // 構造要傳遞到模板的屬性值
        Map<String, Object> map = new HashMap<String, Object>();
        map.put("userName", "小敏");
        response.setContentType("text/html; charset=" + DEFAULT_ENCODING);
        printResponsesString(response, map);
    }
    /**
     * 輸出請求內容
     * @param response
     * @param map
     * @throws IOException
     */
    private void printResponsesString(HttpServletResponse response,
            Map<String, Object> map) throws IOException {
        Template template = new Template(TEMPLATE_NAME, new StringReader(
                templateString), configuration, DEFAULT_ENCODING);
        Writer out = response.getWriter();
        try {
            template.process(map, out);
        } catch (TemplateException e) {
            e.printStackTrace();
        } finally {
            out.flush();
            template = null;
        }
    }

    /**
     * 獲取JAR包內的HTML模板文件內容
     * @param jarHtmlPath eg: pages/something.html
     * @return
     */
    private String getTemplateString(String jarHtmlPath) {
        ClassLoader myCL = this.getClass().getClassLoader();
        InputStream is = myCL.getResourceAsStream(jarHtmlPath);
        if (is == null) {
            return null;
        } else {
            try {
                return templateString = IOUtils.toString(is, DEFAULT_ENCODING);
            } catch (IOException e) {
                e.printStackTrace();
                return null;
            }
        }
    }
}

這個沒得說，Tomcat 7 運行要求，最簡單安裝JRE 1.6即可。
下載地址：
http://java.sun.com/javase/downloads/index.jsp

嗯，支持servlet 3.0 注解的IDE，目前是最受歡迎開發工具。
官網地址：
http://www.eclipse.org/downloads/
記得要選擇
 Eclipse IDE for Java EE Developers
32位下載地址：
http://www.eclipse.org/downloads/download.php?file=/technology/epp/downloads/release/helios/R/eclipse-jee-helios-win32.zip

tomcat 7 下載地址：
http://tomcat.apache.org/download-70.cgi
若電腦不是64位，則推薦下載
32-bit Windows zip
http://labs.renren.com/apache-mirror/tomcat/tomcat-7/v7.0.0-beta/bin/apache-tomcat-7.0.0-windows-x86.zip

Servlet的輕巧高效，Freemarker的強大簡便，兩者結合將是超輕的組合，即可避免丑陋的Java代碼和HTML代碼雜揉，又可高效基于模板的站點開發。

閑話少說，項目需要：

freemarker-2.3.13.jar

servlet.jar

定義兩個Servlet：

HelloAction.java 對應 /hello,借助Freemarker硬編碼輸出

public class HelloAction extends HttpServlet {
    private static final long serialVersionUID = -6082007726831320176L;

    private Configuration configuration;
    public void init() throws ServletException {
        configuration = new Configuration();
        configuration.setServletContextForTemplateLoading(getServletContext(), "WEB-INF/pages");
        configuration.setEncoding(Locale.CHINA, "UTF-8");
    }

    @SuppressWarnings("unchecked")
    public void doGet(HttpServletRequest request, HttpServletResponse response) throws ServletException, IOException {
        // 填充數據類型
        Map map = new HashMap();
        map.put("userName", "小敏");
        Template template = configuration.getTemplate("hello.html");
        response.setContentType("text/html; charset=" + template.getEncoding());
        Writer out = response.getWriter();
        try{
            template.process(map, out);
        }catch (TemplateException e) {
            e.printStackTrace();
        }
    }

    public void destroy() {
        super.destroy();
        if(configuration != null){
            configuration = null;
        }
    }
}

對應模板：

<html>
<head>
<meta http-equiv="Content-Type" content="text/html; charset=UTF-8">
<title>使用Freemarker渲染2</title>
</head>
<body>
你好， ${userName!} ！
</body>
</html>

HiAction.java 對應 /hi ，借助Freemrker Servlet的攔截功能，如以往寫代碼方式，感覺不到Freemarker的存在。

public class HiAction extends HttpServlet {
    private static final long serialVersionUID = 518767483952153077L;

    public void doGet(HttpServletRequest request, HttpServletResponse response)
            throws ServletException, IOException {

        request.setAttribute("thename", "小敏");
        request.getRequestDispatcher("/WEB-INF/pages/hi.html").forward(request, response);
    }
}

對應的模板：

<html>
<head>
<meta http-equiv="Content-Type" content="text/html; charset=UTF-8">
<title>使用Freemarker渲染</title>
</head>
<body>
hi ${thename!}~<br />
</body>
</html>

但需要在web.xml 配置文件中定義如下：

<servlet>
    <servlet-name>freemarker</servlet-name>
    <servlet-class>
        freemarker.ext.servlet.FreemarkerServlet
    </servlet-class>

    <!-- FreemarkerServlet settings: -->
    <init-param>
        <param-name>TemplatePath</param-name>
        <param-value>/</param-value>
    </init-param>
    <init-param>
        <param-name>NoCache</param-name>
        <param-value>true</param-value>
    </init-param>
    <init-param>
        <param-name>ContentType</param-name>
        <param-value>text/html; charset=UTF-8</param-value>
        <!-- Forces UTF-8 output encoding! -->
    </init-param>

    <!-- FreeMarker settings: -->
    <init-param>
        <param-name>template_update_delay</param-name>
        <param-value>0</param-value><!-- 0 is for development only! Use higher value otherwise. -->
    </init-param>
    <init-param>
        <param-name>default_encoding</param-name>
        <param-value>UTF-8</param-value><!-- The encoding of the template files. -->
    </init-param>
    <init-param>
        <param-name>number_format</param-name>
        <param-value>0.##########</param-value>
    </init-param>

    <load-on-startup>1</load-on-startup>
</servlet>

<servlet-mapping>
    <servlet-name>freemarker</servlet-name>
    <url-pattern>*.html</url-pattern>
</servlet-mapping>

使用哪一種組合方式，看您喜好了。

借助于Freemarker自身的Servlet工具，只是用于攔截Servlet中forward轉向使用到的HTML資源文件。

很簡陋，但湊合著能看。

項目源代碼已經打包如下：

下載源文件
