          ADF(ORACLE JEE 平臺)中Table的顯示detail功能的使用

                  ADF(Application development Framework)是Oracle主推的JEE平臺的解決方案,其中包括JDeveloper (開發IDE),Weblogic(Server 容器),ADF Faces(JSF 實現), ADF richFaces(JSF 中擴展組件)等等。
          本文主要討論ADF Faces中,如何控制顯示Table的Details信息。

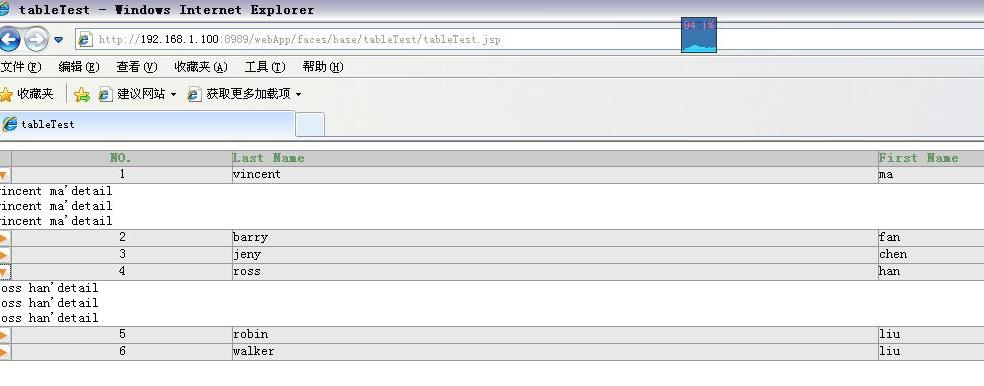

                  ADF Table類似于JSF標準的Table,但提供許多更有用的功能。比如顯示Datail就是很好的功能,如下圖:用戶可以點擊首列小圖表,查看本行詳細信息

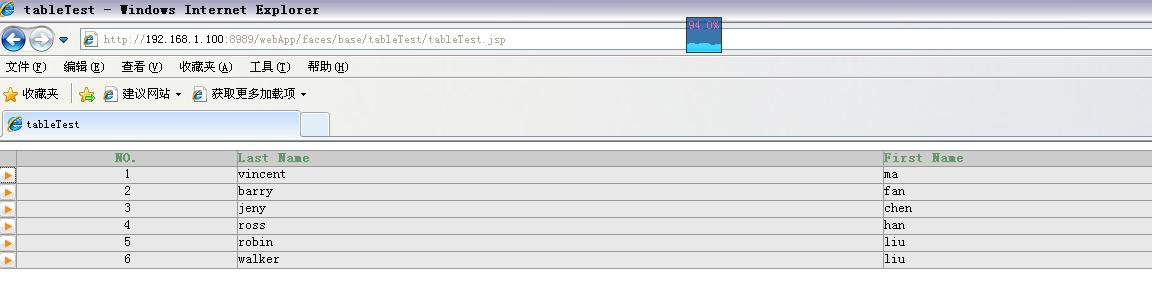

          如下圖顯示:

          下面是相對應的JSP和BackingBean

          <!DOCTYPE HTML PUBLIC "-//W3C//DTD HTML 4.01 Transitional//EN"
          "http://www.w3.org/TR/html4/loose.dtd">
          <%@ page contentType="text/html;charset=GBK"%>
          <%@ taglib uri="http://java.sun.com/jsf/html" prefix="h"%>
          <%@ taglib uri="http://java.sun.com/jsf/core" prefix="f"%>
          <%@ taglib uri="http://xmlns.oracle.com/adf/faces" prefix="af"%>
          <%@ taglib uri="http://xmlns.oracle.com/adf/faces/html" prefix="afh"%>
          <f:view>

          <afh:html>

          <afh:head title="tableTest">

          <meta http-equiv="Content-Type" content="text/html; charset=GBK"/>

          <style type="text/css">
                body
          {
          }

                a:link
          { color: #ffa5a5; }

          </style>

          </afh:head>

          <afh:body>

          <h:form>

          <af:table width="98%" value="#{tableTest.allData}" var="data"
                            emptyText
          ="No Data"
                            disclosureListener="#{tableTest.showDetails}"
           banding="none"
                            varStatus
          ="vs">

          <af:column sortable="true" formatType="icon"
                               inlineStyle
          ="border-color:rgb(0,0,0); border-width:thin; margin:auto; text-align:center;">

          <f:facet name="header">

          <af:outputText value="NO."/>

          </f:facet>

          <af:outputText value="#{data.column1}"/>

          </af:column>

          <af:column  inlineStyle="border-color:rgb(0,0,0); border-width:thin; margin:auto; text-align:center;">

          <f:facet name="header">

          <af:outputText value="Last Name"/>

          </f:facet>

          <af:outputText value="#{data.column2}"/>

          </af:column>

          <af:column  inlineStyle="border-color:rgb(0,0,0); border-width:thin; margin:auto; text-align:center;">

          <f:facet name="header">

          <af:outputText value="First Name"/>

          </f:facet>

          <af:outputText value="#{data.column3}"/>

          </af:column>
                    <f:facet name="detailStamp">
                      <af:panelGroup layout="vertical">
                        <af:outputText rendered="#{tableTest.showDetail}"
                                       value="#{data.detail}"/>
                         <af:outputText rendered="#{tableTest.showDetail}"
                                       value="#{data.detail}"/>
                          <af:outputText rendered="#{tableTest.showDetail}"
                                       value="#{data.detail}"/>


          </af:panelGroup>

          </f:facet>

          </af:table>

          </h:form>

          </afh:body>

          </afh:html>
          </f:view>

          其中紅色部分JSP就是顯示Details信息。
          disclosureListener="#{tableTest.showDetails}" 為Table加一個打開關閉Details信息的監聽器,在監聽器里面控制顯示。

          BackBean如下:

          public class TableDataBackBean {

          private List allData = new ArrayList();

          private boolean showDetail = false

          public TableDataBackBean() {
                  TableData tableDate1
          = new TableData("1","vincent","ma","vincent ma'detail");
                  TableData tableDate2
          = new TableData("2","barry","fan","barry fan'detail");
                  TableData tableDate3
          = new TableData("3","jeny","chen","jeny chen'detail");
                  TableData tableDate4
          = new TableData("4","ross","han","ross han'detail");
                  TableData tableDate5
          = new TableData("5","robin","liu","robin liu'detail");
                  TableData tableDate6
          = new TableData("6","walker","liu","walker liu'detail");
                  allData.add(tableDate1);
                  allData.add(tableDate2);
                  allData.add(tableDate3);
                  allData.add(tableDate4);
                  allData.add(tableDate5);
                  allData.add(tableDate6);


              }


              public void showDetails(DisclosureEvent disclosureEvent) {
                  if(disclosureEvent.isExpanded()){
                    this.showDetail = true;
                    }

              }



          public void setAllData(List allData) {

          this.allData = allData;
              }



          public List getAllData() {

          return allData;
              }



          public void setShowDetail(boolean showDetail) {

          this.showDetail = showDetail;
              }



          public boolean isShowDetail() {

          return showDetail;
              }

          }

          當用戶點擊打開小圖標時,觸發如下事件:
              public void showDetails(DisclosureEvent disclosureEvent) {
                  if(disclosureEvent.isExpanded()){
                    this.showDetail = true;
                    }
              }


          那么,如何只讓它顯示一個Detail 信息呢? 也就是打開第二個時,關閉第一個呢? 很簡單
          修改showDetails方法如下:
              public String oldValue = "";

          public void showDetails(DisclosureEvent disclosureEvent) {
                  CoreTable activityTable1
          = (CoreTable)disclosureEvent.getComponent();

          if(disclosureEvent.isExpanded()){

          this.showDetail = true;
                    }


                  RowKeySet rowKeySet2
          = activityTable1.getDisclosureState();
                    Set set
          =rowKeySet2.getKeySet();
                    Iterator iterator
          = set.iterator();

          if(set.size()==2){

          while(iterator.hasNext()){
                        String temp
          = (String)iterator.next();
                           System.out.println(
          "Old Value:"+oldValue);
                        System.out.println(
          "Two value:"+temp);

          if(!temp.equals(oldValue)){
                            oldValue
          = temp;
                            System.out.println(
          "Set Older Value ="+temp);

          break;
                        }

                       }

                       set.clear();
                       set.add(
          new String(oldValue));
                       System.out.println(
          "Display:"+oldValue);
                    }
          else if(set.size()==1){

          while(iterator.hasNext()){
                         String temp
          = (String)iterator.next();
                             oldValue
          = temp;
                        }

                        set.add(
          new String(oldValue));
                        System.out.println(
          "only One Display:"+oldValue);
                    }



                   activityTable1.setDisclosureState(rowKeySet2);
              }
