flex4出來一段時間了,去年看了一段時間flex3,后來由于暫時沒有項目需求.所以flex遺忘了很多.這次使用flex4+myeclipse8.5錄制了一個視頻.以免時間長了遺忘.
軟件環境:windows7+flex4+myeclipse8.5+blazeds
功能描述:分別用代碼實現了三種flex4與Java通信
三種方式:
1 flex 與普通java類通信RemoteObject
2 flex 與服務器交互HTTPService
3 flex與webservice交互WebService
1 flex 與普通java類通信RemoteObject
普通Java類:
package com.flex.demo;
/** *//**
* 功能描述:該類用來實現flex與普通java類中的方法通信
* @author Administrator
*
*/
public class SimpleService
{
public String sayHello(String name){
return "Hello, "+name;
}
}

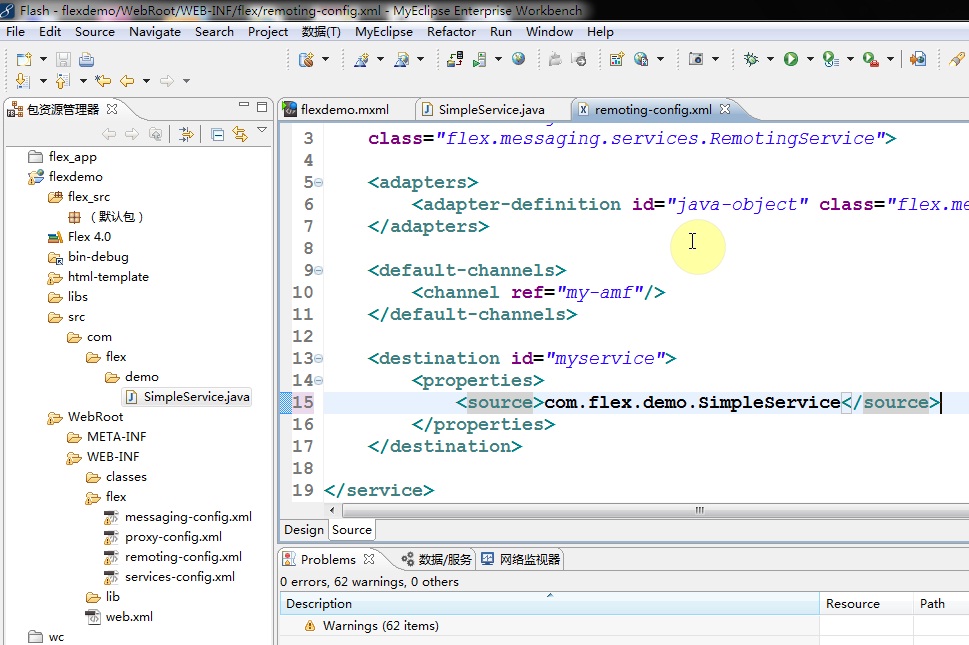

配置說明:配置remoting-config.xml
<destination id="myservice">
<properties>
<source>com.flex.demo.SimpleService</source>
</properties>
</destination>
調用
<!--flex 與普通java類通信-->
<s:RemoteObject id="serv" destination="myservice" fault="serv_faultHandler(event)" result="serv_resultHandler(event)">
</s:RemoteObject>
2flex 與服務器交互HTTPService
servlet代碼
package com.flex.demo;
import java.io.IOException;
import javax.servlet.ServletException;
import javax.servlet.http.HttpServlet;
import javax.servlet.http.HttpServletRequest;
import javax.servlet.http.HttpServletResponse;
/** *//**
* 功能描述:該servlet用來與flex進行交互
* @author Administrator
*
*/
@SuppressWarnings("serial")
public class SimpleServiceServlet extends HttpServlet {
@Override
protected void service(HttpServletRequest request, HttpServletResponse response)
throws ServletException, IOException {
request.setCharacterEncoding("utf-8");
response.setCharacterEncoding("utf-8");
response.getWriter().write("我是服務器");
}
}
調用
<!-- flex 與服務器交互-->
<s:HTTPService id="service" fault="service_faultHandler(event)" result="service_resultHandler(event)" url="http://localhost:8080/flexdemo/simpleServiceServlet">
</s:HTTPService>
3flex與webservice交互WebService
<!--flex與webservice交互這里調用一個天氣預報的webservice-->
<s:WebService id="ws"
wsdl="http://www.webxml.com.cn/WebServices/WeatherWebService.asmx?wsdl"
fault="ws_faultHandler(event)"
result="ws_resultHandler(event)"
showBusyCursor="true">
<!-- 第二種調用webservice的方法<s:operation>-->
<!-- <s:operation name="getWeatherbyCityName"> webservice中的方法名-->
<s:operation name="getWeatherbyCityName">
<!--傳遞的參數-->
<s:request>
<!--參數名稱必須與webservice中定義的參數名一致否則調用不成功報錯-->
<theCityName>
{city.text}
</theCityName>
</s:request>
</s:operation>
</s:WebService>
三種方式完整的配置例子
<?xml version="1.0" encoding="utf-8"?>
<s:Application xmlns:fx="http://ns.adobe.com/mxml/2009"
xmlns:s="library://ns.adobe.com/flex/spark"
xmlns:mx="library://ns.adobe.com/flex/mx" minWidth="955" minHeight="600"
creationComplete="service.send()"
>
<fx:Script>
<![CDATA[
import mx.controls.Alert;
import mx.rpc.events.FaultEvent;
import mx.rpc.events.ResultEvent;
//錯誤處理函數
protected function serv_faultHandler(event:FaultEvent):void
{
Alert.show("調用失敗了:"+event.fault.message as String,"提示");
}
//成功調用函數
protected function serv_resultHandler(event:ResultEvent):void
{
Alert.show("調用成功了:"+event.result as String,"提示");
}
protected function service_faultHandler(event:FaultEvent):void
{
Alert.show("調用失敗了:"+event.fault.message as String,"提示");
}
protected function service_resultHandler(event:ResultEvent):void
{
Alert.show("調用成功了:"+event.result as String,"提示");
}
protected function ws_faultHandler(event:FaultEvent):void
{
Alert.show("調用失敗了:"+event.fault.message as String,"提示");
}
//調用成功了
protected function ws_resultHandler(event:ResultEvent):void
{
trace(event.result);
lbl.text=(String)(event.result);
}
//第一種調用webservice的方法
//此方法調用webservice
protected function btn_clickHandler(event:MouseEvent):void
{
//ws.getWeatherbyCityName(city.text);
//第二中調用webservice的方法
ws.getWeatherbyCityName.send();
}
]]>
</fx:Script>
<fx:Declarations>
<!-- 將非可視元素（例如服務、值對象）放在此處 -->
<!--flex 與普通java類通信-->
<s:RemoteObject id="serv" destination="myservice" fault="serv_faultHandler(event)" result="serv_resultHandler(event)">
</s:RemoteObject>
<!-- flex 與服務器交互-->
<s:HTTPService id="service" fault="service_faultHandler(event)" result="service_resultHandler(event)" url="http://localhost:8080/flexdemo/simpleServiceServlet">
</s:HTTPService>
<!--flex與webservice交互這里調用一個天氣預報的webservice-->
<s:WebService id="ws"
wsdl="http://www.webxml.com.cn/WebServices/WeatherWebService.asmx?wsdl"
fault="ws_faultHandler(event)"
result="ws_resultHandler(event)"
showBusyCursor="true">
<!-- 第二種調用webservice的方法<s:operation>-->
<!-- <s:operation name="getWeatherbyCityName"> webservice中的方法名-->
<s:operation name="getWeatherbyCityName">
<!--傳遞的參數-->
<s:request>
<!--參數名稱必須與webservice中定義的參數名一致否則調用不成功報錯-->
<theCityName>
{city.text}
</theCityName>
</s:request>
</s:operation>
</s:WebService>
</fx:Declarations>
<s:TextInput x="488" y="72" id="city"/>
<s:Button x="633" y="72" label="查看" id="btn" click="btn_clickHandler(event)"/>
<s:Label x="224" y="128" id="lbl" width="820" height="376"/>
</s:Application>
初次接觸flex的朋友,看上面的肯定很迷惑,因此這里錄制了視頻教程,視頻的質量是蠻好的,該視頻從頭至尾演示了flex4整合Java的過程.為了方便在windows平臺下播放,該視頻默認導出格式為exe,在此說明該文件并非病毒,實乃視頻文件,大家可放心觀看.
點我下載flex4與Java交互演示視頻

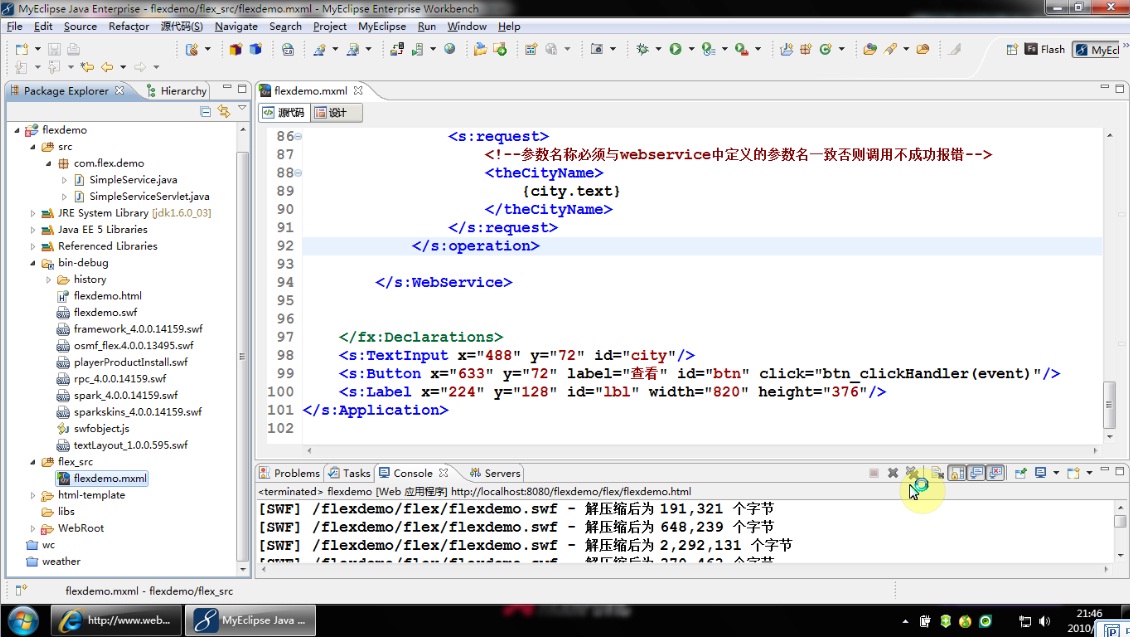

視頻截圖:
點我下載完整的項目文件
