開發工具：Eclipse + MySQL + Tomcat + ConnectionPool
注意：在使用SSH開發中，數據庫是不關閉的，因此使用ConnectionPool是最合適的。
項目主要功能：

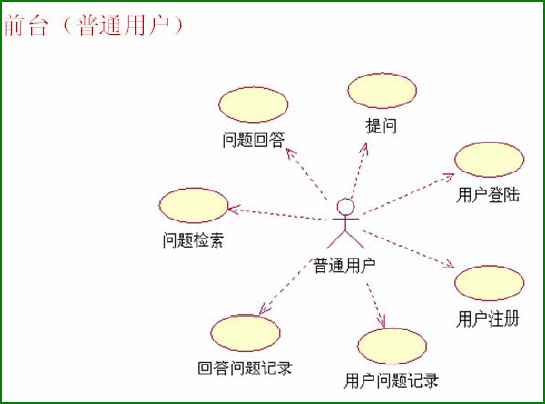

a、前臺
1）用戶登錄、注冊、修改個人信息
2）查詢個人提過的問題
3）檢索問題

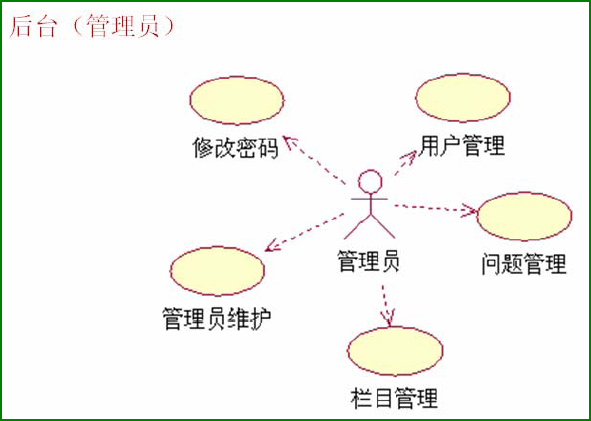

b、后臺
1）管理欄目：一級欄目、二級欄目
2）管理用戶
3）維護管理員信息

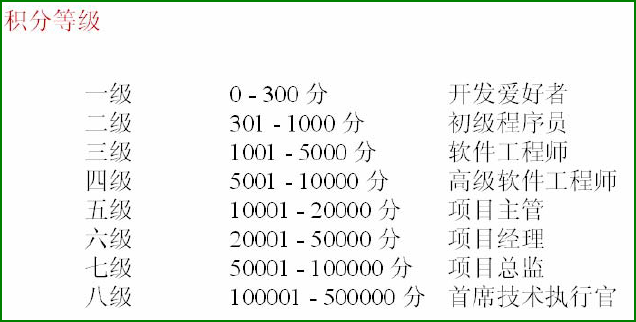

4）用戶等級維護
5）問題維護
數據庫表：
mldn.sql
create database mldn;
use mldn;
drop table if exists admin;
drop table if exists answer;
drop table if exists subitem;
drop table if exists item;
drop table if exists question;
drop table if exists user;
/*==============================================================*/

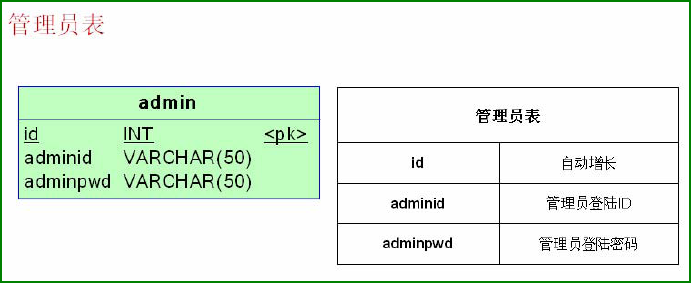

/* Table: admin */
/*==============================================================*/
create table admin
(
id INT AUTO_INCREMENT PRIMARY KEY ,
adminid VARCHAR(50) not null,
adminpwd VARCHAR(50)
) ;
/*==============================================================*/

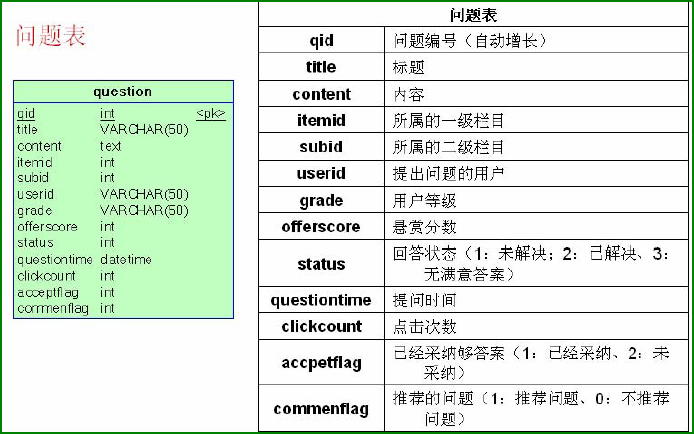

/* Table: question */
/*==============================================================*/
create table question
(
qid int auto_increment not null,
title VARCHAR(50),
content text,
itemid int,
subid int,
userid VARCHAR(50),
grade VARCHAR(50),
offerscore int,
status int,
questiontime datetime,
clickcount int,
acceptflag int,
commenflag int,
primary key (qid)
) ;
/*==============================================================*/

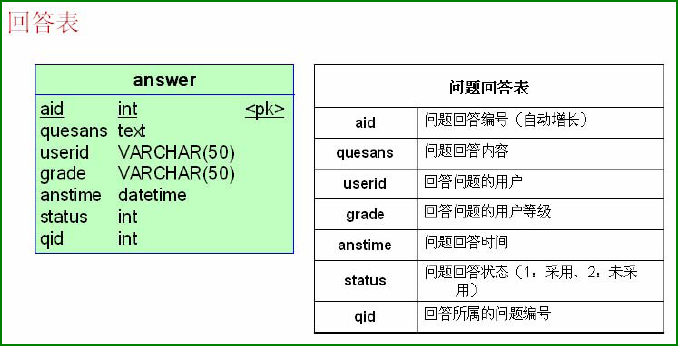

/* Table: answer */
/*==============================================================*/
create table answer
(
aid int auto_increment not null,
quesans VARCHAR(50),
userid VARCHAR(50),
grade VARCHAR(50),
anstime datetime,
status int,
qid int,
primary key (aid) ,
foreign key (qid) references question(qid) on delete cascade
) ;
/*==============================================================*/

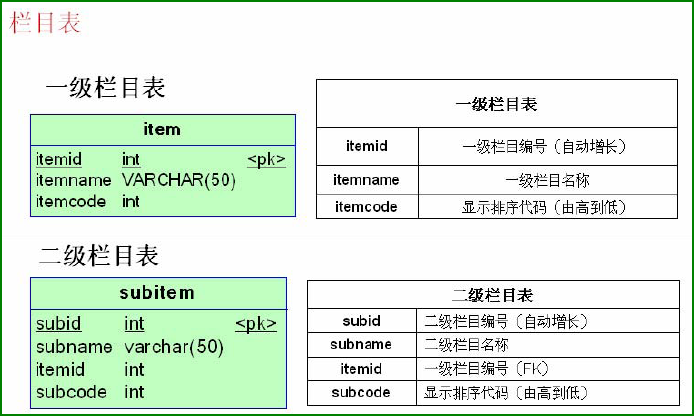

/* Table: item */
/*==============================================================*/
create table item
(
itemid int auto_increment not null,
itemname VARCHAR(50),
itemcode int,
primary key (itemid)
) ;
/*==============================================================*/
/* Table: subitem */
/*==============================================================*/
create table subitem
(
subid int auto_increment not null,
subname varchar(50),
itemid int,
subcode int,
primary key (subid) ,
foreign key (itemid) references item(itemid) on delete cascade
) ;
/*==============================================================*/

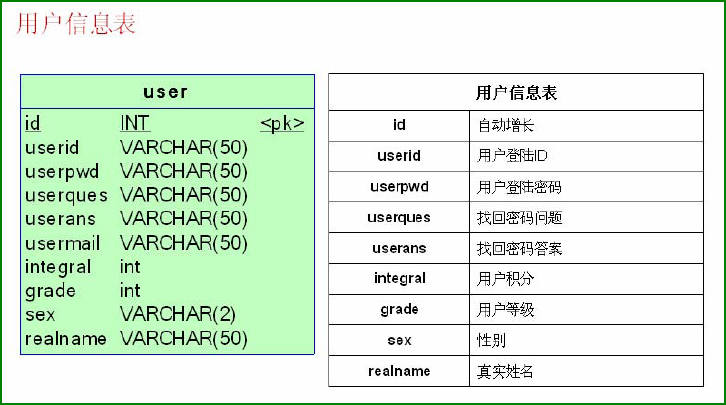

/* Table: user */
/*==============================================================*/
create table user
(
id INT AUTO_INCREMENT PRIMARY KEY ,
userid VARCHAR(50) not null ,
userpwd VARCHAR(50),
userques VARCHAR(50),
userans VARCHAR(50),
usermail VARCHAR(50),
integral int,
grade int,
sex VARCHAR(2),
realname VARCHAR(50)
) ;
為項目添加SSH支持：添加的順序：Spring、Hibernate、Struts
數據庫名稱：mldn

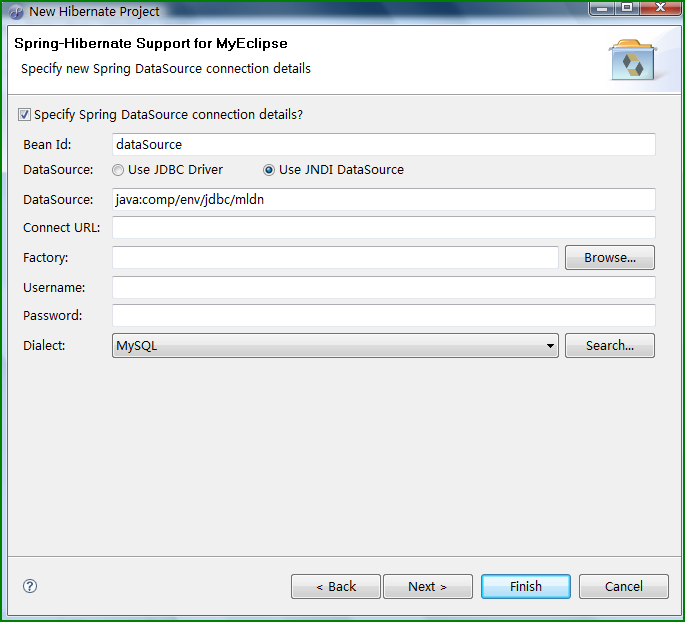

數據源名稱：jdbc/mldn
數據庫連接地址：jdbc:mysql://localhost:3307/mldn
數據庫驅動程序：org.git.mm.mysql.Driver
選擇項目屬性，進入構建路徑，因為在加入時由于開發工具的問題，所以最后確認一下是否所有的包已經被成功地導入到了項目之中。
下面首先配置applicationContext.xml
<?xml version="1.0" encoding="UTF-8"?>
<!DOCTYPE beans PUBLIC "-//SPRING//DTD BEAN//EN" "http://www.springframework.org/dtd/spring-beans.dtd">
<beans>
<bean id="dataSource"
class="org.springframework.jndi.JndiObjectFactoryBean">
<property name="jndiName" value="java:comp/env/jdbc/mldn"></property>
</bean>
<bean id="sessionFactory"
class="org.springframework.orm.hibernate3.LocalSessionFactoryBean">
<property name="dataSource">
<ref bean="dataSource" />
</property>
<property name="hibernateProperties">
<props>
<prop key="hibernate.dialect">
org.hibernate.dialect.MySQLDialect
</prop>
<!-- 表示允許自動提交 -->
<prop key="hibernate.connection.autocommit">true</prop>
<!-- 顯示sql語句 -->
<prop key="hibernate.show_sql">true</prop>
</props>
</property>
</bean>
<bean id="hibernateTemplate"
class="org.springframework.orm.hibernate3.HibernateTemplate">
<property name="sessionFactory">
<ref bean="sessionFactory"/>
</property>
</bean>
</beans>
編寫web.xml(代碼里加粗的為自己寫）
<?xml version="1.0" encoding="UTF-8"?>
<web-app xmlns="http://java.sun.com/xml/ns/j2ee"
xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" version="2.4"
xsi:schemaLocation="http://java.sun.com/xml/ns/j2ee http://java.sun.com/xml/ns/j2ee/web-app_2_4.xsd">
<context-param>
<param-name>contextConfigLocation</param-name>
<param-value>
/WEB-INF/classes/applicationContext.xml
</param-value>
</context-param>
<servlet>
<servlet-name>context</servlet-name>
<servlet-class>
org.springframework.web.context.ContextLoaderServlet
</servlet-class>
<load-on-startup>1</load-on-startup>
</servlet>
<servlet>
<servlet-name>action</servlet-name>
<servlet-class>org.apache.struts.action.ActionServlet</servlet-class>
<init-param>
<param-name>config</param-name>
<param-value>/WEB-INF/struts-config.xml</param-value>
</init-param>
<init-param>
<param-name>debug</param-name>
<param-value>3</param-value>
</init-param>
<init-param>
<param-name>detail</param-name>
<param-value>3</param-value>
</init-param>
<load-on-startup>0</load-on-startup>
</servlet>
<servlet-mapping>
<servlet-name>action</servlet-name>
<url-pattern>*.do</url-pattern>
</servlet-mapping>
</web-app>

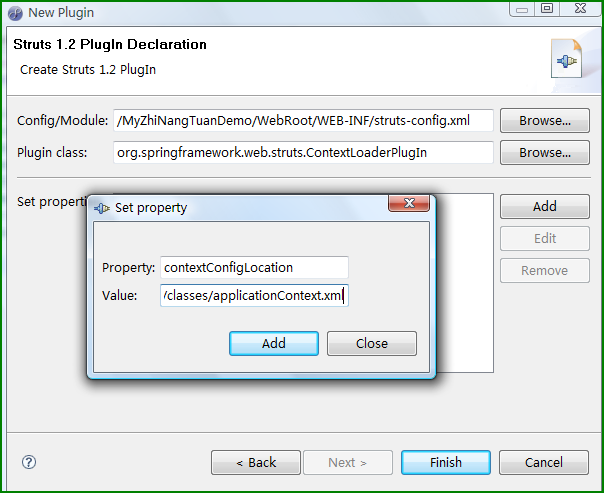

編寫struts-config.xml
new/.../Struts1.2 Plugin
<?xml version="1.0" encoding="UTF-8"?>
<!DOCTYPE struts-config PUBLIC "-//Apache Software Foundation//DTD Struts Configuration 1.2//EN" "http://struts.apache.org/dtds/struts-config_1_2.dtd">
<struts-config>
<data-sources />
<form-beans />
<global-exceptions />
<global-forwards />
<action-mappings />
<controller
processorClass="org.springframework.web.struts.DelegatingRequestProcessor">
</controller>
<message-resources
parameter="org.lxh.myzngt.struts.ApplicationResources" />
<plug-in
className="org.springframework.web.struts.ContextLoaderPlugIn">
<set-property property="contextConfigLocation"
value="/WEB-INF/classes/applicationContext.xml" />
</plug-in>
</struts-config>
要求：關于亂碼解決問題，使用過濾器解決中文亂碼問題
編寫EncodingFilter.java
首先需要修改web.xml
<?xml version="1.0" encoding="UTF-8"?>
<web-app xmlns="http://java.sun.com/xml/ns/j2ee"
xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" version="2.4"
xsi:schemaLocation="http://java.sun.com/xml/ns/j2ee http://java.sun.com/xml/ns/j2ee/web-app_2_4.xsd">
<filter>
<filter-name>encoding</filter-name>
<filter-class>
org.lxh.myzngt.filter.EncodingFilter
</filter-class>
<init-param>
<param-name>charset</param-name>
<param-value>gbk</param-value>
</init-param>
</filter>
<filter-mapping>
<filter-name>encoding</filter-name>
<url-pattern>/*</url-pattern>
</filter-mapping>
<context-param>
<param-name>contextConfigLocation</param-name>
<param-value>
/WEB-INF/classes/applicationContext.xml
</param-value>
</context-param>
<servlet>
<servlet-name>context</servlet-name>
<servlet-class>
org.springframework.web.context.ContextLoaderServlet
</servlet-class>
<load-on-startup>1</load-on-startup>
</servlet>
<servlet>
<servlet-name>action</servlet-name>
<servlet-class>org.apache.struts.action.ActionServlet</servlet-class>
<init-param>
<param-name>config</param-name>
<param-value>/WEB-INF/struts-config.xml</param-value>
</init-param>
<init-param>
<param-name>debug</param-name>
<param-value>3</param-value>
</init-param>
<init-param>
<param-name>detail</param-name>
<param-value>3</param-value>
</init-param>
<load-on-startup>0</load-on-startup>
</servlet>
<servlet-mapping>
<servlet-name>action</servlet-name>
<url-pattern>*.do</url-pattern>
</servlet-mapping>
</web-app>
package org.lxh.myzngt.filter;
import java.io.IOException;
import javax.servlet.Filter;
import javax.servlet.FilterChain;
import javax.servlet.FilterConfig;
import javax.servlet.ServletException;
import javax.servlet.ServletRequest;
import javax.servlet.ServletResponse;
public class EncodingFilter implements Filter {
private String charset = null;
public void destroy() {
}
public void doFilter(ServletRequest req, ServletResponse resp,
FilterChain chain) throws IOException, ServletException {
req.setCharacterEncoding(this.charset);
chain.doFilter(req, resp);
}
public void init(FilterConfig arg0) throws ServletException {
this.charset = arg0.getInitParameter("charset");
}
}
在整個程序之中需要一下兩個部分的支持
1）MD5加密
用戶登錄案例，所有的用戶名和密碼都是以明文形式出現的，那么這就造成了一個不安全的隱患，如果數據庫被黑了，則所有的信息也就可以看見了，所以為了保證數據的安全性，使用MD5加密，MD5是不可逆編碼。
2）驗證碼
在各個論壇無論是登錄還是發表信息，都需要在最后添加一段額外的代碼，這些代碼就是驗證碼，作用是防止灌水。
編寫MD5Code.java
package org.lxh.myzngt.util;
public class MD5Code {
/*
* 下面這些S11-S44實際上是一個4*4的矩陣，在原始的C實現中是用#define 實現的， 這里把它們實現成為static
* final是表示了只讀，切能在同一個進程空間內的多個 Instance間共享
*/
static final int S11 = 7;
static final int S12 = 12;
static final int S13 = 17;
static final int S14 = 22;
static final int S21 = 5;
static final int S22 = 9;
static final int S23 = 14;
static final int S24 = 20;
static final int S31 = 4;
static final int S32 = 11;
static final int S33 = 16;
static final int S34 = 23;
static final int S41 = 6;
static final int S42 = 10;
static final int S43 = 15;
static final int S44 = 21;
static final byte[] PADDING = { -128, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0,
0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0,
0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0,
0, 0, 0, 0, 0, 0, 0 };
/*
* 下面的三個成員是MD5計算過程中用到的3個核心數據，在原始的C實現中 被定義到MD5_CTX結構中
*/
private long[] state = new long[4];// state (ABCD)
private long[] count = new long[2];// number of bits, modulo 2^64 (lsb
// first)
private byte[] buffer = new byte[64]; // input buffer
/*
* digestHexStr是MD5的唯一一個公共成員，是最新一次計算結果的 16進制ASCII表示.
*/
public String digestHexStr;
/*
* digest,是最新一次計算結果的2進制內部表示，表示128bit的MD5值.
*/
private byte[] digest = new byte[16];
/*
* getMD5ofStr是類MD5最主要的公共方法，入口參數是你想要進行MD5變換的字符串
* 返回的是變換完的結果，這個結果是從公共成員digestHexStr取得的．
*/
public String getMD5ofStr(String inbuf) {
md5Init();
md5Update(inbuf.getBytes(), inbuf.length());
md5Final();
digestHexStr = "";
for (int i = 0; i < 16; i++) {
digestHexStr += byteHEX(digest[i]);
}
return digestHexStr;
}
// 這是MD5這個類的標準構造函數，JavaBean要求有一個public的并且沒有參數的構造函數
public MD5Code() {
md5Init();
return;
}
/* md5Init是一個初始化函數，初始化核心變量，裝入標準的幻數 */
private void md5Init() {
count[0] = 0L;
count[1] = 0L;
// /* Load magic initialization constants.
state[0] = 0x67452301L;
state[1] = 0xefcdab89L;
state[2] = 0x98badcfeL;
state[3] = 0x10325476L;
return;
}
/*
* F, G, H ,I 是4個基本的MD5函數，在原始的MD5的C實現中，由于它們是
* 簡單的位運算，可能出于效率的考慮把它們實現成了宏，在java中，我們把它們 實現成了private方法，名字保持了原來C中的。
*/
private long F(long x, long y, long z) {
return (x & y) | ((~x) & z);
}
private long G(long x, long y, long z) {
return (x & z) | (y & (~z));
}
private long H(long x, long y, long z) {
return x ^ y ^ z;
}
private long I(long x, long y, long z) {
return y ^ (x | (~z));
}
/*
* FF,GG,HH和II將調用F,G,H,I進行近一步變換 FF, GG, HH, and II transformations for
* rounds 1, 2, 3, and 4. Rotation is separate from addition to prevent
* recomputation.
*/
private long FF(long a, long b, long c, long d, long x, long s, long ac) {
a += F(b, c, d) + x + ac;
a = ((int) a << s) | ((int) a >>> (32 - s));
a += b;
return a;
}
private long GG(long a, long b, long c, long d, long x, long s, long ac) {
a += G(b, c, d) + x + ac;
a = ((int) a << s) | ((int) a >>> (32 - s));
a += b;
return a;
}
private long HH(long a, long b, long c, long d, long x, long s, long ac) {
a += H(b, c, d) + x + ac;
a = ((int) a << s) | ((int) a >>> (32 - s));
a += b;
return a;
}
private long II(long a, long b, long c, long d, long x, long s, long ac) {
a += I(b, c, d) + x + ac;
a = ((int) a << s) | ((int) a >>> (32 - s));
a += b;
return a;
}
/*
* md5Update是MD5的主計算過程，inbuf是要變換的字節串，inputlen是長度，這個
* 函數由getMD5ofStr調用，調用之前需要調用md5init，因此把它設計成private的
*/
private void md5Update(byte[] inbuf, int inputLen) {
int i, index, partLen;
byte[] block = new byte[64];
index = (int) (count[0] >>> 3) & 0x3F;
// /* Update number of bits */
if ((count[0] += (inputLen << 3)) < (inputLen << 3))
count[1]++;
count[1] += (inputLen >>> 29);
partLen = 64 - index;
// Transform as many times as possible.
if (inputLen >= partLen) {
md5Memcpy(buffer, inbuf, index, 0, partLen);
md5Transform(buffer);
for (i = partLen; i + 63 < inputLen; i += 64) {
md5Memcpy(block, inbuf, 0, i, 64);
md5Transform(block);
}
index = 0;
} else
i = 0;
// /* Buffer remaining input */
md5Memcpy(buffer, inbuf, index, i, inputLen - i);
}
/*
* md5Final整理和填寫輸出結果
*/
private void md5Final() {
byte[] bits = new byte[8];
int index, padLen;
// /* Save number of bits */
Encode(bits, count, 8);
// /* Pad out to 56 mod 64.
index = (int) (count[0] >>> 3) & 0x3f;
padLen = (index < 56) ? (56 - index) : (120 - index);
md5Update(PADDING, padLen);
// /* Append length (before padding) */
md5Update(bits, 8);
// /* Store state in digest */
Encode(digest, state, 16);
}
/*
* md5Memcpy是一個內部使用的byte數組的塊拷貝函數，從input的inpos開始把len長度的
* 字節拷貝到output的outpos位置開始
*/
private void md5Memcpy(byte[] output, byte[] input, int outpos, int inpos,
int len) {
int i;
for (i = 0; i < len; i++)
output[outpos + i] = input[inpos + i];
}
/*
* md5Transform是MD5核心變換程序，有md5Update調用，block是分塊的原始字節
*/
private void md5Transform(byte block[]) {
long a = state[0], b = state[1], c = state[2], d = state[3];
long[] x = new long[16];
Decode(x, block, 64);
/* Round 1 */
a = FF(a, b, c, d, x[0], S11, 0xd76aa478L); /* 1 */
d = FF(d, a, b, c, x[1], S12, 0xe8c7b756L); /* 2 */
c = FF(c, d, a, b, x[2], S13, 0x242070dbL); /* 3 */
b = FF(b, c, d, a, x[3], S14, 0xc1bdceeeL); /* 4 */
a = FF(a, b, c, d, x[4], S11, 0xf57c0fafL); /* 5 */
d = FF(d, a, b, c, x[5], S12, 0x4787c62aL); /* 6 */
c = FF(c, d, a, b, x[6], S13, 0xa8304613L); /* 7 */
b = FF(b, c, d, a, x[7], S14, 0xfd469501L); /* 8 */
a = FF(a, b, c, d, x[8], S11, 0x698098d8L); /* 9 */
d = FF(d, a, b, c, x[9], S12, 0x8b44f7afL); /* 10 */
c = FF(c, d, a, b, x[10], S13, 0xffff5bb1L); /* 11 */
b = FF(b, c, d, a, x[11], S14, 0x895cd7beL); /* 12 */
a = FF(a, b, c, d, x[12], S11, 0x6b901122L); /* 13 */
d = FF(d, a, b, c, x[13], S12, 0xfd987193L); /* 14 */
c = FF(c, d, a, b, x[14], S13, 0xa679438eL); /* 15 */
b = FF(b, c, d, a, x[15], S14, 0x49b40821L); /* 16 */
/* Round 2 */
a = GG(a, b, c, d, x[1], S21, 0xf61e2562L); /* 17 */
d = GG(d, a, b, c, x[6], S22, 0xc040b340L); /* 18 */
c = GG(c, d, a, b, x[11], S23, 0x265e5a51L); /* 19 */
b = GG(b, c, d, a, x[0], S24, 0xe9b6c7aaL); /* 20 */
a = GG(a, b, c, d, x[5], S21, 0xd62f105dL); /* 21 */
d = GG(d, a, b, c, x[10], S22, 0x2441453L); /* 22 */
c = GG(c, d, a, b, x[15], S23, 0xd8a1e681L); /* 23 */
b = GG(b, c, d, a, x[4], S24, 0xe7d3fbc8L); /* 24 */
a = GG(a, b, c, d, x[9], S21, 0x21e1cde6L); /* 25 */
d = GG(d, a, b, c, x[14], S22, 0xc33707d6L); /* 26 */
c = GG(c, d, a, b, x[3], S23, 0xf4d50d87L); /* 27 */
b = GG(b, c, d, a, x[8], S24, 0x455a14edL); /* 28 */
a = GG(a, b, c, d, x[13], S21, 0xa9e3e905L); /* 29 */
d = GG(d, a, b, c, x[2], S22, 0xfcefa3f8L); /* 30 */
c = GG(c, d, a, b, x[7], S23, 0x676f02d9L); /* 31 */
b = GG(b, c, d, a, x[12], S24, 0x8d2a4c8aL); /* 32 */
/* Round 3 */
a = HH(a, b, c, d, x[5], S31, 0xfffa3942L); /* 33 */
d = HH(d, a, b, c, x[8], S32, 0x8771f681L); /* 34 */
c = HH(c, d, a, b, x[11], S33, 0x6d9d6122L); /* 35 */
b = HH(b, c, d, a, x[14], S34, 0xfde5380cL); /* 36 */
a = HH(a, b, c, d, x[1], S31, 0xa4beea44L); /* 37 */
d = HH(d, a, b, c, x[4], S32, 0x4bdecfa9L); /* 38 */
c = HH(c, d, a, b, x[7], S33, 0xf6bb4b60L); /* 39 */
b = HH(b, c, d, a, x[10], S34, 0xbebfbc70L); /* 40 */
a = HH(a, b, c, d, x[13], S31, 0x289b7ec6L); /* 41 */
d = HH(d, a, b, c, x[0], S32, 0xeaa127faL); /* 42 */
c = HH(c, d, a, b, x[3], S33, 0xd4ef3085L); /* 43 */
b = HH(b, c, d, a, x[6], S34, 0x4881d05L); /* 44 */
a = HH(a, b, c, d, x[9], S31, 0xd9d4d039L); /* 45 */
d = HH(d, a, b, c, x[12], S32, 0xe6db99e5L); /* 46 */
c = HH(c, d, a, b, x[15], S33, 0x1fa27cf8L); /* 47 */
b = HH(b, c, d, a, x[2], S34, 0xc4ac5665L); /* 48 */
/* Round 4 */
a = II(a, b, c, d, x[0], S41, 0xf4292244L); /* 49 */
d = II(d, a, b, c, x[7], S42, 0x432aff97L); /* 50 */
c = II(c, d, a, b, x[14], S43, 0xab9423a7L); /* 51 */
b = II(b, c, d, a, x[5], S44, 0xfc93a039L); /* 52 */
a = II(a, b, c, d, x[12], S41, 0x655b59c3L); /* 53 */
d = II(d, a, b, c, x[3], S42, 0x8f0ccc92L); /* 54 */
c = II(c, d, a, b, x[10], S43, 0xffeff47dL); /* 55 */
b = II(b, c, d, a, x[1], S44, 0x85845dd1L); /* 56 */
a = II(a, b, c, d, x[8], S41, 0x6fa87e4fL); /* 57 */
d = II(d, a, b, c, x[15], S42, 0xfe2ce6e0L); /* 58 */
c = II(c, d, a, b, x[6], S43, 0xa3014314L); /* 59 */
b = II(b, c, d, a, x[13], S44, 0x4e0811a1L); /* 60 */
a = II(a, b, c, d, x[4], S41, 0xf7537e82L); /* 61 */
d = II(d, a, b, c, x[11], S42, 0xbd3af235L); /* 62 */
c = II(c, d, a, b, x[2], S43, 0x2ad7d2bbL); /* 63 */
b = II(b, c, d, a, x[9], S44, 0xeb86d391L); /* 64 */
state[0] += a;
state[1] += b;
state[2] += c;
state[3] += d;
}
/*
* Encode把long數組按順序拆成byte數組，因為java的long類型是64bit的， 只拆低32bit，以適應原始C實現的用途
*/
private void Encode(byte[] output, long[] input, int len) {
int i, j;
for (i = 0, j = 0; j < len; i++, j += 4) {
output[j] = (byte) (input[i] & 0xffL);
output[j + 1] = (byte) ((input[i] >>> 8) & 0xffL);
output[j + 2] = (byte) ((input[i] >>> 16) & 0xffL);
output[j + 3] = (byte) ((input[i] >>> 24) & 0xffL);
}
}
/*
* Decode把byte數組按順序合成成long數組，因為java的long類型是64bit的，
* 只合成低32bit，高32bit清零，以適應原始C實現的用途
*/
private void Decode(long[] output, byte[] input, int len) {
int i, j;
for (i = 0, j = 0; j < len; i++, j += 4)
output[i] = b2iu(input[j]) | (b2iu(input[j + 1]) << 8)
| (b2iu(input[j + 2]) << 16) | (b2iu(input[j + 3]) << 24);
return;
}
/*
* b2iu是我寫的一個把byte按照不考慮正負號的原則的＂升位＂程序，因為java沒有unsigned運算
*/
public static long b2iu(byte b) {
return b < 0 ? b & 0x7F + 128 : b;
}
/*
* byteHEX()，用來把一個byte類型的數轉換成十六進制的ASCII表示，
* 因為java中的byte的toString無法實現這一點，我們又沒有C語言中的 sprintf(outbuf,"%02X",ib)
*/
public static String byteHEX(byte ib) {
char[] Digit = { '0', '1', '2', '3', '4', '5', '6', '7', '8', '9', 'A',
'B', 'C', 'D', 'E', 'F' };
char[] ob = new char[2];
ob[0] = Digit[(ib >>> 4) & 0X0F];
ob[1] = Digit[ib & 0X0F];
String s = new String(ob);
return s;
}
}
它其實是一個小工具，可以從網上下載，下面來驗證MD5
編寫TestMD5.java
package org.lxh.myzngt.test;
import org.lxh.myzngt.util.MD5Code;
public class TestMD5 {
public static void main(String [] args) {
MD5Code md5 = new MD5Code();
String str = "lixinghua";
System.out.println(md5.getMD5ofStr(str));
str = "lixinghuadfadafasfdafadsfdasdfasfds";
System.out.println(md5.getMD5ofStr(str));
System.out.println(md5.getMD5ofStr(str).equals(md5.getMD5ofStr(str)));
System.out.println(md5.getMD5ofStr(str).equals(md5.getMD5ofStr("abcdef")));
System.out.println(md5.getMD5ofStr(str).length());
}
}
FBD43608F5808B5BAA4CD9774D02A7B9
158E3E2372A4BF46F5CEEA09CF75C29D
true
false
32
WEB目錄結構：
|-jsp：存放全部的jsp文件
|-images：存放全部的圖片
|-css：存放css
|-js：存放全部的js文件
|-inc：存放全部的導入文件
|-WEB-INF
|-classes
|-lib
|-web.xml
cp配置（就加在</host>上面）
<Context path="/zhinangtuan" docBase="E:\myeclipseworkspace\MyZhiNangTuanDemo\WebRoot"
debug="5" reloadable="true" crossContext="true">
<Logger className="org.apache.catalina.logger.FileLogger"
prefix="localhost_MysqlTest_log." suffix=".txt"
timestamp="true"/>
<Resource name="jdbc/mldn" auth="Container" type="javax.sql.DataSource"/>
<ResourceParams name="jdbc/mldn">
<parameter>
<name>factory</name>
<value>org.apache.commons.dbcp.BasicDataSourceFactory</value>
</parameter>
<parameter>
<name>maxActive</name>
<value>100</value>
</parameter>
<parameter>
<name>maxIdle</name>
<value>30</value>
</parameter>
<parameter>
<name>maxWait</name>
<value>5000</value>
</parameter>
<parameter>
<name>username</name>
<value>root</value>
</parameter>
<parameter>
<name>password</name>
<value></value>
</parameter>
<parameter>
<name>driverClassName</name>
<value>org.gjt.mm.mysql.Driver</value>
</parameter>
<parameter>
<name>url</name>
<value>jdbc:mysql://localhost:3307/mldn</value>
</parameter>
</ResourceParams>
</Context>
在WebRoot下新建jsp、inc、css、js、images文件夾
在jsp中編寫images.jsp、split_page.jsp
<%@ page contentType="image/jpeg" import="java.awt.*,java.awt.image.*,java.util.*,javax.imageio.*" %>
<%!
Color getRandColor(int fc,int bc){//給定范圍獲得隨機顏色
Random random = new Random();
if(fc>255) fc=255;
if(bc>255) bc=255;
int r=fc+random.nextInt(bc-fc);
int g=fc+random.nextInt(bc-fc);
int b=fc+random.nextInt(bc-fc);
return new Color(r,g,b);
}
%>
<%
//設置頁面不緩存
response.setHeader("Pragma","No-cache");
response.setHeader("Cache-Control","no-cache");
response.setDateHeader("Expires", 0);
// 在內存中創建圖象
int width=60, height=20;
BufferedImage image = new BufferedImage(width, height, BufferedImage.TYPE_INT_RGB);
// 獲取圖形上下文
Graphics g = image.getGraphics();
//生成隨機類
Random random = new Random();
// 設定背景色
g.setColor(getRandColor(200,250));
g.fillRect(0, 0, width, height);
//設定字體
g.setFont(new Font("Times New Roman",Font.PLAIN,18));
//畫邊框
//g.setColor(new Color());
//g.drawRect(0,0,width-1,height-1);
// 隨機產生155條干擾線，使圖象中的認證碼不易被其它程序探測到
g.setColor(getRandColor(160,200));
for (int i=0;i<155;i++)
{
int x = random.nextInt(width);
int y = random.nextInt(height);
int xl = random.nextInt(12);
int yl = random.nextInt(12);
g.drawLine(x,y,x+xl,y+yl);
}
// 取隨機產生的認證碼(4位數字)
//String rand = request.getParameter("rand");
//rand = rand.substring(0,rand.indexOf("."));
String sRand="";
for (int i=0;i<4;i++){
String rand=String.valueOf(random.nextInt(10));
sRand+=rand;
// 將認證碼顯示到圖象中
g.setColor(new Color(20+random.nextInt(110),20+random.nextInt(110),20+random.nextInt(110)));//調用函數出來的顏色相同，可能是因為種子太接近，所以只能直接生成
g.drawString(rand,13*i+6,16);
}
// 將認證碼存入SESSION
session.setAttribute("ccode",sRand);
// 圖象生效
g.dispose();
// 輸出圖象到頁面
ImageIO.write(image, "JPEG", response.getOutputStream());
%>
<%@ page contentType="text/html;charset=gbk"%>
<%
// 頁面連接路徑
String jspUrl = null ;
// 定義如下分頁變量
// 1、定義沒頁要顯示的記錄數，默認是10條每頁
int lineSize = 10 ;
// 2、定義一個當前是第幾頁
int currentPage = 1 ;
// 計算出總頁數
int pageSize = 0 ;
// 總記錄數 / 每頁顯示的記錄數
int allRecorders = 0 ;
// 加入查詢關鍵字變量
String keyWord = null ;
// 加入一個檢索標記
String searchFlag = "F" ;
%>
<%
// 需要從外面接收以下參數
// 當前頁、每頁顯示的記錄數、總記錄數、查詢關鍵字、連接地址
jspUrl = request.getParameter("jspUrl") ;
keyWord = request.getParameter("keyWord") ;
searchFlag = request.getParameter("searchFlag") ;
try
{
lineSize = Integer.parseInt(request.getParameter("lineSize")) ;
currentPage = Integer.parseInt(request.getParameter("currentPage")) ;
allRecorders = Integer.parseInt(request.getParameter("allRecorders")) ;
}
catch(Exception e)
{
// s
}
%>
<%
// 計算總頁數
pageSize = (allRecorders+lineSize-1)/lineSize ;
%>
<script language="javaScript">
function openPage(curpage)
{
document.spage.cp.value = curpage ;
// alert(cupage) ;
document.spage.submit() ;
}
function selOpenPage()
{
document.spage.cp.value = document.spage.selpage.value ;
document.spage.submit() ;
}
function change()
{
if(document.spage.kw.value!="")
{
document.spage.status.value = "selectlike" ;
}
}
</script>
<form name="spage" action="<%=jspUrl%>" onSubmit="change()">
<input type="hidden"
name="status" value="${status}"> <input type="hidden"
name="${param.flagname}" value=${param.flagvalue}> <%
if ("T".equals(searchFlag)) {
%> 輸入查詢關鍵字：<input type="text" name="kw"
value="<%=keyWord.equals("null") ? "" : keyWord%>"> <input
type="submit" value="查詢"> <br>
<br>
<%
}
%> <%
if (allRecorders > 0) {
%> <input type="button" value="首頁" onClick="openPage(1)"
<%=currentPage == 1 ? "disabled" : ""%>> <input type="button"
value="上一頁" onClick="openPage(<%=currentPage - 1%>)"
<%=currentPage == 1 ? "disabled" : ""%>> <input type="button"
value="下一頁" onClick="openPage(<%=currentPage + 1%>)"
<%=currentPage == pageSize ? "disabled" : ""%>> <input type="button"
value="尾頁" onClick="openPage(<%=pageSize%>)"
<%=currentPage == pageSize ? "disabled" : ""%>> <input type="hidden"
name="cp" value=""> <font color="red" size="5"><%=currentPage%></font>
/ <font color="red" size="5"><%=pageSize%></font> 跳轉到 <select
name="selpage" onChange="selOpenPage()">
<%
for (int x = 1; x <= pageSize; x++) {
%>
<option value="<%=x%>" <%=currentPage == x ? "selected" : ""%>><%=x%></option>
<%
}
%>
</select> 頁 <%
}
%>
</form>
編寫index.jsp
驗證這個服務器能不能正常啟動可以正常啟動（我把jar包換成了作者的jar包）
本集到此為至
