				CXF+Spring+Tomcat簡明示例


 			Posted on 2012-07-06 17:29 IceWee 閱讀(51161) 評論(27)  編輯  收藏  所屬分類: Others 、Tomcat









多系統（異構系統）進行交互時，一種良好的方式便是調用Web Service，本示例基于Apache組織的CXF，為了方便起見特將服務端和客戶端寫在同一個工程下，實際項目中是不可能的，但是客戶端卻依賴于服務端的Web Service接口，那么可以通過導出jar的方式。

          環境：
          MyEclipse10
          JDK6
          Tomcat7
          CXF2.5
          Spring3

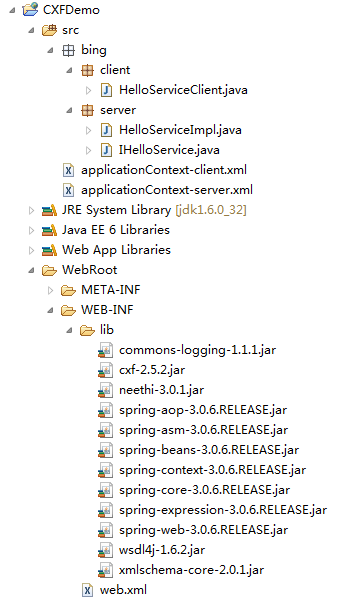

          示例項目結構圖：


          如上圖所示，全部依賴的第三方庫都在lib中，下面貼出全部代碼。
          IHelloService.java
          package bing.server;

          import javax.jws.WebService;

          /**
           * <p>
           * WebService接口
           * </p>
           *
           *           @author IceWee
           * @date 2012-7-6
           *           @version 1.0
                     */
          @WebService
          public interface IHelloService {

                        public String sayHello(String username);

          }

          HelloServiceImpl.java
          package bing.server;

          import javax.jws.WebService;

          /**
           * <p>
           * WebService實現類
           * </p>
           *
           *           @author IceWee
           * @date 2012-7-6
           *           @version 1.0
                     */
          @WebService(endpointInterface           = "bing.server.IHelloService", serviceName = "HelloService")
          public class HelloServiceImpl implements IHelloService {

              @Override
                        public String sayHello(String username) {
                            return "hello, " + username;
              }

          }

          HelloServiceClient.java
          package bing.client;

          import org.springframework.context.ApplicationContext;
          import org.springframework.context.support.ClassPathXmlApplicationContext;

          import bing.server.IHelloService;

          /**
           * <p>
           * WebService調用方-客戶端
           * </p>
           *
           *           @author IceWee
           * @date 2012-7-6
           *           @version 1.0
                     */
          public class HelloServiceClient {

                        public static void main(String[] args) {
                  ApplicationContext context           = new ClassPathXmlApplicationContext("applicationContext-client.xml");
                  IHelloService helloService           = (IHelloService) context.getBean("client");
                  String response           = helloService.sayHello("Peter");
                  System.out.println(response);
              }

          }

          applicationContext-server.xml
          <?xml version="1.0" encoding="UTF-8"?>
          <beans xmlns="http://www.springframework.org/schema/beans"
              xmlns:xsi          ="http://www.w3.org/2001/XMLSchema-instance"
              xmlns:jaxws          ="http://cxf.apache.org/jaxws"
              xsi:schemaLocation          ="http://www.springframework.org/schema/beans
                                 http://www.springframework.org/schema/beans/spring-beans.xsd
                                 http://cxf.apache.org/jaxws http://cxf.apache.org/schemas/jaxws.xsd"          >
                        <!--
                  ***注意***
                  手動添加的內容：
                  xmlns:jaxws="http://cxf.apache.org/jaxws"
                  http://cxf.apache.org/jaxws http://cxf.apache.org/schemas/jaxws.xsd"
                         -->

                        <import resource="classpath:META-INF/cxf/cxf.xml" />
                        <import resource="classpath:META-INF/cxf/cxf-extension-soap.xml" />
                        <import resource="classpath:META-INF/cxf/cxf-servlet.xml" />

                        <jaxws:endpoint id="helloService" implementor="bing.server.HelloServiceImpl" address="/helloService" />

          </beans>

          applicationContext-client.xml
          <?xml version="1.0" encoding="UTF-8"?>
          <beans xmlns="http://www.springframework.org/schema/beans"
              xmlns:xsi          ="http://www.w3.org/2001/XMLSchema-instance"
              xmlns:jaxws          ="http://cxf.apache.org/jaxws"
              xsi:schemaLocation          ="http://www.springframework.org/schema/beans
                                 http://www.springframework.org/schema/beans/spring-beans.xsd
                                 http://cxf.apache.org/jaxws http://cxf.apache.org/schemas/jaxws.xsd"          >
                        <!--
                  ***注意***
                  手動添加的內容：
                  xmlns:jaxws="http://cxf.apache.org/jaxws"
                  http://cxf.apache.org/jaxws http://cxf.apache.org/schemas/jaxws.xsd"
                         -->

                        <import resource="classpath:META-INF/cxf/cxf.xml" />
                        <import resource="classpath:META-INF/cxf/cxf-extension-soap.xml" />
                        <import resource="classpath:META-INF/cxf/cxf-servlet.xml" />

                        <bean id="client" class="bing.server.IHelloService" factory-bean="clientFactory" factory-method="create" />

                        <bean id="clientFactory" class="org.apache.cxf.jaxws.JaxWsProxyFactoryBean">
                            <property name="serviceClass" value="bing.server.IHelloService" />
                            <property name="address" value="http://localhost:8080/CXFDemo/ws/helloService" />
                        </bean>
          </beans>

          web.xml
          <?xml version="1.0" encoding="UTF-8"?>
          <web-app version="3.0"
              xmlns          ="http://java.sun.com/xml/ns/javaee"
              xmlns:xsi          ="http://www.w3.org/2001/XMLSchema-instance"
              xsi:schemaLocation          ="http://java.sun.com/xml/ns/javaee
              http://java.sun.com/xml/ns/javaee/web-app_3_0.xsd"          >
                      <display-name>CXFDemo</display-name>

                      <context-param>
                          <param-name>contextConfigLocation</param-name>
                          <param-value>classpath:applicationContext-server.xml</param-value>
                      </context-param>

                      <listener>
                        <listener-class>org.springframework.web.context.ContextLoaderListener</listener-class>
                      </listener>

                      <servlet>
                        <servlet-name>CXFServlet</servlet-name>
                        <display-name>CXFServlet</display-name>
                        <servlet-class>org.apache.cxf.transport.servlet.CXFServlet</servlet-class>
                        <load-on-startup>1</load-on-startup>
                      </servlet>
                      <servlet-mapping>
                        <servlet-name>CXFServlet</servlet-name>
                        <url-pattern>/ws/*</url-pattern>
                      </servlet-mapping>
                      <welcome-file-list>
                        <welcome-file>index.jsp</welcome-file>
                      </welcome-file-list>
          </web-app>

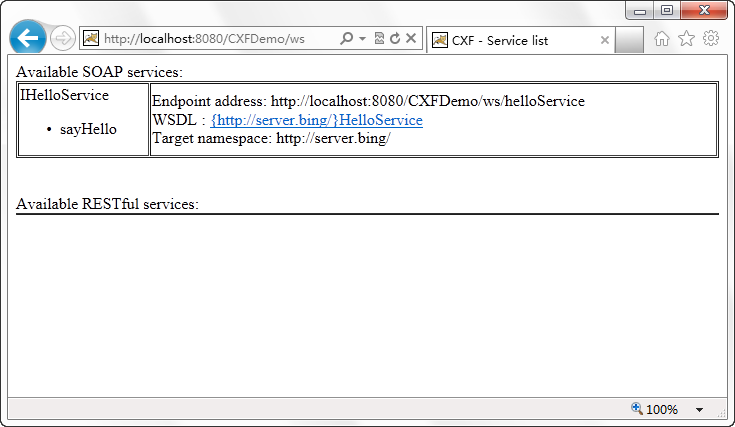

          所有項目都已配置完成，可以發布到Tomcat了，在瀏覽器中輸入：http://localhost:8080/CXFDemo/ws，返回如圖：


          從上圖中可以看到我們對外發布的WebService接口，點擊藍色超鏈接，返回如圖：

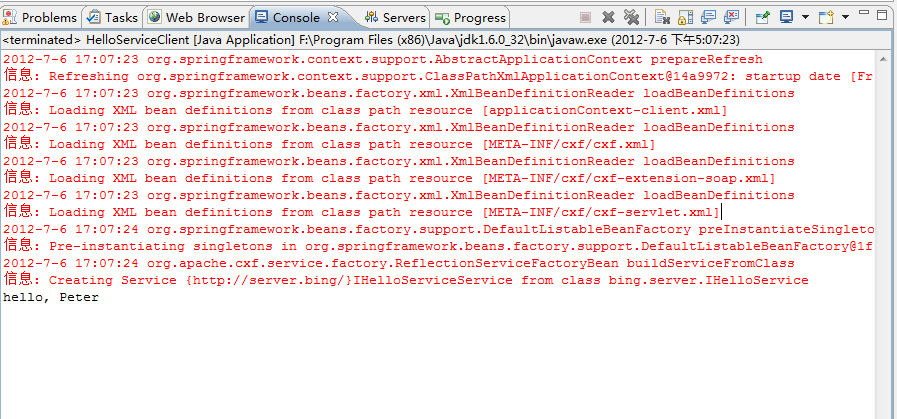

          到此，證明我們的Web Service已經發布成功，可以進行調用測試了。運行HelloServiceClient，返回如圖：


          全文完！
