揭陽topo

去年在揭陽痛苦了三天三夜也沒把拓撲做出來，今天有機會再次在同一環境下測試程序。
與去年相比，產品的成熟度有較大提高。我也基本搞清楚H3C各型號FDB數據的獲取方法。

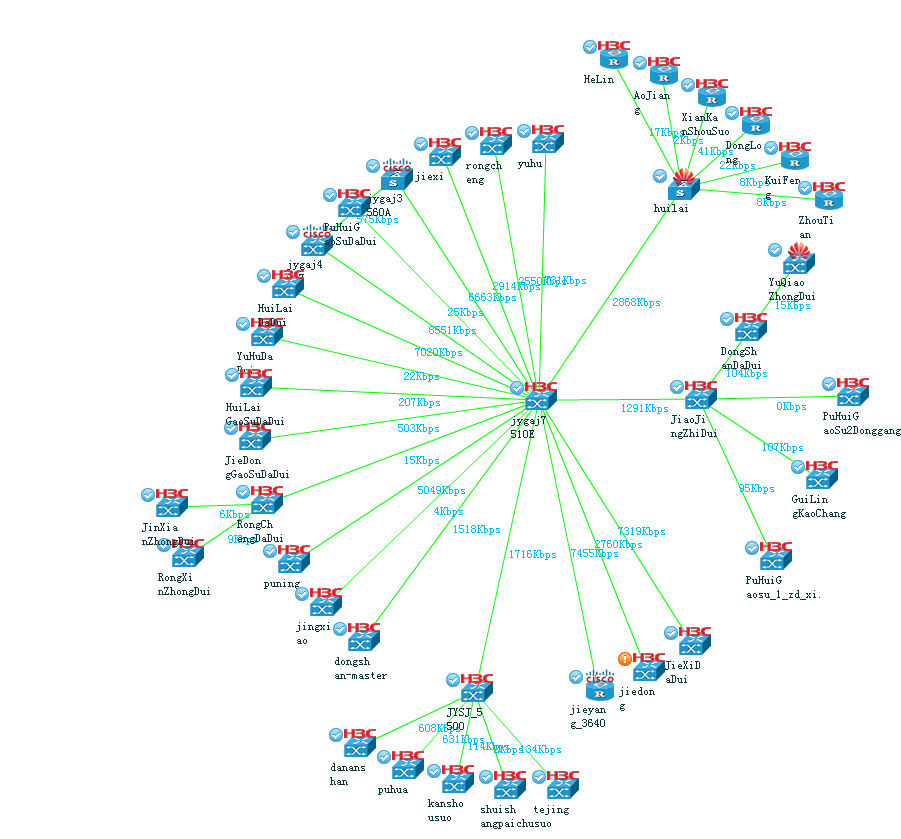

拓撲發現結果
	開始時間	結束時間	耗時
1	2011-07-15 16:01:33	2011-07-15 16:08:03	6分鐘30秒

發現設備
	IP地址	名稱	型號	類型
1	10.46.129.100	jygaj7510E	hh3c-s7510E	路由交換機
2	10.46.129.111	jygaj4507	cat4507	路由交換機
3	10.46.131.146	JieXiDaDui	hh3c-s5500-28C-EI	路由交換機
4	10.46.159.51	JYSJ_5500	hh3c-s5500-28C-EI	路由交換機
5	10.46.131.150	HuiLaiDaDui	hh3c-s5500-28C-EI	路由交換機
6	10.46.131.138	YuHuDaDui	hh3c-s5500-28C-EI	路由交換機
7	10.46.131.193	HuiLaiGaoSuDaDui	hh3c-s5500-28C-EI	路由交換機
8	10.46.131.169	RongChengDaDui	hh3c-s5500-28C-EI	路由交換機
9	10.46.131.190	JiaoJingZhiDui	hh3c-S7503E-S	路由交換機
10	10.46.131.158	JieDongGaoSuDaDui	hh3c-s5500-28C-EI	路由交換機
11	10.46.131.1	DongShanDaDui	hh3c-s5500-28C-EI	路由交換機
12	10.46.131.202	PuHuiGaoSuDaDui	hh3c-s5500-28C-EI	路由交換機
13	10.46.131.118	PuHuiGaoSu2Donggang	hh3c-s5100-24P-SI	路由交換機
14	10.46.131.166	GuiLingKaoChang	hh3c-s5100-24P-SI	路由交換機
15	10.46.130.128	jiedong	hh3c-S7503E-S	路由交換機
16	10.46.131.10	RongXinZhongDui	hh3c-s5100-24P-SI	路由交換機
17	10.46.131.170	JinXianZhongDui	hh3c-s5100-24P-SI	路由交換機
18	10.46.150.96	puning	hh3c-S7503E-S	路由交換機
19	10.46.155.160	huilai	s3328	交換機
20	10.46.157.65	rongcheng	hh3c-s5500-28C-EI	路由交換機
21	10.46.155.130	AoJiang	hh3c-S5120-28P-SI	路由交換機
22	10.46.155.178	KuiFeng	hh3c-S5120-28P-SI	路由交換機
23	10.46.155.226	ZhouTian	hh3c-S5120-28P-SI	路由交換機
24	10.46.155.242	DongLong	hh3c-S5120-28P-SI	路由交換機
25	10.46.156.82	HeLin	hh3c-S5120-28P-SI	路由交換機
26	10.46.155.62	XianKanShouSuo	hh3c-S5120-28P-SI	路由交換機
27	10.46.131.6	YuQiaoZhongDui	s2326TP	路由交換機
28	10.46.136.18	jiexi	hh3c-S7503E-S	路由交換機
29	10.46.131.126	PuHuiGaosu_1_zd_xichang	hh3c-s5100-24P-SI	路由交換機
30	10.46.135.249	jygaj3560A	catalyst3560G24TS	交換機
31	10.46.129.226	jieyang_3640	cisco3640	路由交換機
32	10.46.159.100	puhua	hh3c-s5100-24P-EI	路由交換機
33	10.46.159.40	dananshan	hh3c-s5100-24P-EI	路由交換機
34	10.46.155.210	10.46.155.210	hh3c-S5120-28P-SI	路由交換機
35	10.46.141.64	yuhu	hh3c-s5500-28C-EI	路由交換機
36	10.46.133.64	dongshan-master	hh3c-s5500-28C-EI	路由交換機
37	10.46.149.30	shuishangpaichusuo	hh3c-s5100-24P-EI	路由交換機
38	10.46.146.99	jingxiao	hh3c-s5500-28C-EI	路由交換機
39	10.46.135.44	kanshousuo	hh3c-s5100-24P-EI	路由交換機
40	10.46.135.8	tejing	hh3c-s5100-24P-EI	路由交換機
合計:40臺

發現子網
	子網地址	子網掩碼
1	10.46.128.0	255.255.224.0
2	10.46.128.112	255.255.255.248
3	10.46.128.120	255.255.255.248
4	10.46.128.128	255.255.255.248
5	10.46.128.136	255.255.255.248
6	10.46.128.16	255.255.255.248
7	10.46.128.160	255.255.255.248
8	10.46.128.176	255.255.255.248
9	10.46.128.184	255.255.255.248
10	10.46.128.192	255.255.255.248
11	10.46.128.200	255.255.255.248
12	10.46.128.208	255.255.255.240
13	10.46.128.224	255.255.255.248
14	10.46.128.232	255.255.255.248
15	10.46.128.248	255.255.255.248
16	10.46.128.8	255.255.255.248
17	10.46.129.0	255.255.255.0
18	10.46.130.0	255.255.255.0
19	10.46.131.0	255.255.255.252
20	10.46.131.100	255.255.255.252
21	10.46.131.116	255.255.255.252
22	10.46.131.12	255.255.255.252
23	10.46.131.124	255.255.255.252
24	10.46.131.128	255.255.255.252
25	10.46.131.136	255.255.255.252
26	10.46.131.140	255.255.255.252
27	10.46.131.144	255.255.255.252
28	10.46.131.148	255.255.255.252
29	10.46.131.156	255.255.255.252
30	10.46.131.164	255.255.255.252
31	10.46.131.168	255.255.255.252
32	10.46.131.172	255.255.255.252
33	10.46.131.176	255.255.255.252
34	10.46.131.180	255.255.255.252
35	10.46.131.188	255.255.255.252
36	10.46.131.192	255.255.255.252
37	10.46.131.196	255.255.255.252
38	10.46.131.200	255.255.255.252
39	10.46.131.240	255.255.255.252
40	10.46.131.244	255.255.255.252
41	10.46.131.248	255.255.255.248
42	10.46.131.4	255.255.255.252
43	10.46.131.8	255.255.255.252
44	10.46.131.80	255.255.255.252
45	10.46.131.88	255.255.255.252
46	10.46.131.92	255.255.255.252
47	10.46.131.96	255.255.255.252
48	10.46.132.0	255.255.255.0
49	10.46.133.0	255.255.255.0
50	10.46.134.0	255.255.255.0
51	10.46.135.0	255.255.255.0
52	10.46.135.128	255.255.255.128
53	10.46.135.32	255.255.255.224
54	10.46.135.64	255.255.255.192
55	10.46.136.0	255.255.255.252
56	10.46.136.100	255.255.255.252
57	10.46.136.108	255.255.255.252
58	10.46.136.136	255.255.255.252
59	10.46.136.16	255.255.255.252
60	10.46.136.20	255.255.255.252
61	10.46.136.200	255.255.255.252
62	10.46.136.32	255.255.255.252
63	10.46.137.0	255.255.255.0
64	10.46.138.0	255.255.255.0
65	10.46.139.0	255.255.255.224
66	10.46.139.128	255.255.255.224
67	10.46.139.192	255.255.255.240
68	10.46.139.232	255.255.255.248
69	10.46.139.240	255.255.255.240
70	10.46.139.32	255.255.255.224
71	10.46.139.64	255.255.255.192
72	10.46.140.0	255.255.255.0
73	10.46.141.0	255.255.255.128
74	10.46.141.128	255.255.255.128
75	10.46.142.0	255.255.255.240
76	10.46.142.128	255.255.255.224
77	10.46.142.16	255.255.255.240
78	10.46.142.160	255.255.255.224
79	10.46.142.192	255.255.255.224
80	10.46.142.224	255.255.255.224
81	10.46.142.32	255.255.255.240
82	10.46.142.64	255.255.255.192
83	10.46.143.0	255.255.255.192
84	10.46.143.128	255.255.255.224
85	10.46.143.160	255.255.255.224
86	10.46.143.192	255.255.255.192
87	10.46.143.64	255.255.255.224
88	10.46.143.96	255.255.255.224
89	10.46.144.0	255.255.255.224
90	10.46.144.112	255.255.255.240
91	10.46.144.128	255.255.255.240
92	10.46.144.144	255.255.255.240
93	10.46.144.160	255.255.255.240
94	10.46.144.176	255.255.255.240
95	10.46.144.224	255.255.255.240
96	10.46.144.240	255.255.255.240
97	10.46.144.64	255.255.255.224
98	10.46.144.96	255.255.255.240
99	10.46.145.0	255.255.255.240
100	10.46.145.128	255.255.255.240
101	10.46.145.144	255.255.255.240
102	10.46.145.16	255.255.255.240
103	10.46.145.160	255.255.255.240
104	10.46.145.176	255.255.255.240
105	10.46.145.192	255.255.255.240
106	10.46.145.208	255.255.255.240
107	10.46.145.224	255.255.255.240
108	10.46.145.32	255.255.255.240
109	10.46.145.48	255.255.255.240
110	10.46.145.64	255.255.255.240
111	10.46.145.80	255.255.255.240
112	10.46.145.96	255.255.255.240
113	10.46.146.0	255.255.255.0
114	10.46.147.0	255.255.255.0
合計:114個

發現鏈路
	名稱
1	jygaj7510E[GigabitEthernet0/0/28]--JieXiDaDui[GigabitEthernet1/0/24]
2	jygaj7510E[GigabitEthernet0/0/24]--JiaoJingZhiDui[GigabitEthernet1/0/39]
3	JiaoJingZhiDui[GigabitEthernet1/0/6]--DongShanDaDui[GigabitEthernet1/0/21]
4	jygaj7510E[GigabitEthernet0/0/26]--JieDongGaoSuDaDui[GigabitEthernet1/0/24]
5	jygaj7510E[GigabitEthernet0/0/30]--RongChengDaDui[GigabitEthernet1/0/24]
6	jygaj7510E[GigabitEthernet0/0/27]--HuiLaiDaDui[GigabitEthernet1/0/24]
7	jygaj7510E[GigabitEthernet0/0/39]--JYSJ_5500[GigabitEthernet1/0/1]
8	jygaj7510E[GigabitEthernet0/0/29]--YuHuDaDui[GigabitEthernet1/0/24]
9	jygaj7510E[GigabitEthernet0/0/25]--HuiLaiGaoSuDaDui[GigabitEthernet1/0/24]
10	jygaj7510E[GigabitEthernet0/0/40]--jygaj4507[GigabitEthernet3/32]
11	jygaj4507[GigabitEthernet3/26]--jieyang_3640[FastEthernet2/0]
12	jygaj7510E[GigabitEthernet0/0/6]--rongcheng[GigabitEthernet1/0/24]
13	jygaj7510E[GigabitEthernet0/0/32]--PuHuiGaoSuDaDui[GigabitEthernet1/0/24]
14	jygaj7510E[GigabitEthernet0/0/4]--jiexi[GigabitEthernet1/0/24]
15	jygaj7510E[GigabitEthernet0/0/7]--yuhu[GigabitEthernet1/0/24]
16	jygaj7510E[GigabitEthernet0/0/5]--dongshan-master[GigabitEthernet1/0/24]
17	jygaj7510E[GigabitEthernet0/0/3]--puning[GigabitEthernet1/0/40]
18	jygaj7510E[GigabitEthernet0/0/1]--jiedong[GigabitEthernet1/0/24]
19	jygaj7510E[GigabitEthernet0/0/13]--jingxiao[GigabitEthernet1/0/24]
20	DongShanDaDui[GigabitEthernet1/0/23]--YuQiaoZhongDui[Vlanif3]
21	huilai[Ethernet0/0/8]--HeLin[GigabitEthernet1/0/24]
22	JYSJ_5500[GigabitEthernet1/0/6]--shuishangpaichusuo[GigabitEthernet1/0/24]
23	JYSJ_5500[GigabitEthernet1/0/3]--puhua[GigabitEthernet1/0/24]
24	JYSJ_5500[GigabitEthernet1/0/5]--tejing[GigabitEthernet1/0/24]
25	RongChengDaDui[GigabitEthernet1/0/22]--RongXinZhongDui[GigabitEthernet1/0/24]
26	JYSJ_5500[GigabitEthernet1/0/2]--dananshan[GigabitEthernet1/0/24]
27	JYSJ_5500[GigabitEthernet1/0/4]--kanshousuo[GigabitEthernet1/0/24]
28	huilai[Ethernet0/0/7]--DongLong[GigabitEthernet1/0/24]
29	huilai[Ethernet0/0/5]--KuiFeng[GigabitEthernet1/0/20]
30	RongChengDaDui[GigabitEthernet1/0/21]--JinXianZhongDui[GigabitEthernet1/0/24]
31	huilai[Ethernet0/0/2]--ZhouTian[GigabitEthernet1/0/24]
32	huilai[Ethernet0/0/3]--10.46.155.210[GigabitEthernet1/0/24]
33	huilai[Ethernet0/0/6]--AoJiang[GigabitEthernet1/0/24]
34	huilai[Ethernet0/0/1]--XianKanShouSuo[GigabitEthernet1/0/24]
35	JiaoJingZhiDui[GigabitEthernet1/0/40]--GuiLingKaoChang[GigabitEthernet1/0/24]
36	jygaj7510E[GigabitEthernet0/0/48]--jygaj3560A[GigabitEthernet0/27]
37	jygaj7510E[GigabitEthernet0/0/2]--huilai[Ethernet0/0/24]
38	JiaoJingZhiDui[GigabitEthernet1/0/8]--PuHuiGaoSu2Donggang[GigabitEthernet1/0/2]
39	JiaoJingZhiDui[GigabitEthernet1/0/7]--PuHuiGaosu_1_zd_xichang[GigabitEthernet1/0/24]
40	jygaj4507[GigabitEthernet3/21]--jygaj3560A[GigabitEthernet0/22]
合計:40條
